August 2015

5-57

Xerox® WorkCentre® 5890 Family

PL 11.90

Parts Lists

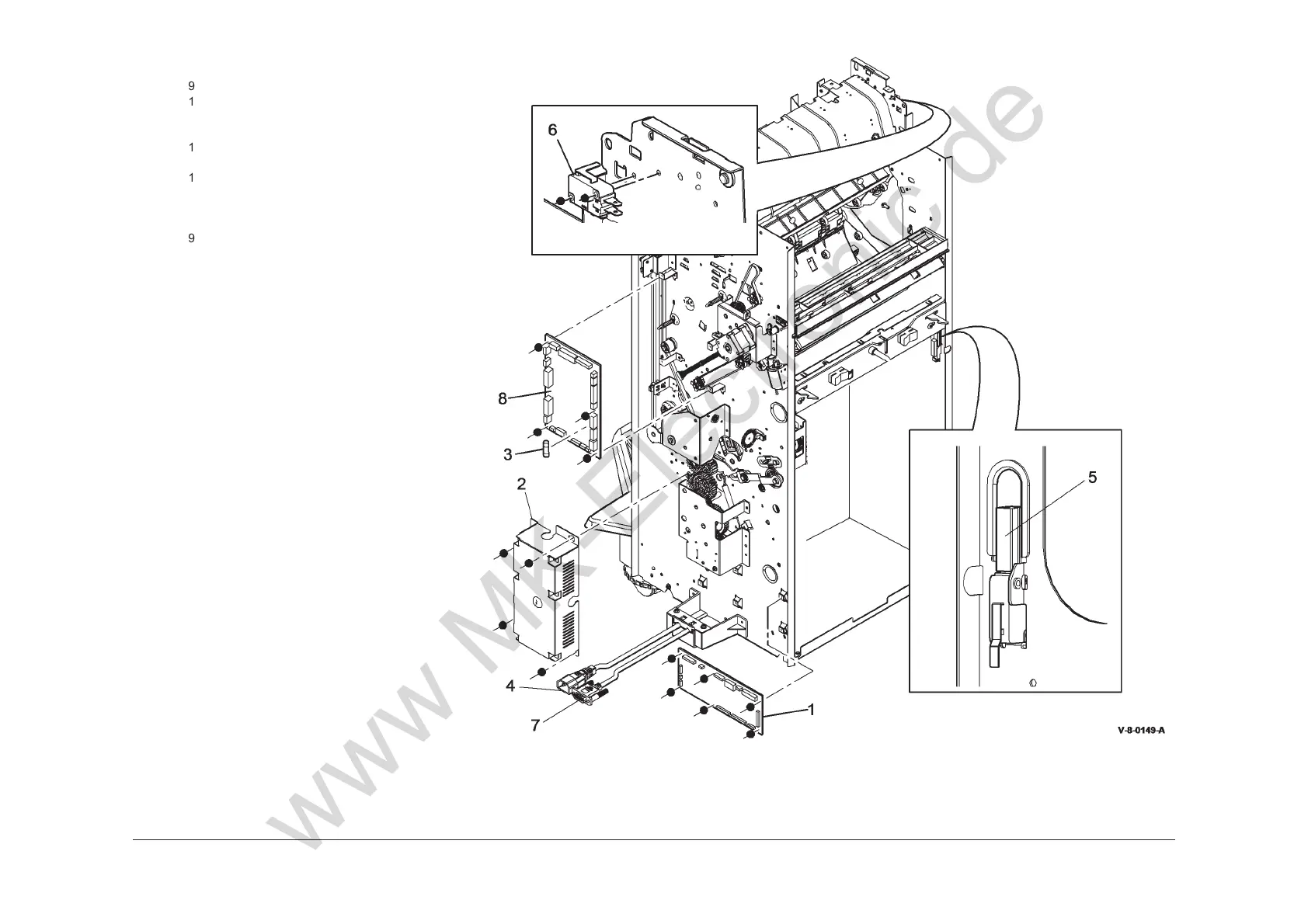

PL 11.90 LVF BM Electrical

Item Part Description

960K73660 LVF BM PWB (REP 11.36-150)

2 105E24900 Power supply module

3 – Fuse (Not Spared)

4 – Power cable (Not Spared)

5 110K13980 Front door interlock switch (S11-

303)

6 110K13970 Top cover interlock switch (S11-

302)

7 – Communications cable (Not

Spared)

8 960K73670 LVF PWB (REP 11.14-150)

www MK-Electronic de

Table of Contents2
PL 1.10 Power and Control Assembly4
PL 1.15 Main Power Cables5
PL 2 - User Interface6
PL 2.10 User Interface6
PL 3.22 Single Board Controller PWB Module7
PL 5.10 SPDH (Complete), Covers, SPDH PWB8
PL 5.17 SPDH Transport Assembly9
PL 5.18 SPDH Drive Assembly10
PL 5.19 SPDH Read Assembly11
PL 5.20 SPDH Top Cover Assembly12
PL 5.25 SPDH Separation Assembly13
PL 5.30 Input Tray Assembly14
PL 10.8 Fuser Module (45-55 Ppm)15
PL 10.10 Fuser Module (65-90 Ppm)16
PL 10.11 Inverter Decurler Assembly (1 of 4)17
PL 10.12 Inverter Decurler Assembly (2 of 4)18
PL 10.13 Inverter Decurler Assembly (3 of 4)19
PL 10.14 Inverter Decurler Assembly (4 of 4)20
PL 10.15 Inverter Drive Gears and Jam Clearance Knobs21
PL 10.25 Short Paper Path Assembly22
PL 11.2 2K LCSS Covers23
PL 11.4 2K LCSS Docking Latch24
PL 11.6 2K LCSS Hole Punch Unit25
PL 11.8 2K LCSS Paddle Wheel/Safety Gate26
PL 11.10 2K LCSS bin 1 Control Components (1 of 2)27
PL 11.12 2K LCSS bin 1 Control Components (2 of 2)28
PL 11.14 2K LCSS Paper Entry Transport29
PL 11.16 2K LCSS Tamper Assembly30
PL 11.18 2K LCSS Ejector Assembly31
PL 11.20 2K LCSS Staple Head Unit/Traverse Assembly32
PL 11.22 2K LCSS bin 0 Entry33
PL 11.23 2K LCSS bin 1 Entry34
PL 11.24 2K LCSS Entry Guide Cover/Jam Clearance Guide35
PL 11.26 2K LCSS Electrical36
PL 11.50 LVF BM - Covers37
PL 11.52 LVF BM Docking Latch38
PL 11.54 LVF BM Hole Punch Unit39
PL 11.56 LVF BM Paddle Shaft Assembly40
PL 11.58 LVF BM bin 1 Control Components (1 of 2)41
PL 11.60 LVF BM bin 1 Control Components (2 of 2)42
PL 11.62 LVF BM Paper Entry Transport43
PL 11.64 LVF BM Tamper Assembly44
PL 11.66 LVF BM Ejector Assembly45
PL 11.68 LVF BM Staple Head Unit/Traverse Assembly46
PL 11.74 LVF BM Booklet Tamper Assembly49
PL 11.75 LVF BM Compiler Entrance Guides50
PL 11.76 LVF BM Compiler Guide Assembly51
PL 11.78 LVF BM Booklet Stapler Assembly52
PL 11.80 LVF BM Back Stop Assembly53
PL 11.82 LVF BM Crease Blade Assembly54
PL 11.84 LVF BM Crease Roll Assembly (1 of 3)55
PL 11.86 LVF BM Crease Roll Assembly (2 of 3)56
PL 11.88 LVF BM Crease Roll Assembly (3 of 3)57
PL 11.90 LVF BM Electrical58
PL 11.100 1K LCSS Covers59
PL 11.102 1K LCSS Docking Latch60
PL 11.104 1K LCSS Paddle Wheel/Safety Gate61
PL 11.106 1K LCSS bin 1 Control Components62
PL 11.110 1K LCSS Paper Entry Transport63
PL 11.112 1K LCSS Tamper Assembly64
PL 11.114 1K LCSS Ejector Assembly65
PL 11.116 1K LCSS Staple Head Assembly66
PL 11.118 1K LCSS bin 0 Entry67
PL 11.120 1K LCSS bin 1 Entry68
PL 11.122 1K LCSS Entry Guide Cover/Jam Clearance Guide69
PL 11.124 1K LCSS Electrical70
PL 11.130 HVF Covers and Docking71
PL 11.135 HVF Stacker72
PL 11.140 HVF Ejector, Pressing and Support (1 of 2)73
PL 11.145 HVF Ejector, Pressing and Support (2 of 2)74
PL 11.150 HVF Main Drives75
PL 11.153 HVF Feed Assembly and Punch (1 of 3)76
PL 11.155 HVF Feed Assembly and Punch (2 of 3)77
PL 11.156 HVF Feed Assembly and Punch (3 of 3)78
PL 11.157 HVF Power and Control79
PL 11.160 HVF BM Module (Complete)80
PL 11.161 HVF BM Entry and81
PL 11.162 HVF BM Tamper Assembly82
PL 11.163 HVF BM Back Stop Motor83
PL 11.164 HVF BM Back Stop Assembly84
PL 11.165 HVF BM Crease Blade Motor85
PL 11.166 HVF BM Crease Rolls Motor and PWB86
PL 11.167 HVF BM Crease Rolls and Support Leg87
PL 11.168 HVF BM Stapler Assemblies88
PL 11.169 HVF BM bin 289
PL 11.175 Inserter Covers90
PL 11.177 Inserter Main Drives (1 of 3)91
PL 11.179 Inserter Main Drives (2 of 3)92
PL 11.181 Inserter Main Drives (3 of 3)93
PL 11.193 Tri-Folder Drives Module95
PL 11.195 Tri-Folder Top Door Cover Assembly96
PL 11.197 Tri-Folder Main Drives Assembly97
Pl 12.10 Oct98
PL 17.00 Secure Access Additions99
PL 26.11 Consumables and Tools (2 of 2)103
PL 28.10 Main Covers104
PL 28.11 Front Door Assembly (65-90 Ppm)105
PL 28.15 Covers106
PL 31.11 Maintenance/Installation/Removal Kits (1 of 4)107
PL 31.12 Maintenance/Installation/Removal Kits (2 of 4)108
PL 31.13 Maintenance/Installation/Removal Kits (3 of 4)109
PL 31.14 Maintenance/Installation/Removal Kits (4 of 4)110
PL 31.35 Line 1 Fax Kits111
PL 31.40 Line 2 Fax Kits112
- PL 40.10 Main Drive Module (65-90 Ppm) (1 of 2)113
- PL 40.12 Main Drive Module (65-90 Ppm) (2 of 2)114
PL 40.15 Main Drive Module (45-55 Ppm) (1 of 2)115
PL 40.17 Main Drive Module (45-55 Ppm) (2 of 2)116
- Pl 60.10 Ros117
- PL 60.15 Scanner Module, Cvt/Document Glass118
- PL 60.25 Scan Carriage Assembly119
- PL 60.20 Scanner Electrical Components119
- PL 60.30 Side 2 Scan Assembly121
- PL 70.10 Tray 1 and 2 Assembly122
- PL 70.18 Tray 3 and 4 Assembly (1 of 2)123
- PL 70.19 Tray 3 and 4 Assembly (2 of 2)124
- PL 70.21 Elevator Motor and Control PWB125
- PL 70.26 Tray 3 and 4 Assembly Covers126
PL 70.30 Bypass Tray and Left Door Assembly127
PL 70.40 Stand Assembly128
PL 70.60 Tray 6 Covers129
PL 70.62 Tray 6 Base130
- PL 70.64 Tray 6 Guides131
- PL 70.68 Tray 6 Lift Assembly (1 of 2)132
PL 70.70 Tray 6 Lift Assembly (2 of 2)133
PL 80.15 Registration Transport (45-55 Ppm)134
- PL 80.17 Registration Transport (65-90 Ppm)135
- PL 80.20 Duplex Transport (65-90 Ppm)136
- PL 80.22 Duplex Transport (45-55 Ppm)137
- PL 80.25 Tray 1 and 2 Paper Feed Assembly (1 of 2)138
PL 80.26 Tray 1 and 2 Paper Feed Assembly (2 of 2)139
- PL 80.32 Tray 3 Paper Feed Assembly140
- PL 80.33 Tray 4 Paper Feed Assembly141
- PL 80.36 Tray 3 Transport Assembly142
- PL 80.40 Tray 6 Feed Assembly (1 of 3)143
- PL 80.45 Tray 6 Feed Assembly (2 of 3)144
- PL 80.47 Tray 6 Feed Assembly (3 of 3)145
- PL 90.10 Waste Toner Bottle Assembly146
- PL 90.15 Developer Assembly (65-90 Ppm)147
- PL 90.17 Developer Assembly (45-55 Ppm)148
- PL 90.20 Xerographic Module and Short Paper Path Assembly149
- PL 90.25 Ozone Fan and Photoreceptor Fan150
- Common Hardware151
