Xerox WorkCentre 5890 User Manual

August 2015
5-82
Xerox® WorkCentre® 5890 Family
PL 11.163
Parts Lists

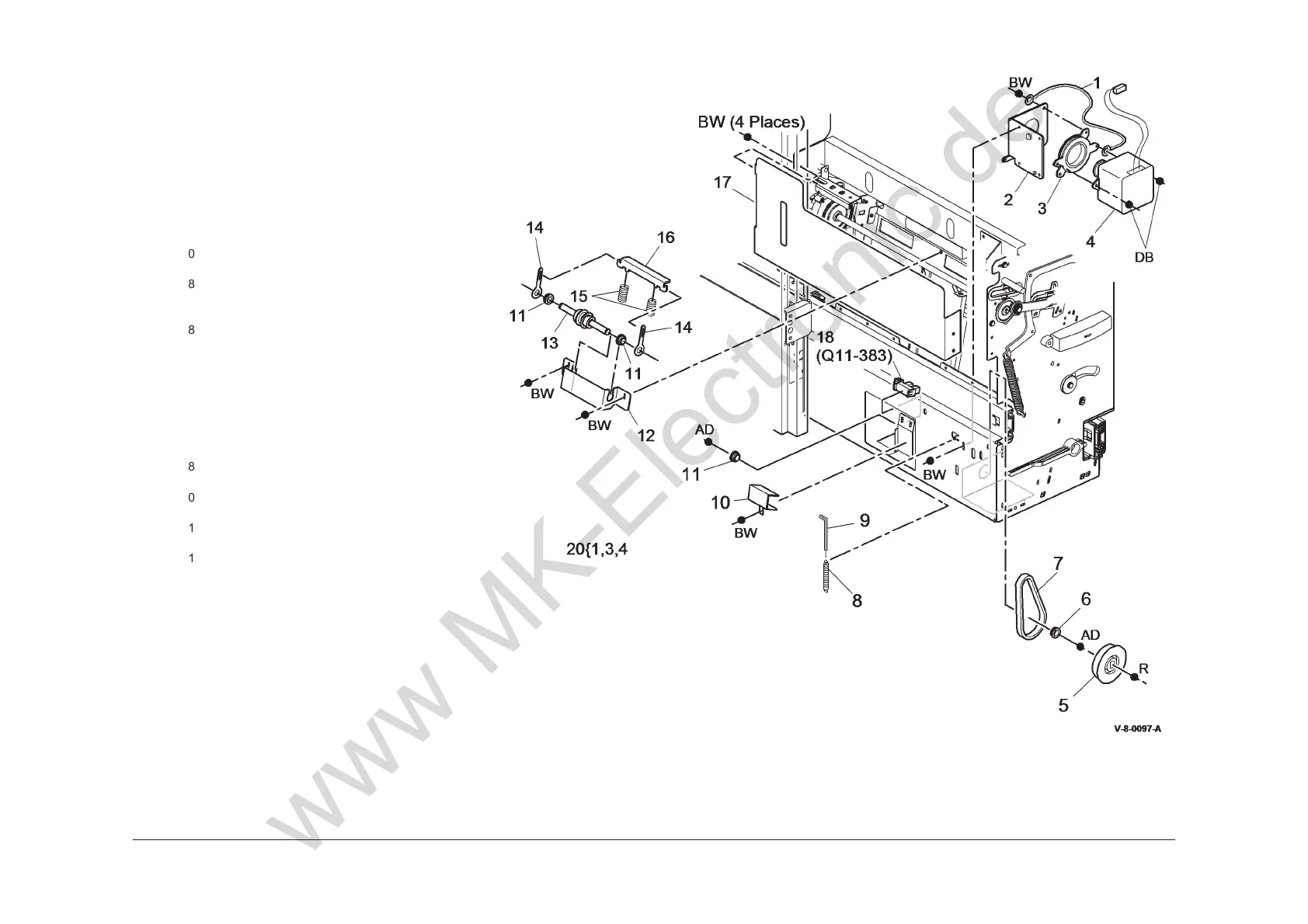

PL 11.163 HVF BM Back Stop Motor
Item Part Description
1
– Ground wire (P/O PL 11.163 Item
20)
2 – Motor bracket (Not Spared)
3 – Motor damper (P/O PL 11.163 Item
20) (REP 11.20-171)
4 – BM back stop motor (MOT11-065)
(P/O PL 11.163 Item 20) (REP
11.20-171)
5 – Pulley (Not Spared)
6 – BM back stop bearing (Not Spared)
(REP 11.26-171)
7 023E23300 BM back stop drive belt (REP
11.20-171)
8 809E78370 BM back stop tensioner spring
(REP 11.20-171)
9 – Allen key (3mm) (Not Spared)
10 802E59180 Sensor cover
11 – BM back stop bearing (Not Spared)
(REP 11.26-171)
12 – BM back stop idler bracket (Not
Spared) (REP 11.26-171)
13 – BM back stop idler shaft (Not
Spared)
14 – BM back stop tensioner link (Not
Spared)
15 809E25100 BM back stop link spring (REP
11.26-171)
16 012E20870 BM back stop link (REP 11.26-171)
17 – LH frame plate (Not Spared)
18 107E22600 BM guide home sensor (Q11-383)
19 – Not used
20 127K54710 BM back stop motor assembly
(REP 11.20-171)
