August 2015
5-116
Xerox® WorkCentre® 5890 Family
PL 60.10
Parts Lists

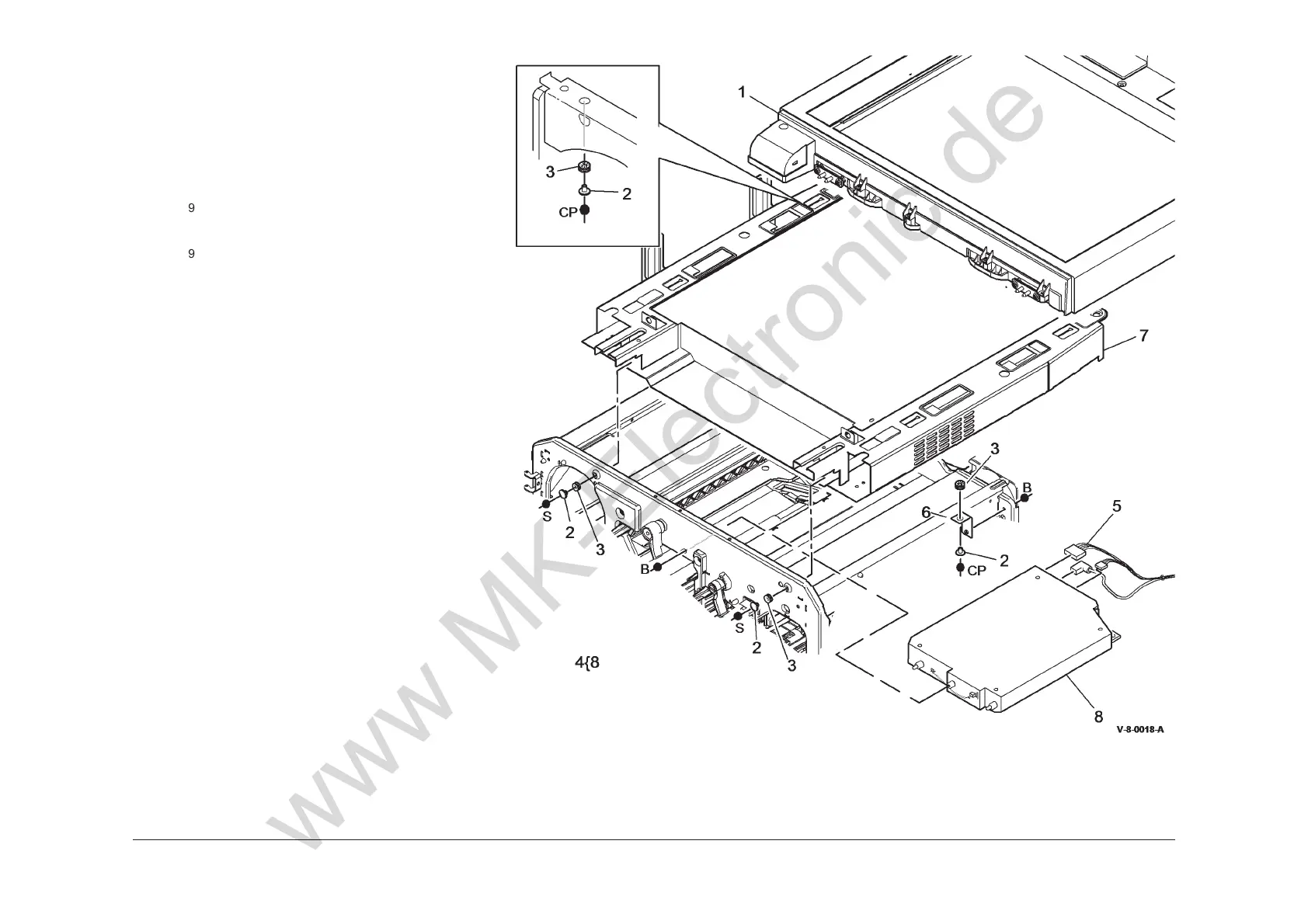

PL 60.10 ROS
Item Part Description
1
Scanner module (REF: PL 60.15
Item 1)
2 Spacer (Not Spared)
3 Grommet (Not Spared)
4 ROS spares kit (REF: PL 31.11
Item 12) (45-55 ppm)
ROS spares kit (REF: PL 31.11
Item 12) (65-90 ppm)
5 952K43150 ROS Power distribution/
Communication harness (45-55
ppm)
952K43160 ROS Power distribution/
communication harness (65-90
ppm)
6 Scanner frame securing bracket
(Not Spared)
7 Scanner module mounting frame
(Not Spared) (REP 60.16)
8 ROS (P/O PL 60.10 Item 4) (REP
60.15)
