Xerox® WorkCentre® 5890 Family
PL 90.20
Parts Lists

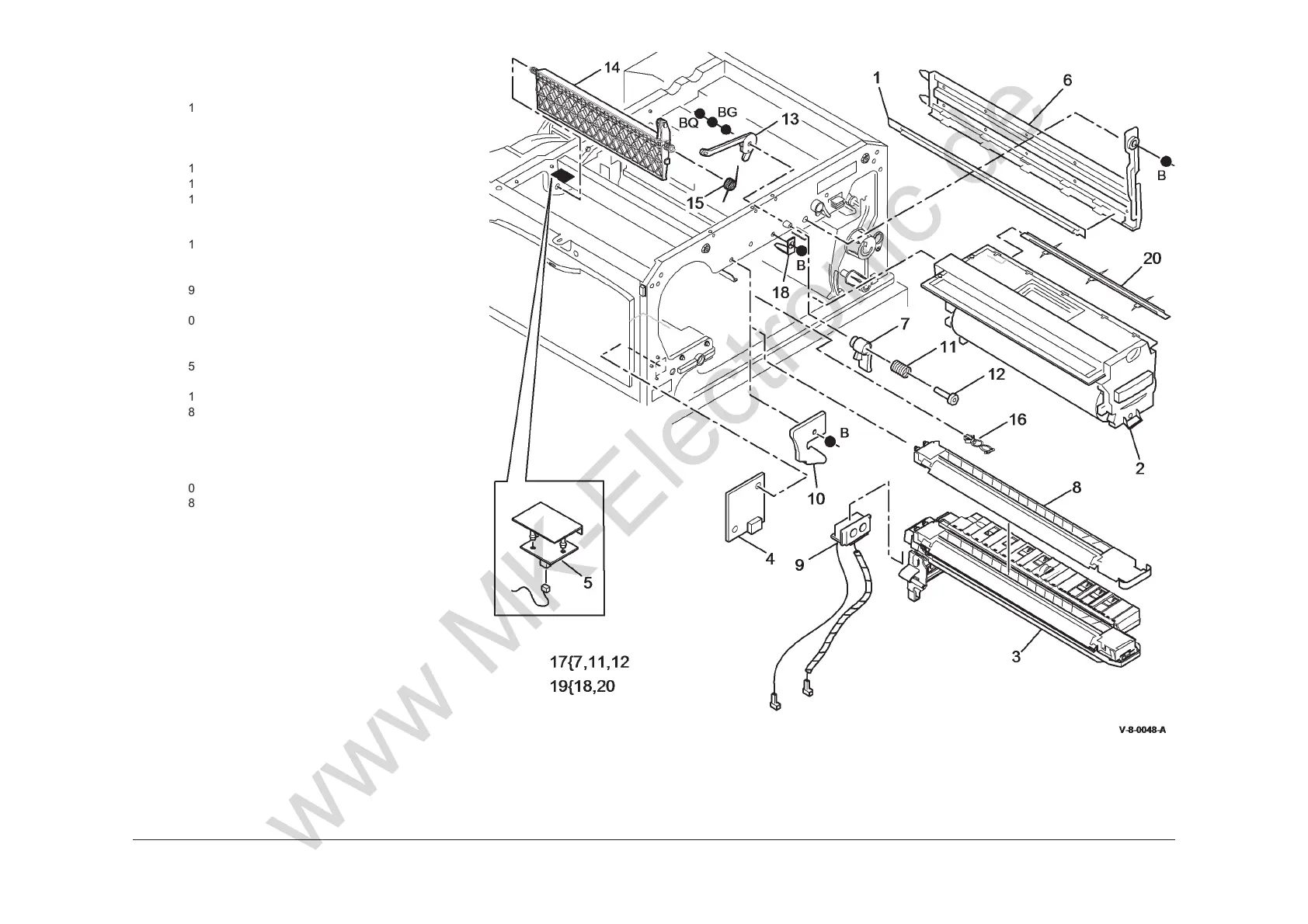

PL 90.20 Xerographic Module and
S
hort Paper Path Assembly
Item Part Description
1
122K02660 Erase lamp (REP 90.9)
2 – Xerographic module (see below for
variants, see also NOTE 1, NOTE 2
and NOTE 3)
– 113R00672 Metered (USSG/XCL/XE)
– 113R00673 Sold (XE)
– 113R00674 Sold (USSG/XCL)
3 – Short paper path assembly (REF:
PL 10.25 Item 1) (NOTE 1)
4 130E10510 Humidity sensor (Q91-601)/
Ambient temperature sensor (Q91-
602)
5 960K40570 Developer temperature sensor
(Q92-602)
6 055E68280 Erase lamp support
7 – Xerographic module latch (P/O PL
90.20 Item 17) (REP 90.6)
8 504K12320 Transfer/Detack corotron (NOTE 1)
(ADJ 90.1)
9 113K03330 Transfer/Detack harness
10 815E79891 Pivot plate
11 – Latch spring (P/O PL 90.20 Item
17)
12 – Latch pin (P/O PL 90.20 Item 17)
13 – Latch plate (Not Spared)
14 031E11102 Developer paddle (REP 90.7)
15 809E69220 Spring
16 – Curly clip (Not Spared)
17 – Developer latch pin kit (REF: PL
31.12 Item 8) (REP 90.6)
18 – Bracket stabiliser (P/O PL 90.20
Item 19)
19 – XRU skids kit (REF: PL 31.13 Item
16)
20 – Stripper finger assembly (P/O PL
90.20 Item 19)
NOTE: 1. A transfer/detack corotron PL 90.20 Item 8 is
supplied with the xerographic module.
NOTE: 2. For the charge scorotron and the charge scorotron
grid harnesses, refer to PL 40.17 or PL 40.12.
