Xerox WorkCentre 5890 User Manual

August 2015
5-84
Xerox® WorkCentre® 5890 Family
PL 11.165
Parts Lists

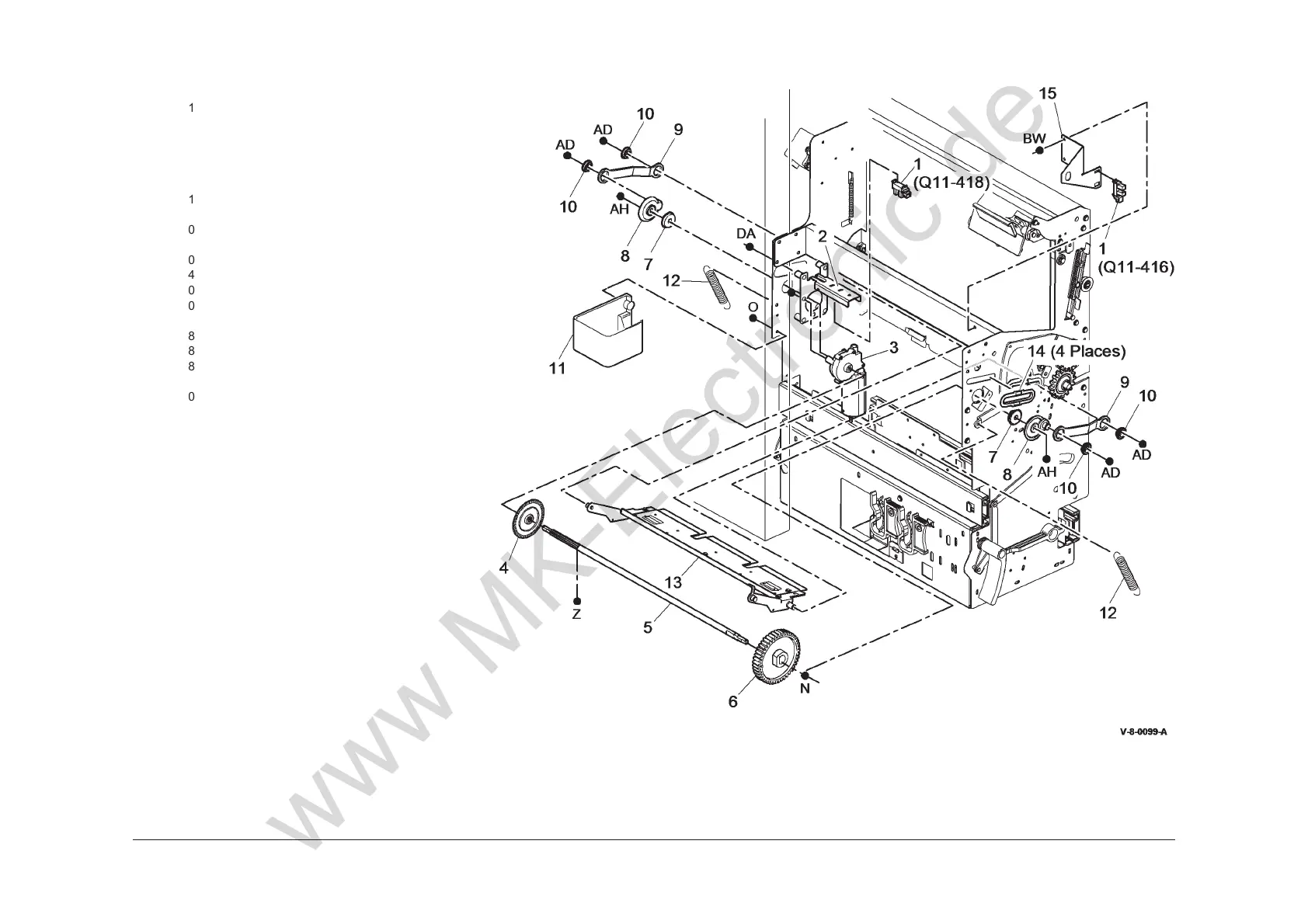

PL 11.165 HVF BM Crease Blade
M
otor
Item Part Description
1
107E22600 BM Crease blade motor encoder
sensor (Q11-418), BM Crease
blade home sensor (Q11-416) (Not
Spared) (REP 11.18-171)
2 – Motor bracket (P/O PL 11.165 Item
3)
3 127K54690 BM Crease blade motor assembly
(MOT11-061) (REP 11.18-171)
4 014E47460 Motor encoder (REP 11.18-171)
5 – Drive shaft (Not Spared)
6 007E69830 Drive gear
7 413W30654 Bearing (REP 11.18-171)
8 008E08220 Crank (REP 11.18-171)
9 012E20860 Connecting rod (REP 11.36-171)
10 – Bearing (Not Spared)
11 802E59171 Motor cover
12 809E42861 Crease nip spring (REP 11.58-171)
13 815K11660 Crease blade assembly (REP
11.36-171)
14 032E19330 Crease blade support guide (REP
11.36-171)
15 – Crease blade home sensor bracket
(Not Spared)
