Xerox WorkCentre 5890 User Manual

August 2015
5-146
Xerox® WorkCentre® 5890 Family
PL 90.15
Parts Lists

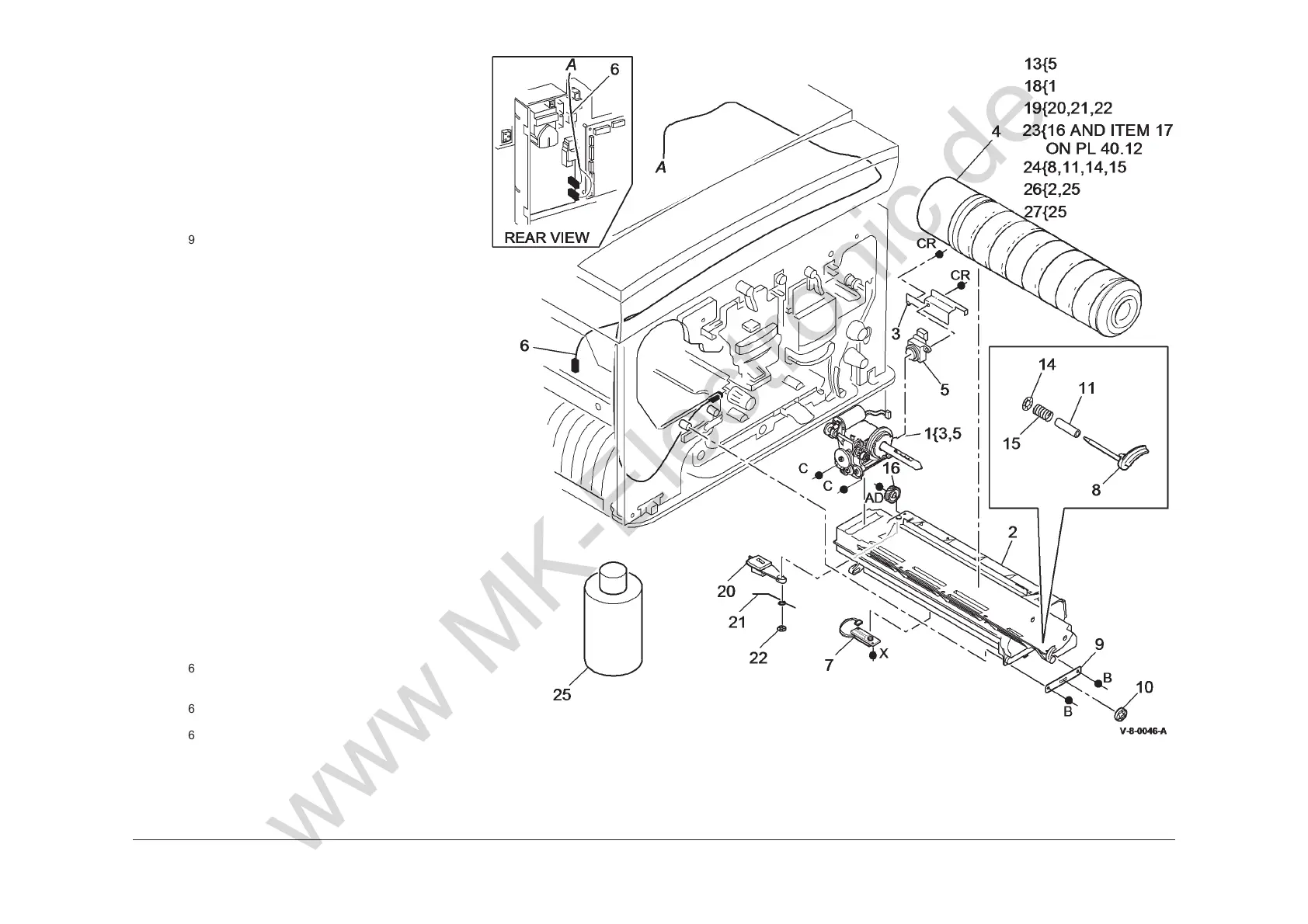

PL 90.15 Developer Assembly (65-90
p
pm)
Item Part Description
1
– Toner dispense module (P/O PL
90.15 Item 18) (REP 90.5)
2 – Developer module (P/O PL 90.15
Item 26) (REP 90.2)
3 – Retaining bracket (P/O PL 90.15
Item 1)
4 – Toner cartridge (REF: PL 26.11
Item 3) (See NOTE 1)
5 – Low toner sensor (Q93-310) (P/O
PL 90.15 Item 13)
6 962K25641 Registration/Developer bias
harness
7 – Toner concentration sensor (Q92-
601) (P/O PL 90.15 Item 2)
8 – Toner cartridge latch (P/O PL 90.15
Item 24)
9 – Retaining plate (P/O PL 90.15 Item
2)
10 – Speed nut (P/O PL 90.15 Item 2)
11 – Sleeve (P/O PL 90.15 Item 24)
12 – Not used
13 – Out of toner sensor kit (REF: PL
31.13 Item 8)
14 – Push on fastener (P/O PL 90.15
Item 24)
15 – Spring (P/O PL 90.15 Item 24)
16 – Main drive gear (P/O PL 90.15 Item
23) (See NOTE 2)
17 – Not used
18 – Toner dispense module kit (REF:
PL 31.12 Item 1)
19 – Trickle outlet shutter kit (REF: PL
31.12 Item 3)
20 – Shutter assembly (P/O PL 90.15
Item 19)
21 – Shutter spring (P/O PL 90.15 Item
19)
22 – Push on fastener (P/O PL 90.15
Item 19)
23 – Developer/Drives interface kit
(REF: PL 31.13 Item 12) (See
NOTE 2)
24 604K18510 Developer latch repair kit
25 – Developer material (P/O PL 90.15
Item 26, PL 90.15 Item 27)
26 604K84580 Developer spares kit (includes
developer)
27 604K84590 Developer charge kit
NOTE: 1. A waste toner bottle, PL 90.10 Item 1 is supplied
with the toner cartridges.
NOTE: 2. The main drive gear PL 90.15 Item 16 and
developer drive gear/pulley PL 40.12 Item 17, must always
be replaced as a pair.
