Features
WorkCentre 7800 Series Multifunction Printer 23
User Guide

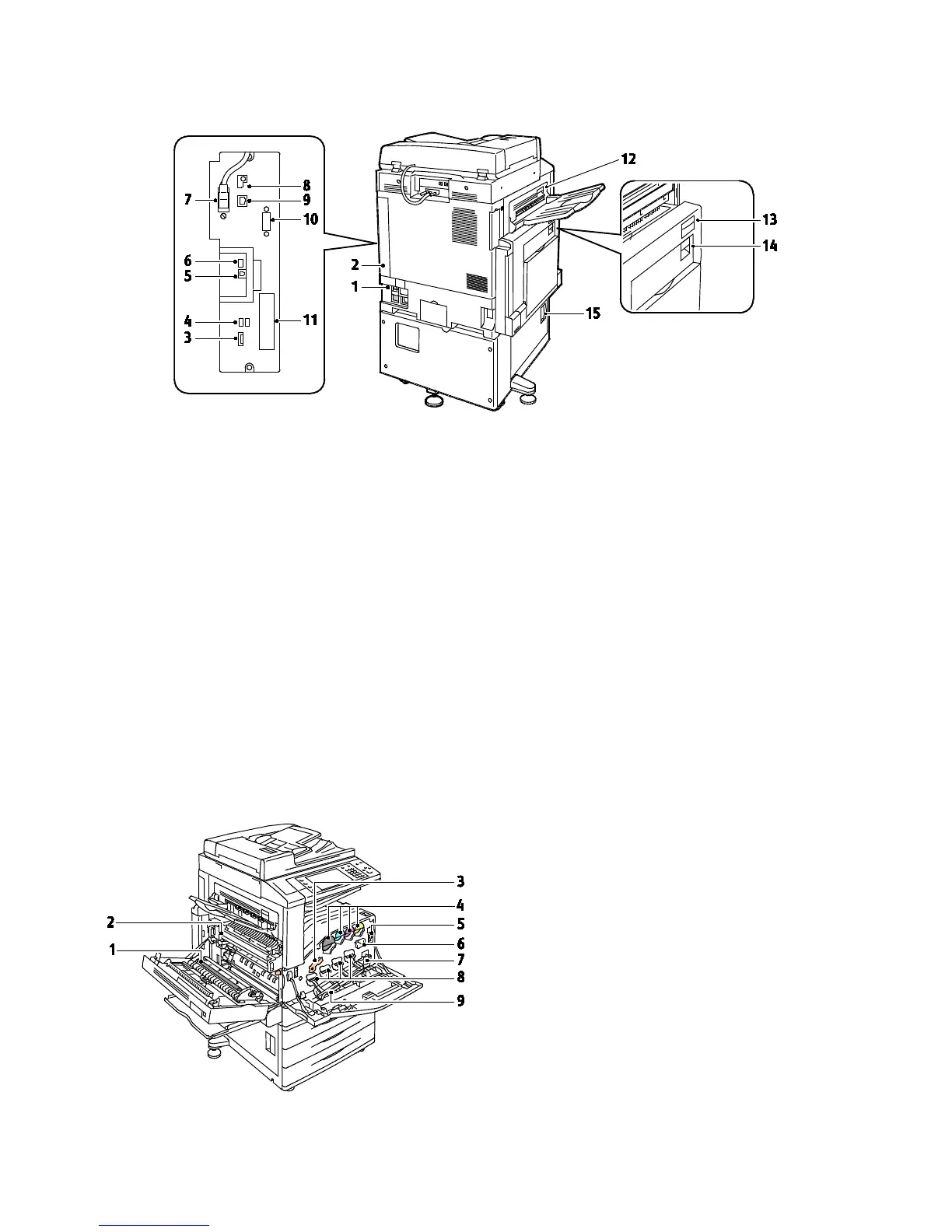

Left Rear View
1. Circuit Breaker
2. Rear Right Cover
3. USB Memory Card Connections
4. USB Port, Type A
5. USB Port, Type B
6. Status Indicator
7. Side 2 Scan Cable
8. USB Memory Port, for service only
9. Ethernet Connection
10. Foreign Device Interface
11. Fax Connections (optional)
12. Door D Release Lever
13. Door A Release Lever
14. Door B Release Lever
15. Door C Release Lever
Notes:
• The side 2 scan cable is present only on specific printer models.
• Ensure that the rear right cover is attached. Open this cover when connecting an interface
cable.
Internal Components
1. Second Bias Transfer Roller
2. Fuser Assembly
3. Drum Cartridge Release Lever
4. Toner Cartridges
5. Main Power Switch
6. Transfer Belt Cleaner
7. Waste Container
8. Drum Cartridges
9. Drum Cartridge Cover
