Paper and Media
WorkCentre 7800 Series Multifunction Printer 59
User Guide
Loading Paper in Tray 5 (Bypass Tray)
The bypass tray supports the widest variety of media types. It is primarily intended for small quantity
jobs using special media. The tray extension provides support for larger paper.
Notes:
• For faster print speeds, load paper 320 mm (12.6 in.) or shorter with the long edge going into the
printer (LEF).
• Load paper longer than 320 mm (12.6 in.) with the short edge going into the printer (SEF).
• Load hole punched paper with the holes on the trailing edge (left).
• Do not load paper above the maximum fill line.

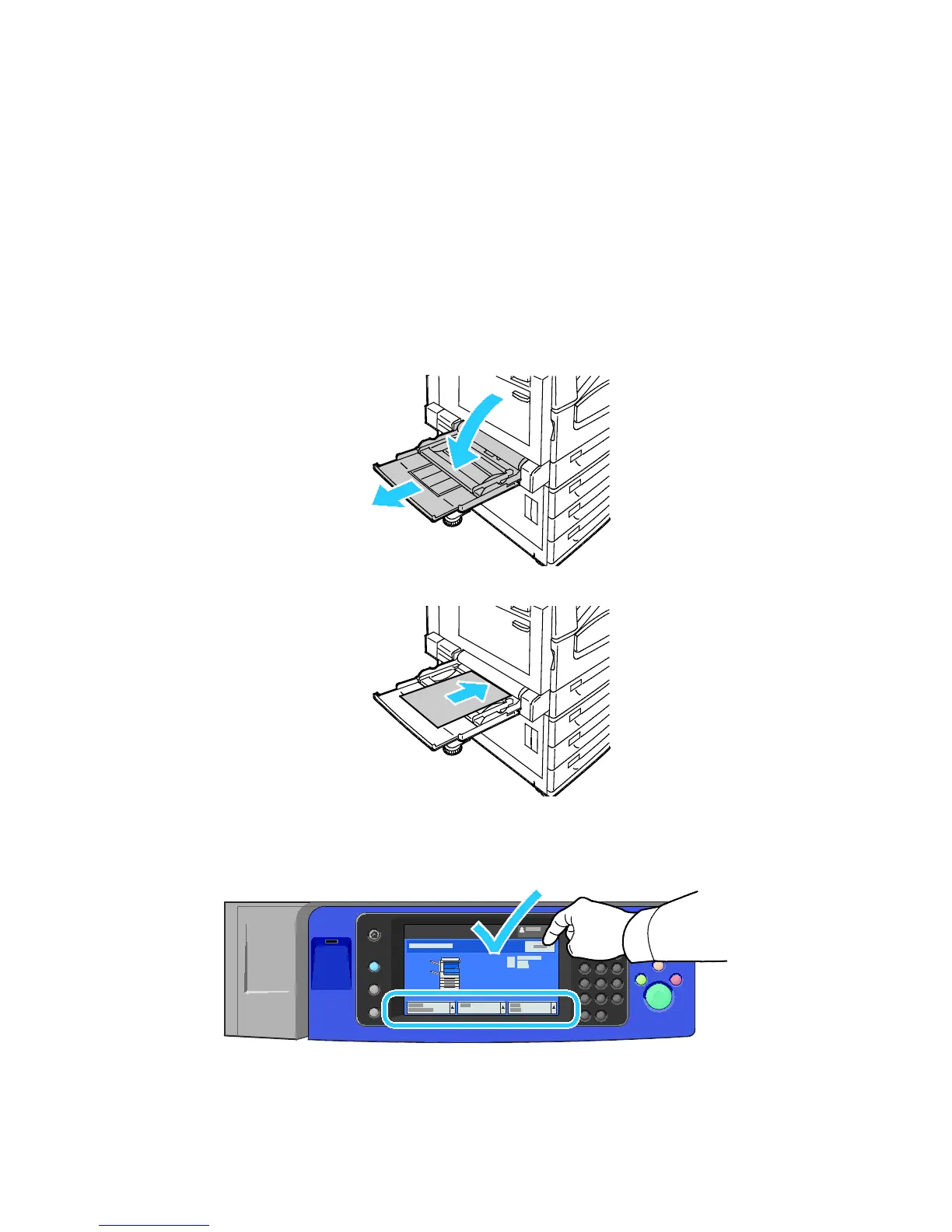

1. Open the bypass tray by rotating it outward.
2. Insert the paper either long edge or short edge first.
3. Center the paper, then slide the guides until they are just touching the edges of the stack.
4. Verify the size, type, and color of the paper. Change the selection for any incorrect setting.
5. On the printer touch screen, touch Confirm.
