Xilinx ZCU111 User Manual

ZCU111 Board User Guide 7
UG1271 (v1.1) August 6, 2018 www.xilinx.com
Chapter 1: Introduction
Block Diagram

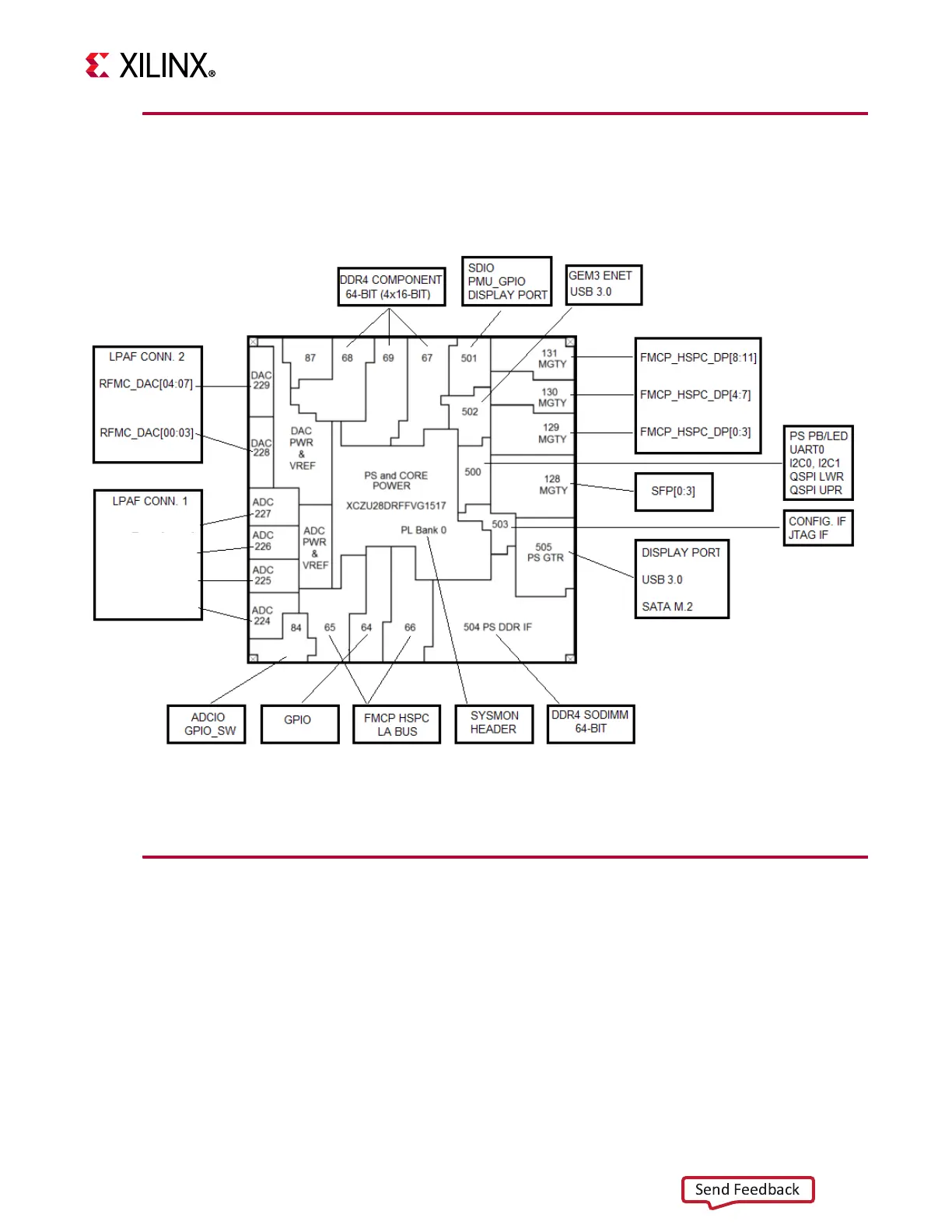

The ZCU111 board block diagram is shown in Figure 1-1.
Board Features
The ZCU111 evaluation board features are listed here. Detailed information for each feature
is provided in Board Component Descriptions in Chapter 3.
• XCZU28DR-2E, FFVG1517 package
• Form factor: rectangular 11.811 in. x 7.874 in. x 0.1 in.
• Configuration from:
°
Dual Quad SPI
X-Ref Target - Figure 1-1
Figure 1-1: ZCU111 Evaluation Board Block Diagram
RFMC_ADC[06:07]
RFMC_ADC[00:01]
RFMC_ADC[04:05]
RFMC_ADC[02:03]
X21110-062118
Send Feedback

Xilinx ZCU111 Specifications

General

Manufacturer	Xilinx
Model	ZCU111
Form Factor	ATX
Processor	Quad-core ARM Cortex-A53
FPGA	Xilinx Zynq UltraScale+ RFSoC
Memory	4GB DDR4
Power Supply	12V DC input
Storage	microSD slot
Connectivity	Gigabit Ethernet, USB 3.0, USB 2.0
Expansion	FMC
RFSoC	Yes
