■ CE Standards Compliance for DC Power Supply Input
To comply with CE Standards, install a fuse for the DC power supply input.

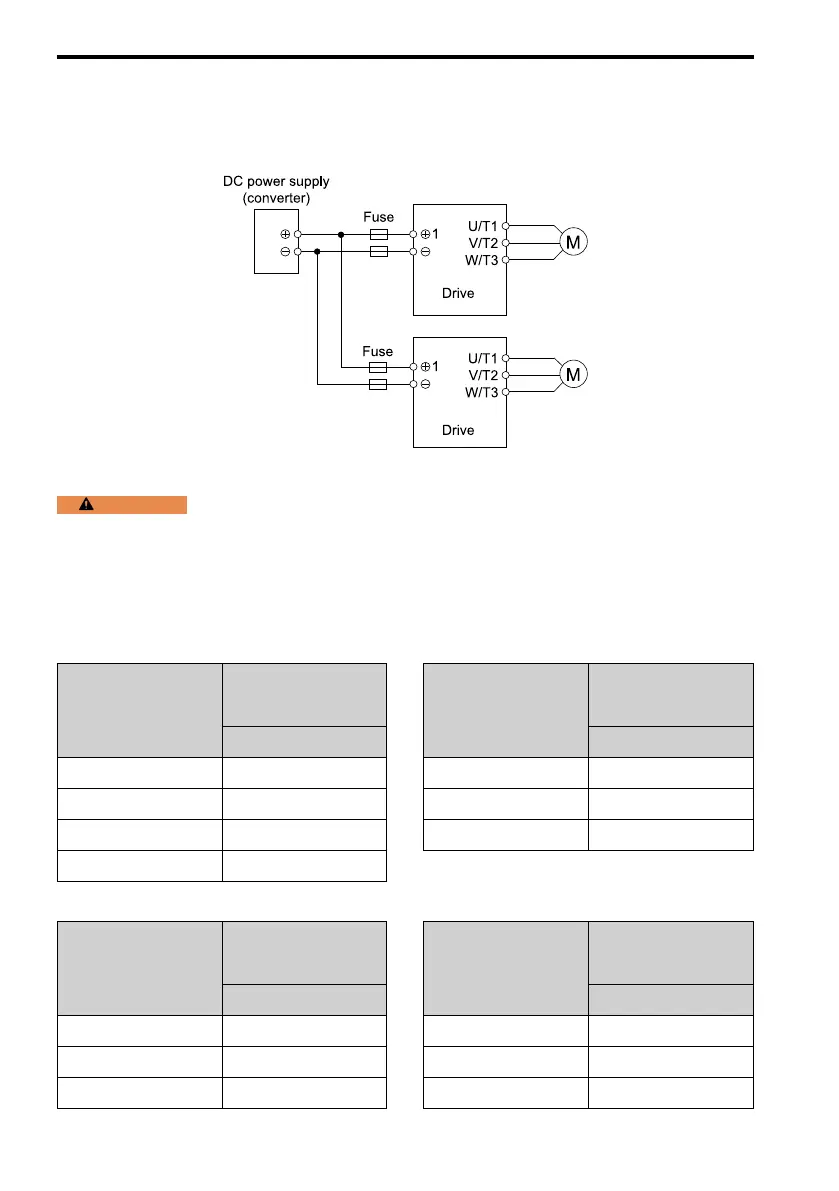

Figure 14.3 shows a wiring example for a DC power supply that has two drives connected in
parallel.
Figure 14.3 Wiring Example for DC Power Supply Input
WARNING
Electrical Shock Hazard. Do not ground the main circuit bus. Incorrect wiring can cause
serious injury or death.
Note:
• Install a fuse for each drive when operating more than one drive. If one fuse blows, replace all fuses.
• Install the external filter (system) to comply with the EMC Directive.
Refer to Table 14.6, Table 14.7, and Table 14.8 for the recommended fuses.
Table 14.6 Recommended Fuse: Single-Phase 200 V Class
Drive Model
Fuse
Manufacturer:
Bussmann
Model
B001 FWH-25A14F
B002 FWH-25A14F
B004 FWH-60B
B006 FWH-80B
Drive Model
Fuse
Manufacturer:
Bussmann
Model
B010 FWH-100B
B012 FWH-125B
B018 FWH-150B
Table 14.7 Recommended Fuse: Three-Phase 200 V Class
Drive Model
Fuse
Manufacturer:
Bussmann
Model
2001 FWH-25A14F
2002 FWH-25A14F
2004 FWH-25A14F
Drive Model
Fuse
Manufacturer:
Bussmann
Model
2006 FWH-25A14F
2010 FWH-70B
2012 FWH-70B
