7 Mechanical Installation
YASKAWA TOEPC71061752B GA500 Drive Installation & Primary Operation 31
A - Front cover lock

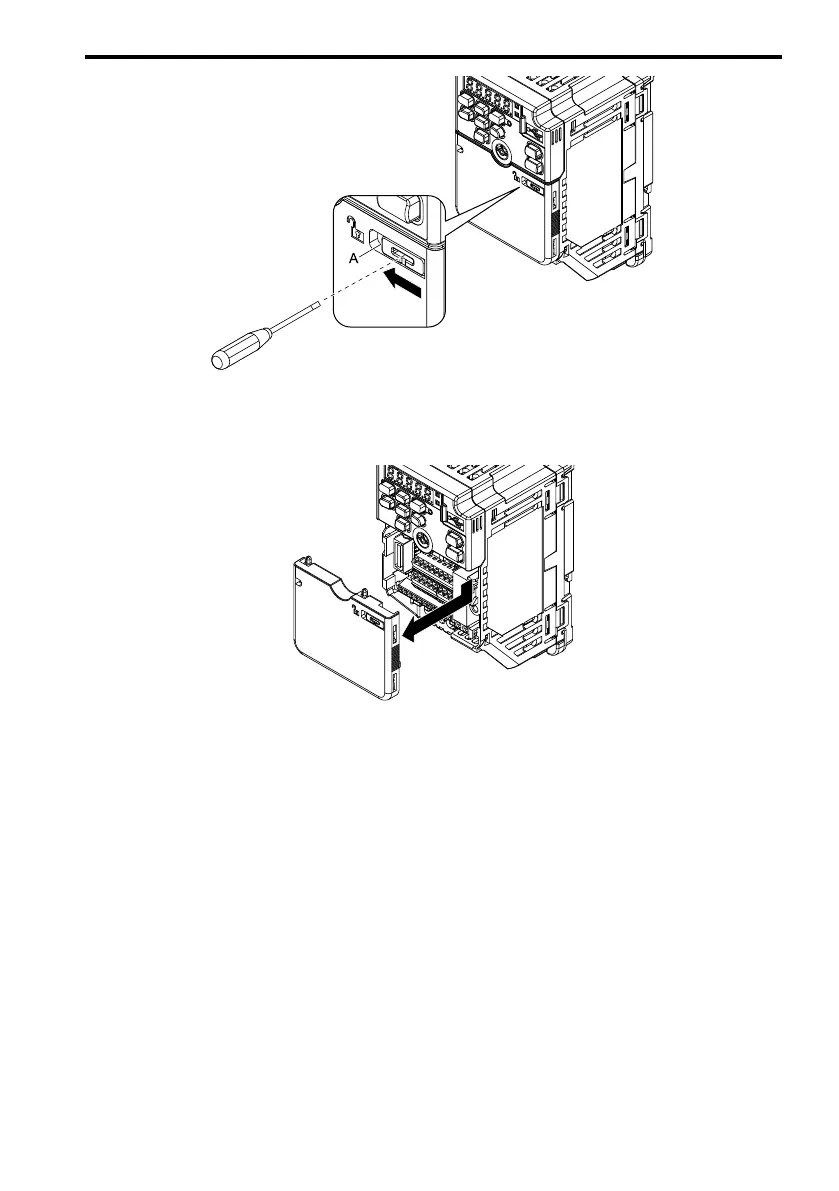

Figure 7.7 Unlocking
2. Pull down, then pull away from the drive to remove the front cover.
Figure 7.8 Remove the Front Cover
■ Reattach the Front Cover
1. Reverse the steps to reattach the cover.
Note:
Make sure that you do not pinch wires or signal lines between the front cover and the drive before you
reattach the cover.
