This chapter gives information about the correct environment and clearances to install the drive.
◆ Drive Exterior and Mounting Dimensions
■ IP20/UL Open Type
B001 to B004, 2001 to 2006

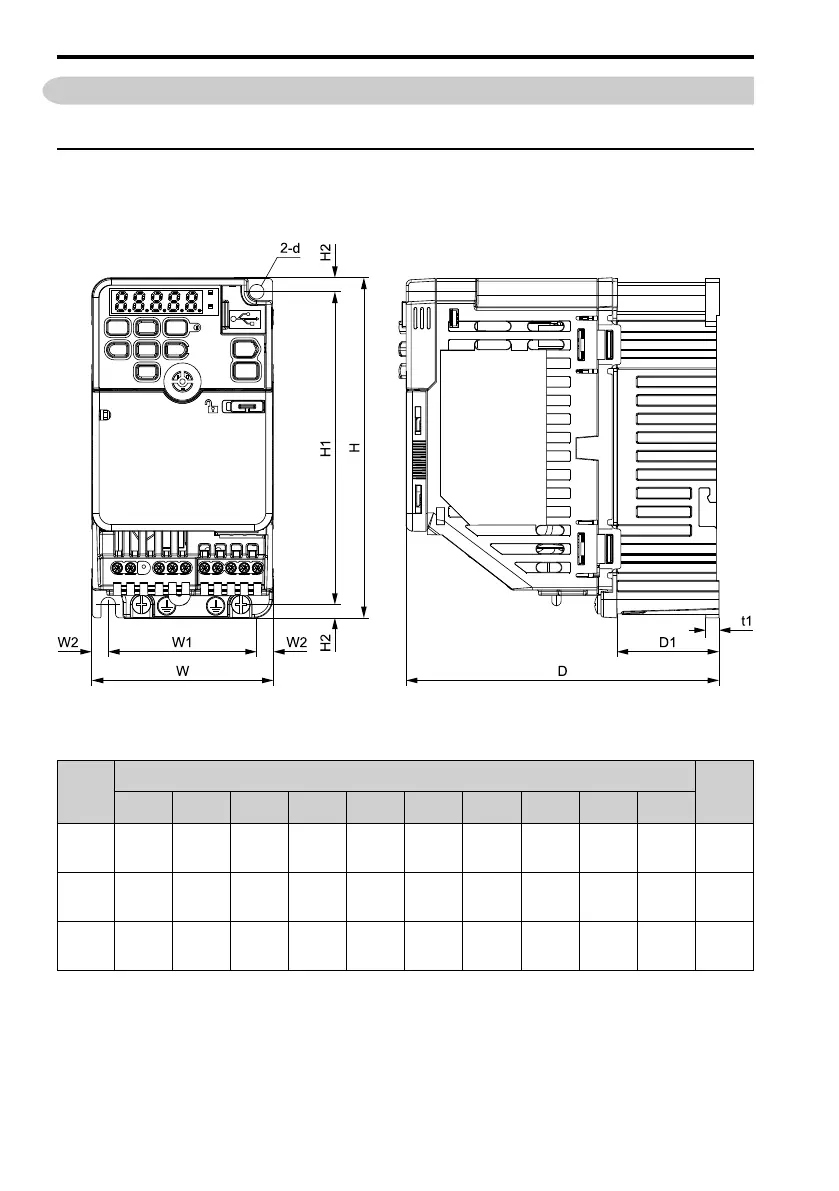

Figure 7.1 Exterior and Mounting Dimensions
Table 7.1 Single-Phase 200 V Class (IP20/UL Open Type, without Built-in EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D W1 W2 H1 H2 D1 t1
d
B001A
68
(2.68)
128
(5.04)
76
(2.99)
56
(2.20)
6
(0.24)
118
(4.65)
5
(0.20)
6.5
(0.26)
3
(0.12)
M5
0.5
(1.1)
B002A
68
(2.68)
128
(5.04)
76
(2.99)
56
(2.20)
6
(0.24)
118
(4.65)
5
(0.20)
6.5
(0.26)
3
(0.12)
M5
0.5
(1.1)
B004A
68
(2.68)
128
(5.04)
118
(4.65)
56
(2.20)
6
(0.24)
118
(4.65)
5
(0.20)
38.5
(1.52)
5
(0.20)
M5
0.8
(1.8)
