YL9120 UV/Vis Detector
through the new tube to a waste reservoir. This will clean any particulates or oil that may be residing in
the tube that could clog the heat exchanger or contaminate the sample cell of the detector.
2-4. Connection of remote cable
YL9120 UV/Vis detector has connection terminals for remote input/output, and marker input/output.
Note : Please do not connect wires between cables at your discretion. If you want to connect with
the other instrument, please check input/output information and confirm with the terminal
configuration of YL9120 UV/Vis detector.
L9120

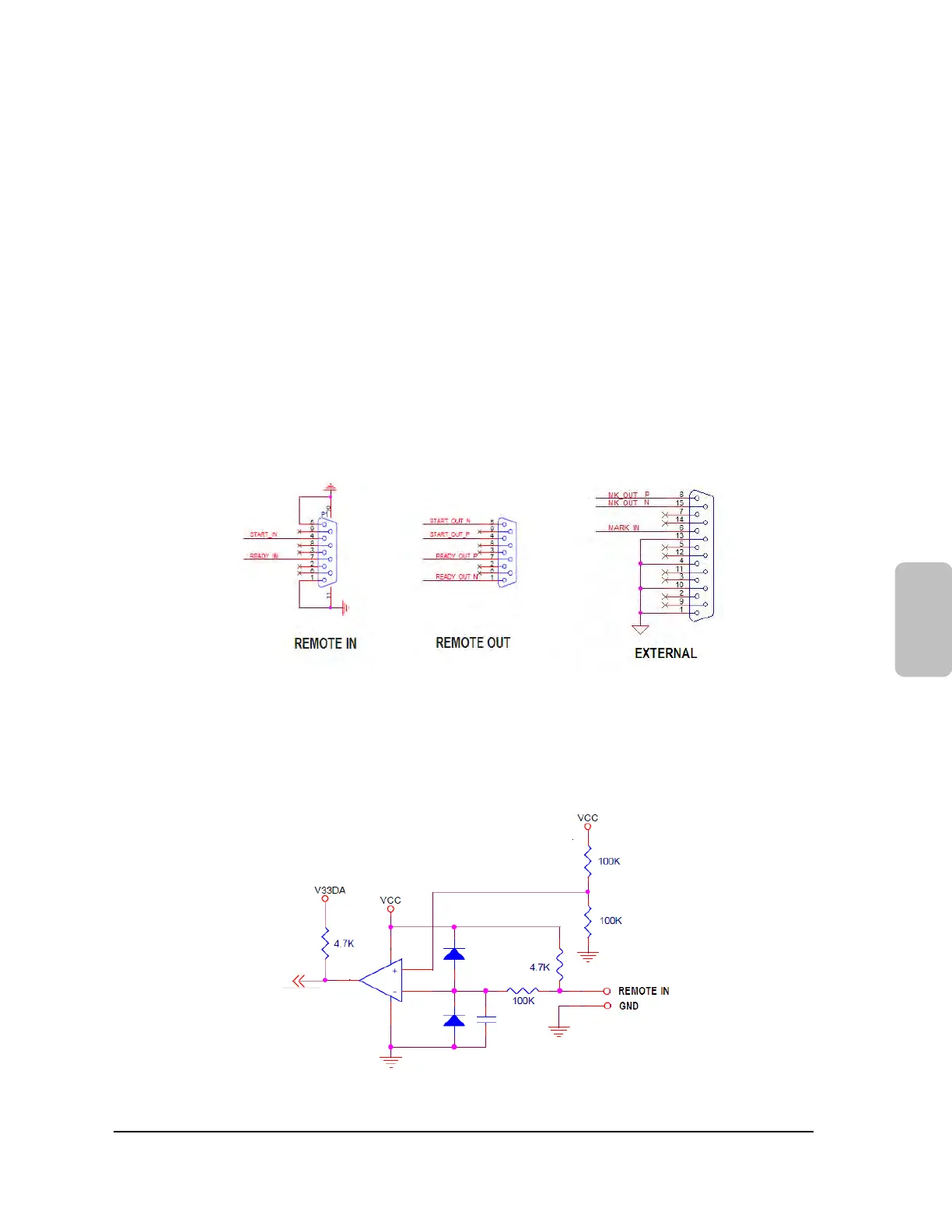

[Fig. 1] Pin configuration of each terminal
Fig. 2 and Fig. 3 are the diagram of remote and the other terminal input/output. In between YL9100
series modules, connect directly and confirm the configuration with the other modules.
[Fig. 2] Diagram of Remote and Marker input
5
To Next Page
