YL9110 Quaternary Pump
[Fig. 10] and [Fig. 11] are the diagram of remote and the other terminal input/output. In between YL9100
series modules, connect directly and confirm the configuration with the other modules.
Y
L9110

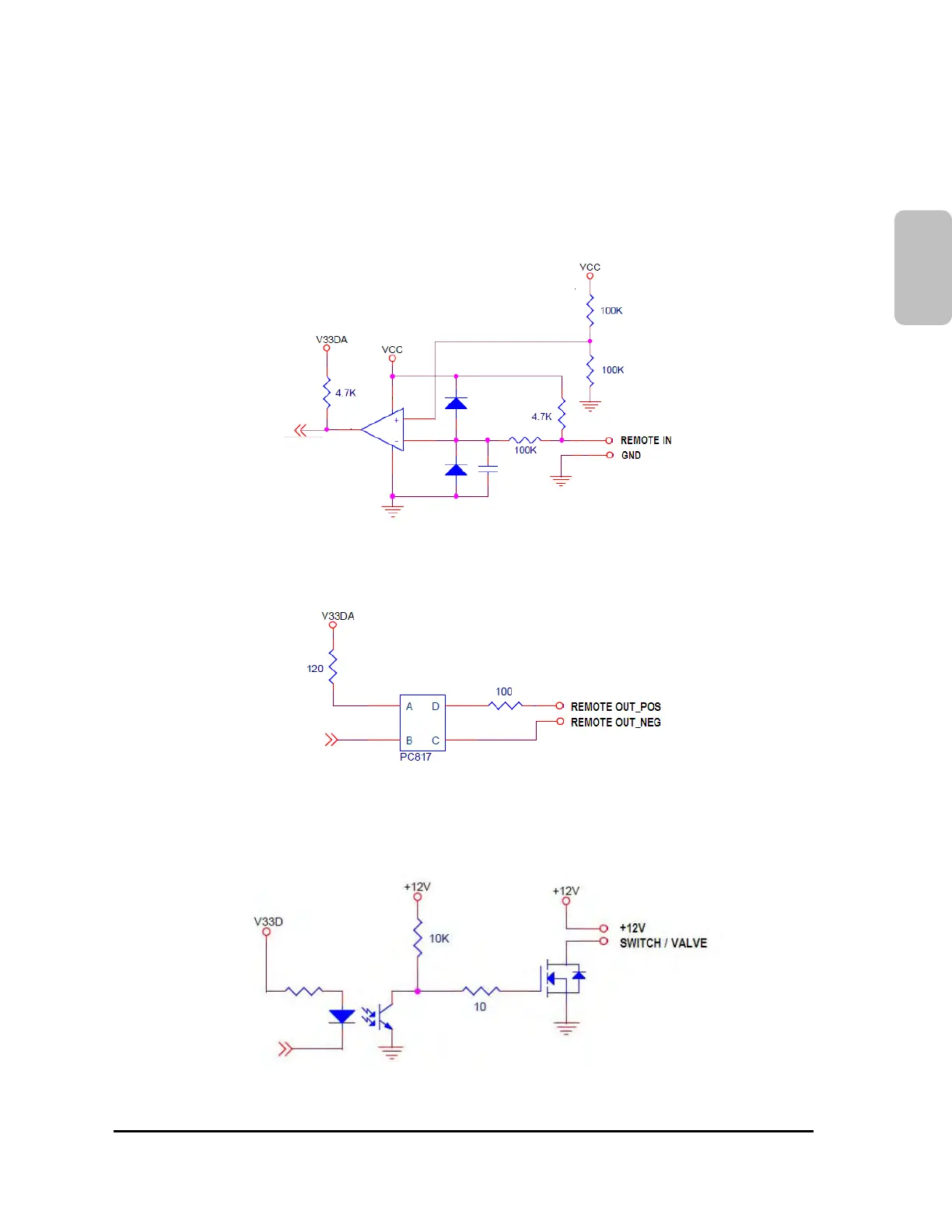

[Fig. 10] Diagram of Remote and Marker input
[Fig. 11] Diagram of Remote and Marker output
YL9110 quaternary pump provides output signal(12V 500mA) to operate external solenoid valve as like
[Fig 12].
[Fig. 12] Diagram of solenoid output
