YOKOGAWA Daqstation DX2020 User Manual

Measurement Channels and Alarms
3-3
IM 04L42B01-01E
1
2
3
4
5
6
7
8
9
10
11
12
13
App
Index

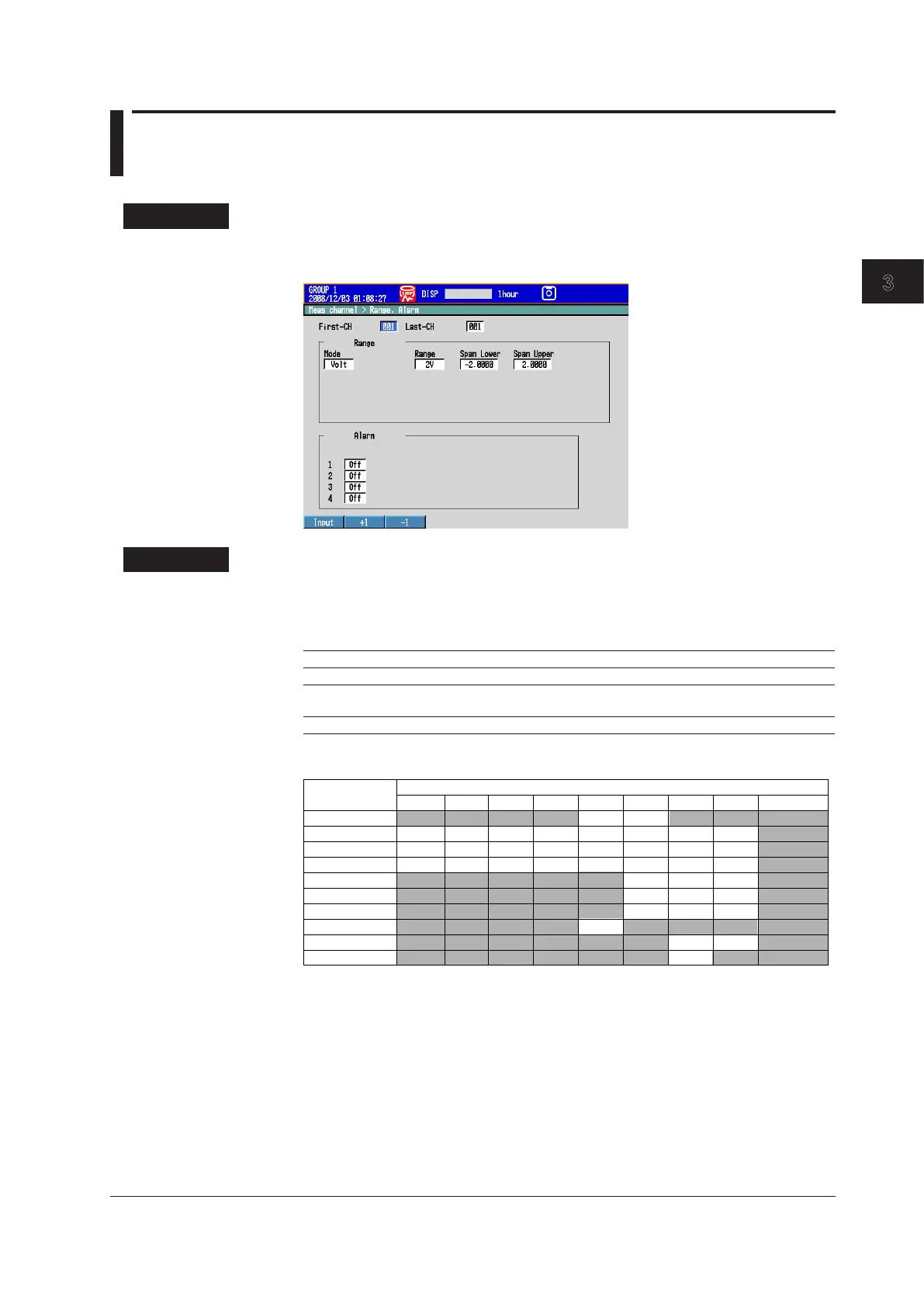

3.3 SettingtheInputRange
Set the input range for each channel.
SetupScreen
Press MENU (to switch to setting mode), and select the Menu tab > Meas channel >
Range,Alarm.
SetupItems
• First-CH/Last-CH
Select the target channels.
• Range>Mode
Settings Description
Skip Not measured.
Volt, TC, RTD, DI, 1-5V Input type. Represents DC voltage, thermocouple, RTD, ON/OFF
input, and 1-5V inputs, respectively.
Delta, Scale, Sqrt Difference computation, linear scaling, and square root computation.
Set the items with check marks in the table below according to the mode value.
















































































Volt TC RTD DI Delta Scale Sqrt 1-5V Skip
Type
Range
Span Lower
Span Upper
Scale Lower
Scale Upper
Unit
Ref. CH
Low-cut
Low-cut value
Mode
Setup Item
