YOKOGAWA Daqstation DX2020 User Manual

Switching Operation Screens
4-33
IM 04L42B01-01E
1
2
3
4
5
6
7
8
9
10
11
12
13
App
Index

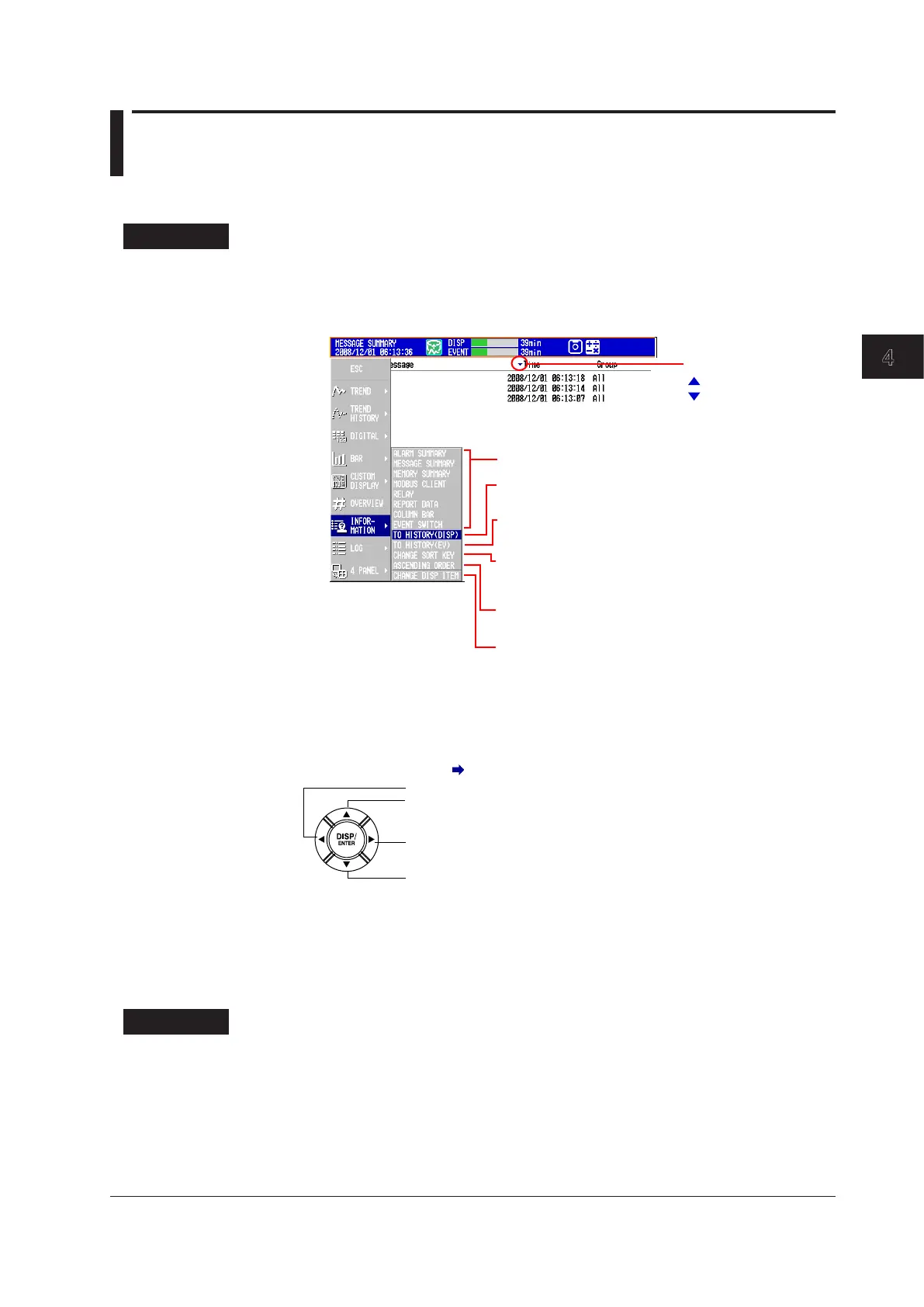

4.7 UsingtheMessageSummary
This section explains how to use the message summary.
For a description of the function, see section 1.3.
Procedure
• ChangingtheDisplayedContents
1.
Press DISP/ENTER to show the display selection menu.
2.
Press the rightarrowkey to display the sub menu.
3.
Press the upanddownarrowkeys to select the sub menu item.
Sort symbol
Ascending sort
Descending sort
CHANGE DISP ITEM: Switches between displaying
message times and groups
and displaying the message
user names
ASCENDING ORDER: Sorts in ascending order
DESCENDING ORDER: Sorts in descending order
CHANGE SORT KEY: Sorts messages by message
number, time, group, or user
name
TO HISTORY (DISP): Switches to the display data
historical trend display
Display name:
TO HISTORY (EV): Switches to the event data
historical trend display
Switches to the specified display
4.
Press DISP/ENTER to change the displayed contents.
To close the menu without changing the displayed contents, press the
ESC
key.
• MovingtheCursor( )andScrollingtheMessages
Scrolls the messages up by half a page
Moves the cursor up
Scrolls the messages down by half a page
Moves the cursor down
• RecallingtheHistoricalTrendDisplayatthePointWhentheMessage
WasWritten
1.
Select a message with the cursor.
2.
Display the historical trend according to the procedure described in “Changing the
Displayed Contents.”
Explanation
• CHANGEDISPITEM
Switches between the following two message display methods.
• Message,time,andgroup
• Message,username
• CHANGESORTKEY,ASCENDINGORDER,andDESCENDINGORDER
The messages are sorted in ascending or descending order by the respective key.
The sort symbol is displayed next the sort item (see the figure above).
