WhentheDisplayDirectionoftheBarGraphIsVertical
• Normal
Value at the bottom of the bar graph: Span lower limit or span upper limit (or scale
lower limit or scale upper limit), whichever is less
Value at the top of the bar graph: Span lower limit or span upper limit (or scale lower
limit or scale upper limit), whichever is greater
Starting point of the bar: Bottom edge
• Center
Value at the bottom of the bar graph: Same as with Normal.
Value at the top of the bar graph: Same as with Normal.
Starting point of the bar: Center
• Lower
Value at the bottom of the bar graph: Span lower limit (or scale lower limit)
Value at the top of the bar graph: Span upper limit (or scale upper limit)
Starting point of the bar: Bottom edge
• Upper
Value at the bottom of the bar graph: Same as with Lower.
Value at the top of the bar graph: Same as with Lower.
Starting point of the bar: Top edge

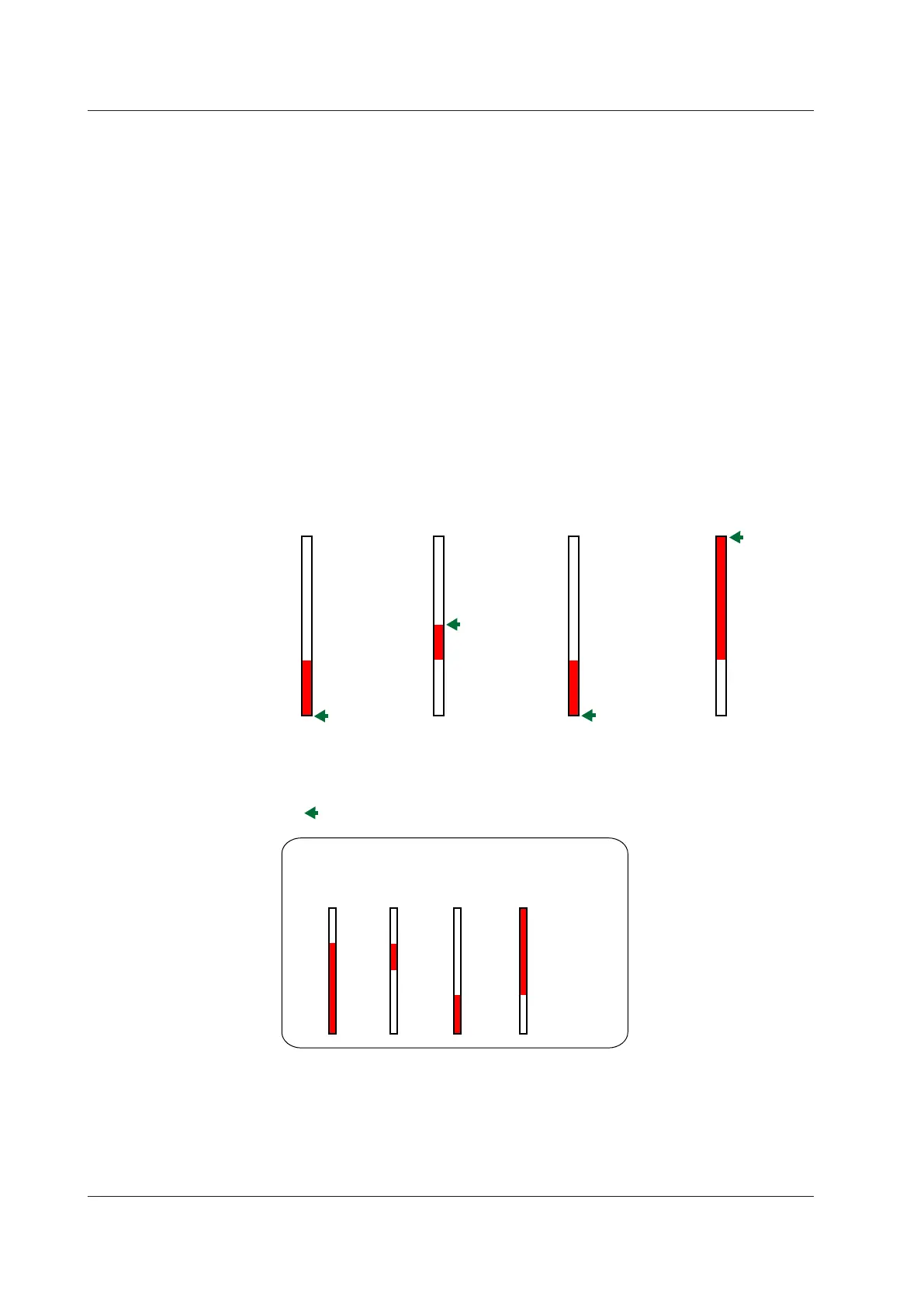

Normal Center Lower Upper
V
S
V
L
V
S
V
L
V
lower
V
upper
V
lower
V
upper
Vupper: Span upper limit (or scale upper limit)
Vlower: Span lower limit (or scale lower limit)
VL: Vlower or Vupper, whichever is greater
VS: Vlower or Vupper, whichever is less
: Starting point of the bar
Normal Center Lower Upper
0.0
-100.0
0.0
-100.0
–100.0
0.0
–100.0
0.0
Example: When the span lower and upper limits of the input
range are 0.0 and –100.0, respectively
5.11ChangingtheBarGraphDisplayMethod
