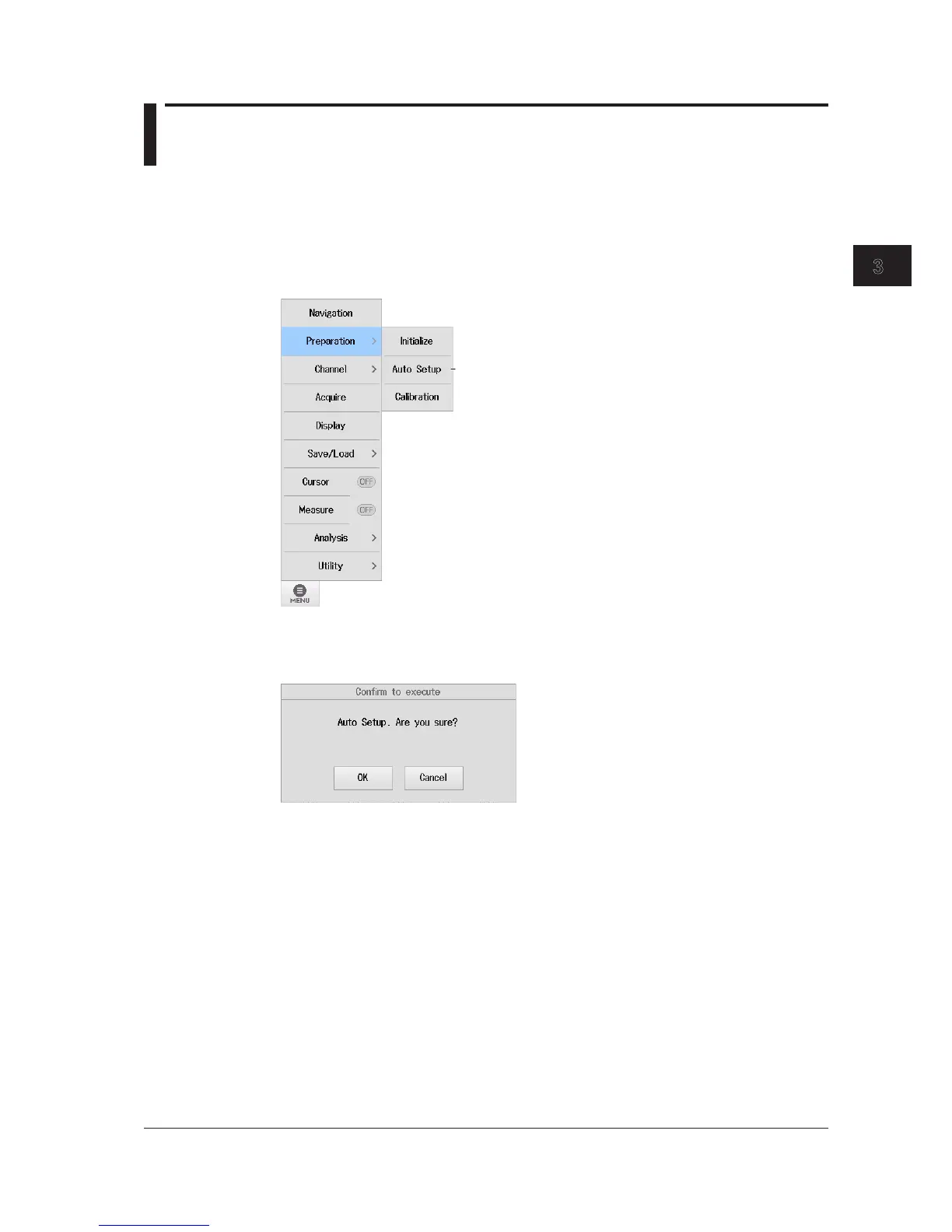

3.6 Performing Auto Setup
The auto setup feature automatically sets the V/div, Time/div, trigger level, and other settings to the
most suitable values for the input signals.
1.
On the waveform screen, tap MENU > Preparation. The following menu appears.
2.
Tap Auto Setup. A confirmation message appears.
Auto setup
Executing Auto Setup
3.
Tap OK. Auto setup is executed.
Center Position after the Execution of Auto Setup
The center position after you execute auto setup will be 0 V.
Applicable Modules
Auto setup is performed on the following modules.
720211 (HS100M12), 720250 (HS10M12), 720254 (4CH 1M16), 720268 (HV (AAF, RMS)),
701261 (UNIVERSAL), 701262 (UNIVERSAL (AAF)), 701275 (ACCL/VOLT), 720220 (16CH VOLT)
Target Channels
Auto setup is performed on all channels except logic channels.
Logic waveforms are displayed with the same settings as before you executed auto setup.
Waveforms Displayed before the Execution of Auto Setup
When you perform auto setup, the data in the acquisition memory is overwritten, and the waveforms
that were displayed before you executed auto setup are cleared.
