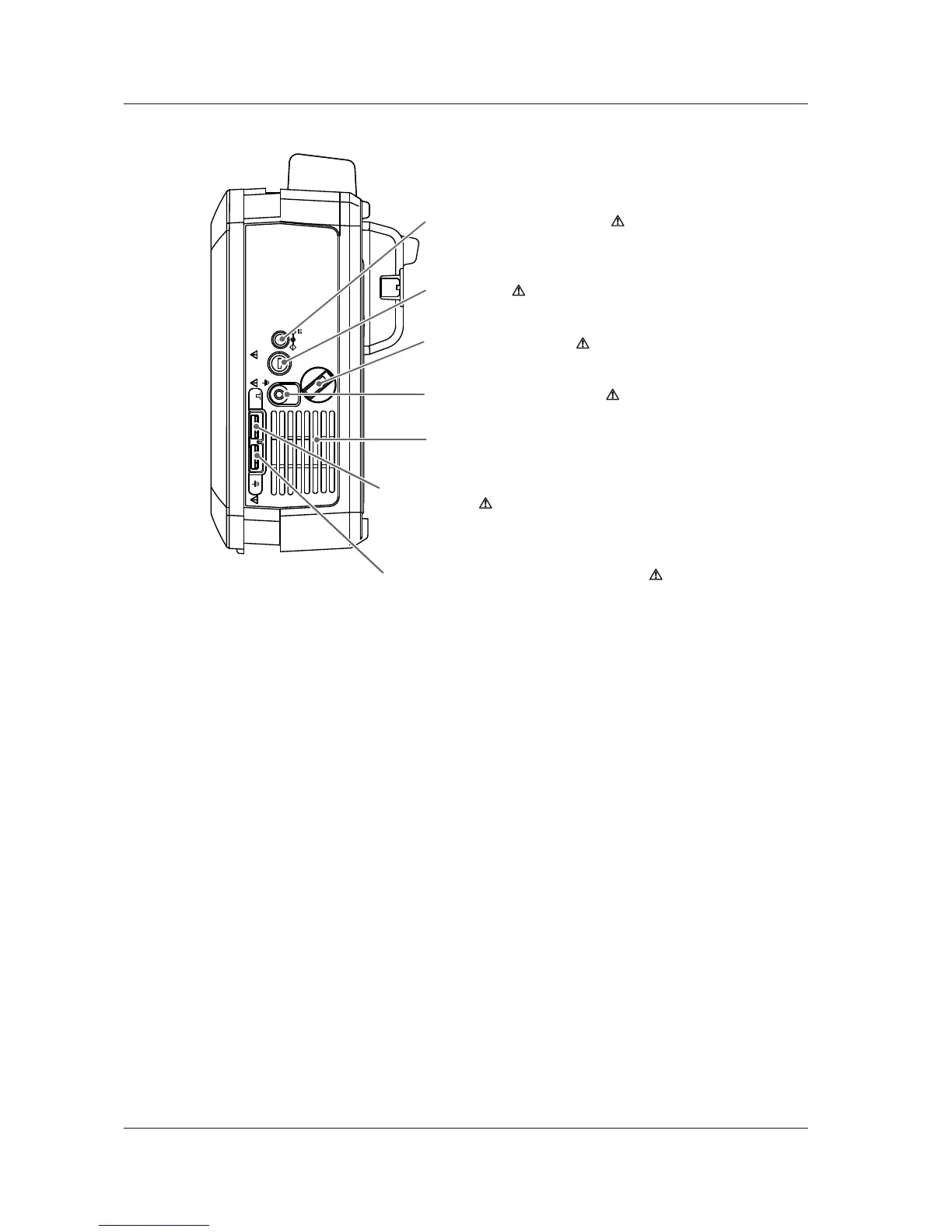

Right Side Panel
FUSE
T 10A
250V
10-30V
45W MAX
DC INPUT
COMP
1V
DC power supply connector
Connect the separately sold AC adapter
or DC power cable.
→ Sections 2.6, 2.7
Fuse holder
→ Section 5.8
Functional ground terminal
→ Sections 2.3, 2.4
Inlet holes
Probe compensation signal output terminal
(1 kHz/1 Vp-p)
Transmits calibration signals for probes.
→ Section 3.6
Probe compensation signal GND terminal
When calibrating a probe, connect the ground
wire to this terminal. Same electric potential as
the functional ground terminal.
DC power cable holder
→ Sections 2.6, 2.7
