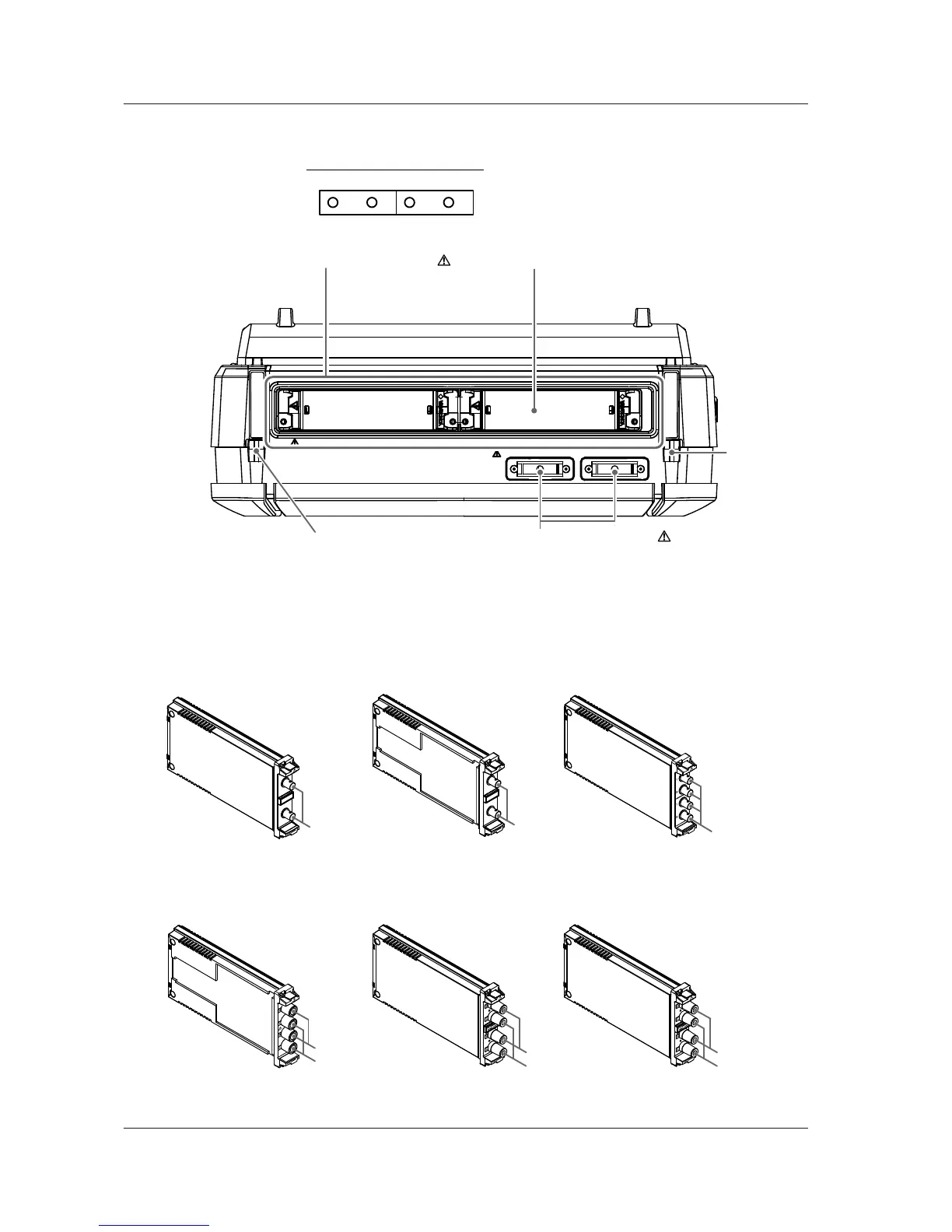

Top Panel
CH1 CH2 CH3 CH4
CH5 CH6
Input module slots
There are two slots.
→ Section 2.4
Logic input terminal
Use to apply logic signals.
→ Section 2.15
Protection cover panel for empty slots
Attach it when there is no module in the slot.
Input channel arrangement
CH1 CH2 CH3 CH4
Slot 1 Slot 2
Strap loop
→ Section 2.8
Strap loop
→ Section 2.8
Input Modules
The following input modules are available.
Universal (Voltage/Temp.)
Module
UNIVERSAL (model: 701261)
Universal (Voltage/Temp.)
Module (with AAF)
UNIVERSAL (AAF) (model: 701262)
Hi-Voltage 1 MS/s 16bit Isolation
Module (with AAF, RMS)
HV (AAF, RMS) (model: 720268)
H input terminal
L input terminal
(2ch)
H input terminal
L input terminal
(2ch)
H input terminal
L input terminal
(2ch)
High-Speed 100 MS/s,
12-Bit Isolation Module
HS100M12 (model: 720211)
Signal input terminal
(2ch)
High-Speed 10 MS/s,
12-Bit Isolation Module
HS10M12 (model: 720250)
Signal input terminal
(2ch)
4-CH 1 MS/s, 16-Bit Isolation Module
4CH 1M16 (model: 720254)
Signal input
terminal
(4ch)
