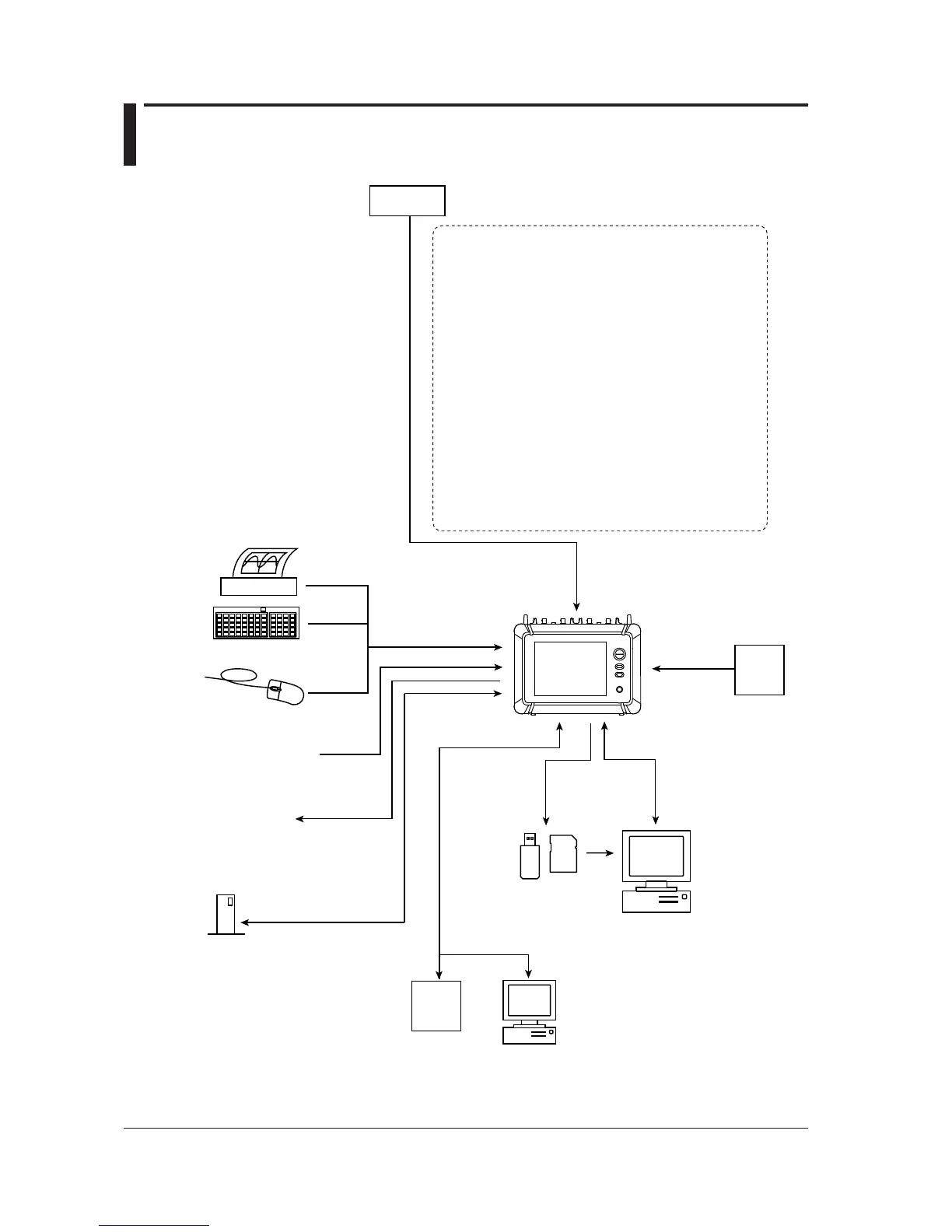

1.4 System Configuration
PC
USB memory,
SD memory card
• External clock input
• External trigger input
• GO/NO-GO determination I/O
• Trigger output
• Waveform data
• Setup data
• Image data
• USB interface
(remote control through
the use of commands)
DL350
Ethernet interface
PC
FTP
server
• FTP client
• Web server
Saving/loading of data
External USB device
USB PERIPHERAL
interface
USB keyboard
USB PERIPHERAL
interface
USB mouse
USB printer
Signal input
DUT
• Module
1
• Probe
2
• Measurement lead
1 • High-Speed 100 MS/s, 12-Bit Isolation Module
• High-Speed 10 MS/s, 12-Bit Isolation Module
• 4-CH 1 MS/s, 16-Bit Isolation Module
• Hi-Voltage 1 MS/s 16bit Isolation Module (with AAF, RMS)
• Universal (Voltage/Temp.) Module
• Universal (Voltage/Temp.) Module (with AAF)
• Temperature, High Precision Voltage Isolation Module
• Temp./Hi-Prec. Voltage Module (Low Noise)
• Strain Module (NDIS)
• Strain Module (DSUB, Shunt-Cal)
• Acceleration/Voltage Module (with AAF)
• Frequency Module
• 16-CH Voltage Input Module
• 16-CH Temperature/Voltage Input Module
• Logic Input Module
• CAN Bus Monitor Module
• CAN & LIN Bus Monitor Module
• SENT Monitor Module
2 • Clamp-on probe
• Current probe
• Logic probe
GPS
unit
