YOKOGAWA DL350 Getting Started Guide

4-8
IM DL350-03EN
4.5 External Start/Stop/Event Input (STRT/EVNT)
CAUTION
Only apply signals that meet the following specifications. Signals that do not meet the
specifications may damage the instrument because of factors such as excessive voltage.
French
ATTENTION
Appliquer uniquement des signaux respectant les spécifications ci-dessous. Les signaux ne
respectant pas les spécifications risquent d’endommager l'instrument, à cause de facteurs tels
que la surtension.

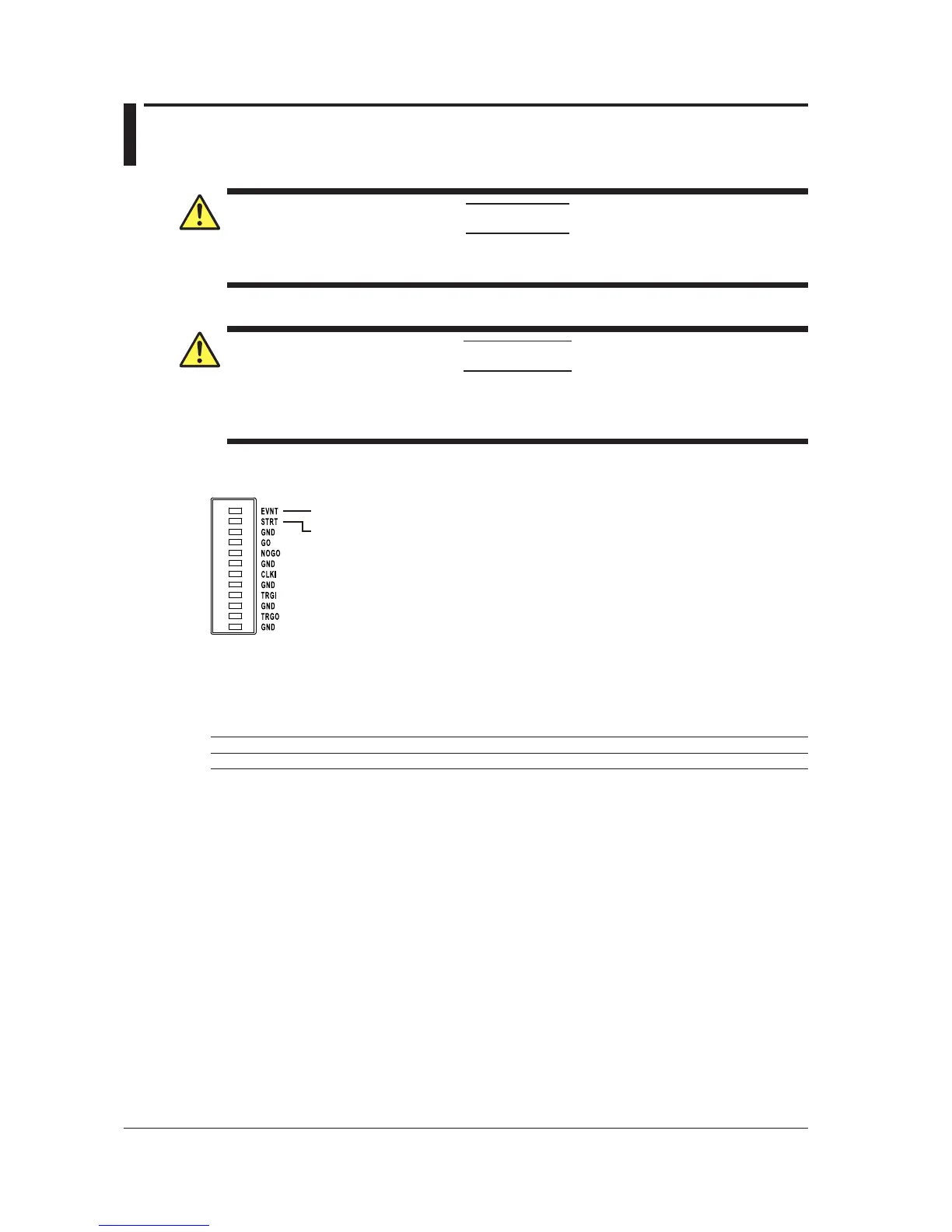

External Start/Stop/Event Input Terminal (STRT/EVNT)
EVNT: Manual event. Event input occurs on low edge.
STRT: External start/stop input
Starts on low edge, stops on high
You can use an external signal to start and stop the DL350.
The STRT terminal and GO/NO-GO I/O terminal are the same terminal. This terminal is used as an
external start/stop input when the GO/NO-GO determination I/O function is not used (when on the GO/
NO-GO menu, Mode is set to OFF).
Item Specifications
Input level TTL (0 to 5 V)
