6-47
IM DL35
O
-03EN
Specifications
1
2
3
4
5
6
App
Index
6.17

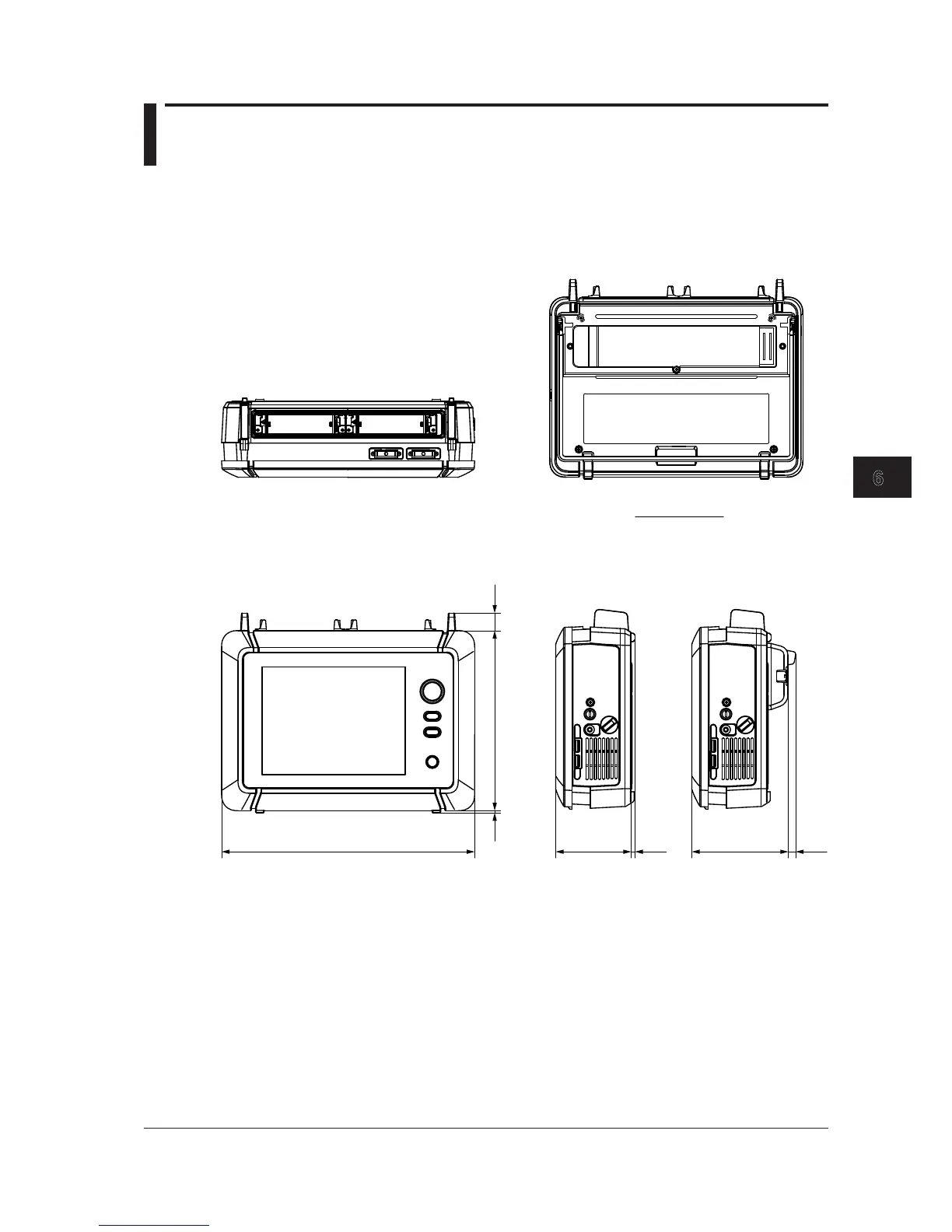

External Dimensions
DL350
Unit: mm
Unless otherwise specified, tolerances are ±3% (however
, tolerances are ±0.3 mm when below
10 mm).
Rear view
When the battery
pack is mounted
217
305
2.7
3.5
92
21.2
1
15.9
9.3
186
188
