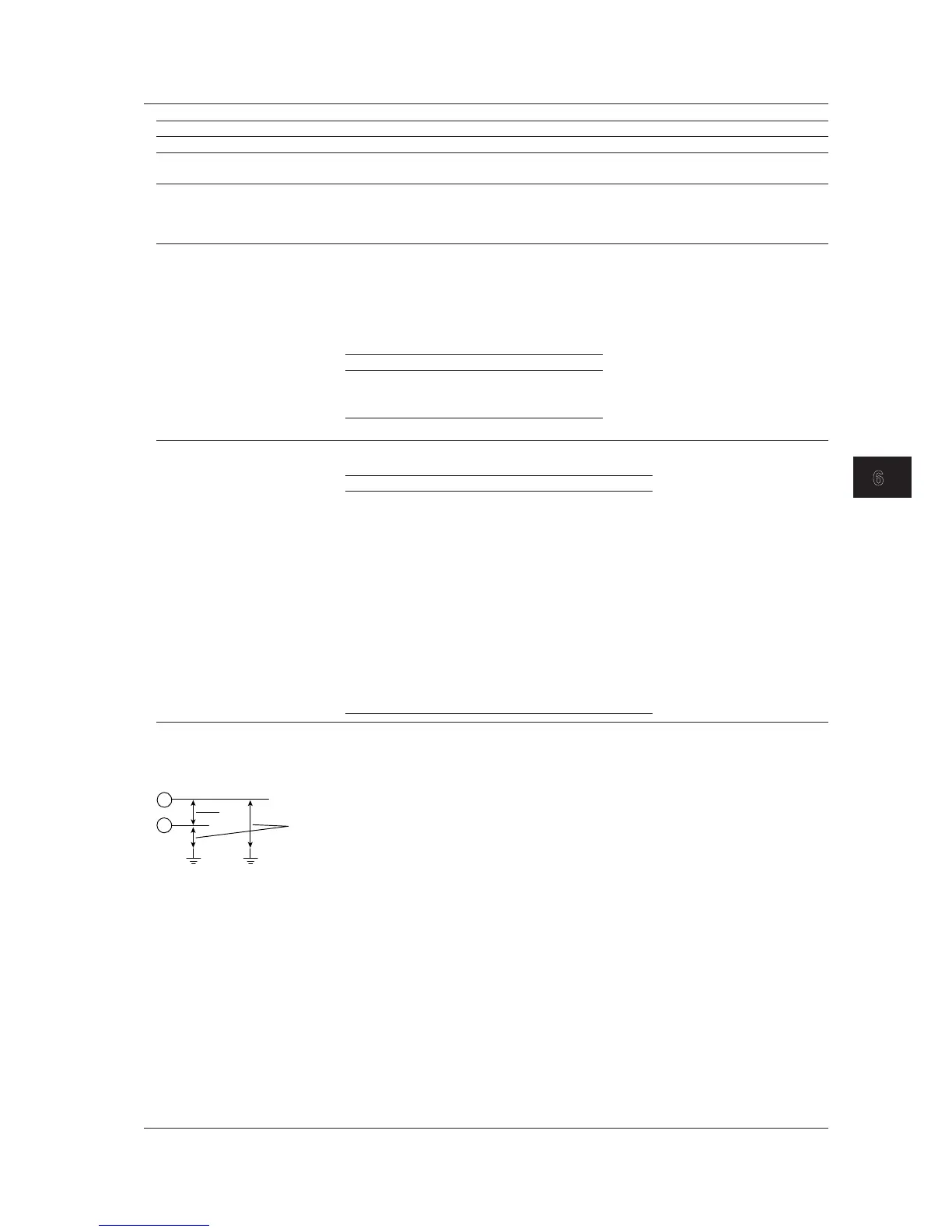

Item Specifications
A/D converter resolution [Voltage measurement] 16 bits (2400 LSB/div)
Temperature coefficient [Voltage measurement] Zero point: ±(0.01% of 10 div)/°C (typical value
6
)
Gain: ±(0.02% of 10 div)/°C (typical value
6
)
Reference junction
compensation accuracy
(when the input terminal
temperature is balanced)
K, E, J, T, L, U, N: ±1°C
R, S, B, W: ±1.5°C
Au7Fe: ±1K
Bandwidth limit [Temperature measurement] (Digital filter + analog filter)
Select from Full, 30 Hz, 8 Hz, and 2 Hz + 150 Hz secondary
analog filter
[Voltage measurement] Select from Full, AUTO, 4 kHz, 400 Hz, or 40 Hz.
Cutoff characteristics: −12 dB/OCT (typical value,
6
setting other
than AUTO)
Cutoff frequency (fc) when set to AUTO (701262 only)
Sample Rate Cutoff Frequency (fc)
100 kS/s or higher 40 kHz
100 S/s to 50 kS/s 40% of the sample rate
50 S/s or less 20 Hz
Cutoff characteristics for AUTO: −65 dB at 2 × fc (typical value
6
)
Table of cutoff frequency
characteristics of the anti-
aliasing filter (AAF)
When the filter is set to Auto, the anti-aliasing filter and low-pass filter are automatically set
according to the sample rate.
Sample Rate AAF Low-Pass Filter
100 kS/s 40 kHz OFF
50 kS/s 20 kHz OFF
20 kS/s 8 kHz OFF
10 kS/s 4 kHz 4 kHz
5 kS/s 2 kHz 4 kHz
2 kS/s 800 Hz 4 kHz
1 kS/s 400 Hz 400 Hz
500 S/s 200 Hz 400 Hz
200 S/s 80 Hz 400 Hz
100 S/s 40 Hz 40 Hz
50 S/s 20 Hz 40 Hz
20 S/s to 5 S/s 20 Hz 40 Hz
2 S/s or less 20 Hz 40 Hz
Ext sample 40 kHz OFF
1 Value measured under standard operating conditions
2 Does not include the reference junction temperature compensation accuracy.
3 This module supports Au7Fe with 0.07% metal content with respect to gold.
H
L
5
4
6 Typical value represents a typical or average value. It is not strictly warranted.
6.13 Module Specifications
