Zebra RFD8500 User Manual

3 - 10 RFD8500 User Guide
Application
From the Settings screen, touch Application.

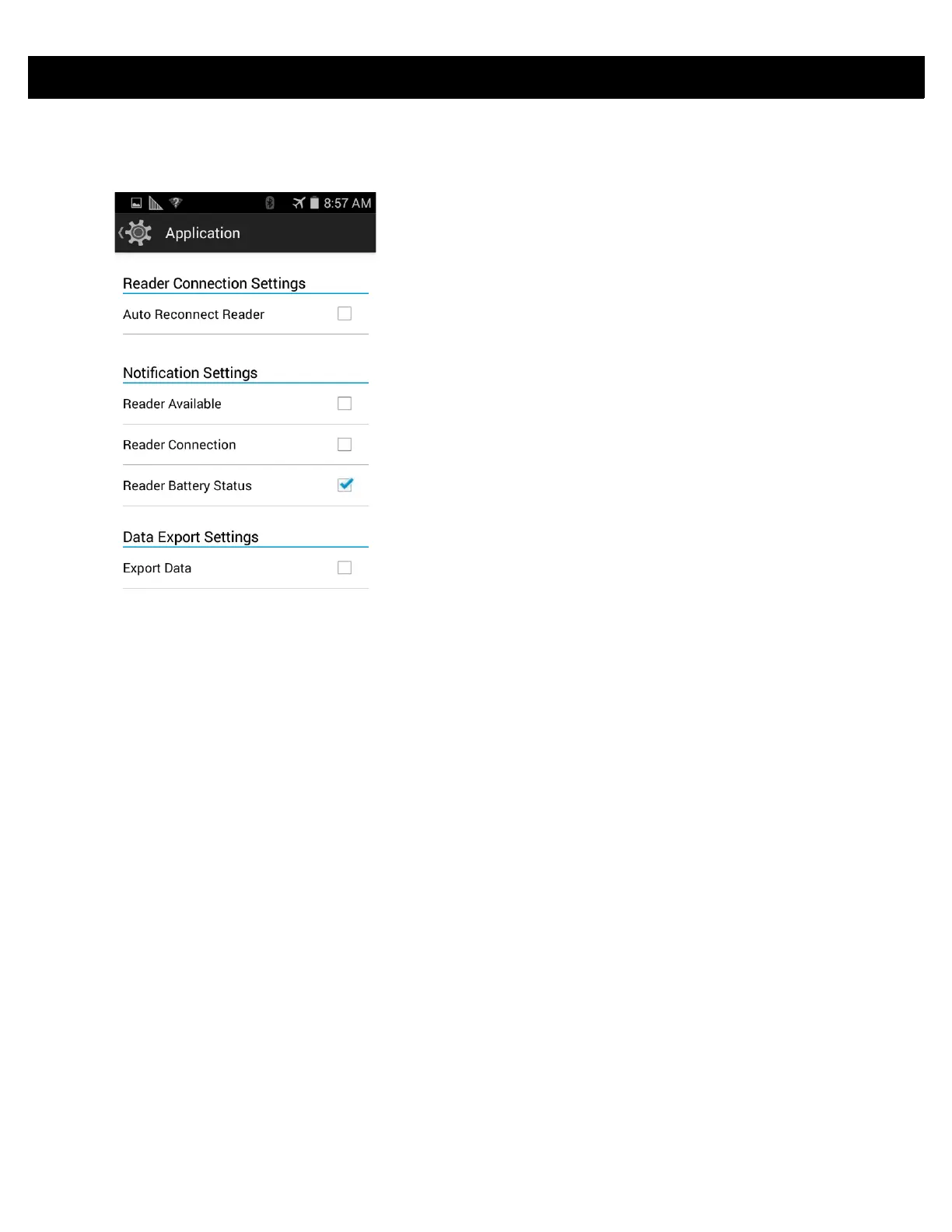

Figure 3-7 Settings - Application Screen
The application always detects readers that were paired over Bluetooth.
• Auto Reconnect Reader: When checked, the application attempts to reconnect to the reader if the
connection is lost within the session.
• By default the Reader Battery Status notification is enabled.
• Export Data: When checked, the application writes the inventoried RFID data to a file when the inventory
operation stops. On Android platforms the file is saved in a fixed directory. The user can check files in file
browsing in the Inventory directory (Sdcard/inventory/<files>), and these files can be copied to a PC.

Zebra RFD8500 Specifications

General

Type	Handheld bar code reader
Sensor type	-
Scanner type	1D/2D
Read rate (max)	600 reads/s
Bluetooth version	2.1+EDR
Operating frequency	865 - 868 MHz
Standard interfaces	Bluetooth
Product color	Gray
LED indicators	Yes
Protection features	Dust resistant, Splash proof
Battery capacity	4410 mAh
Power source type	Battery
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 85 %
Mobile operating systems supported	Android 4.4, Android 5.0, Android 5.1, iOS 8.0, iOS 8.2, iOS 9.0
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	130 mm
Width	185 mm
Height	80 mm
Weight	430 g
