5: Replacement Procedures
Procedures
P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 117
5.6.5 Top Cover

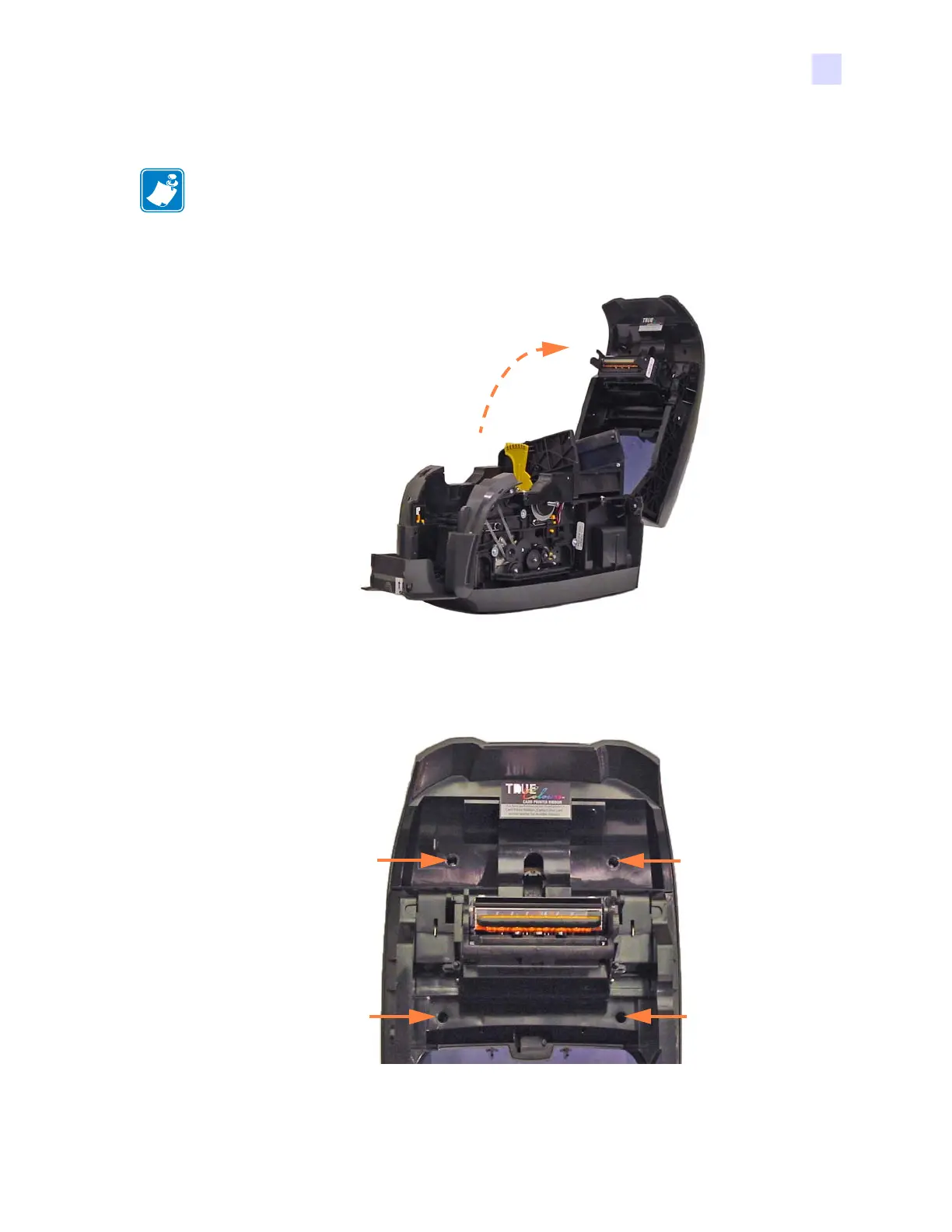

Step 1. Press the access button, and raise the Lid.
Step 2. With a TORX T10 driver, remove the four screws (SCR, PLAST, 4-.37L, 7.0 in-lb)
that hold the Top Cover to the Lid; see arrows below.
NOTE • This procedure uses Spare Kit # P1031925-141: KIT, TOP COVER BADGE; and
P1031925-137, KIT, BUTTON FOR DOOR.
