5: Replacement Procedures
Procedures
P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 147
5.6.25 Printhead Lift Motor

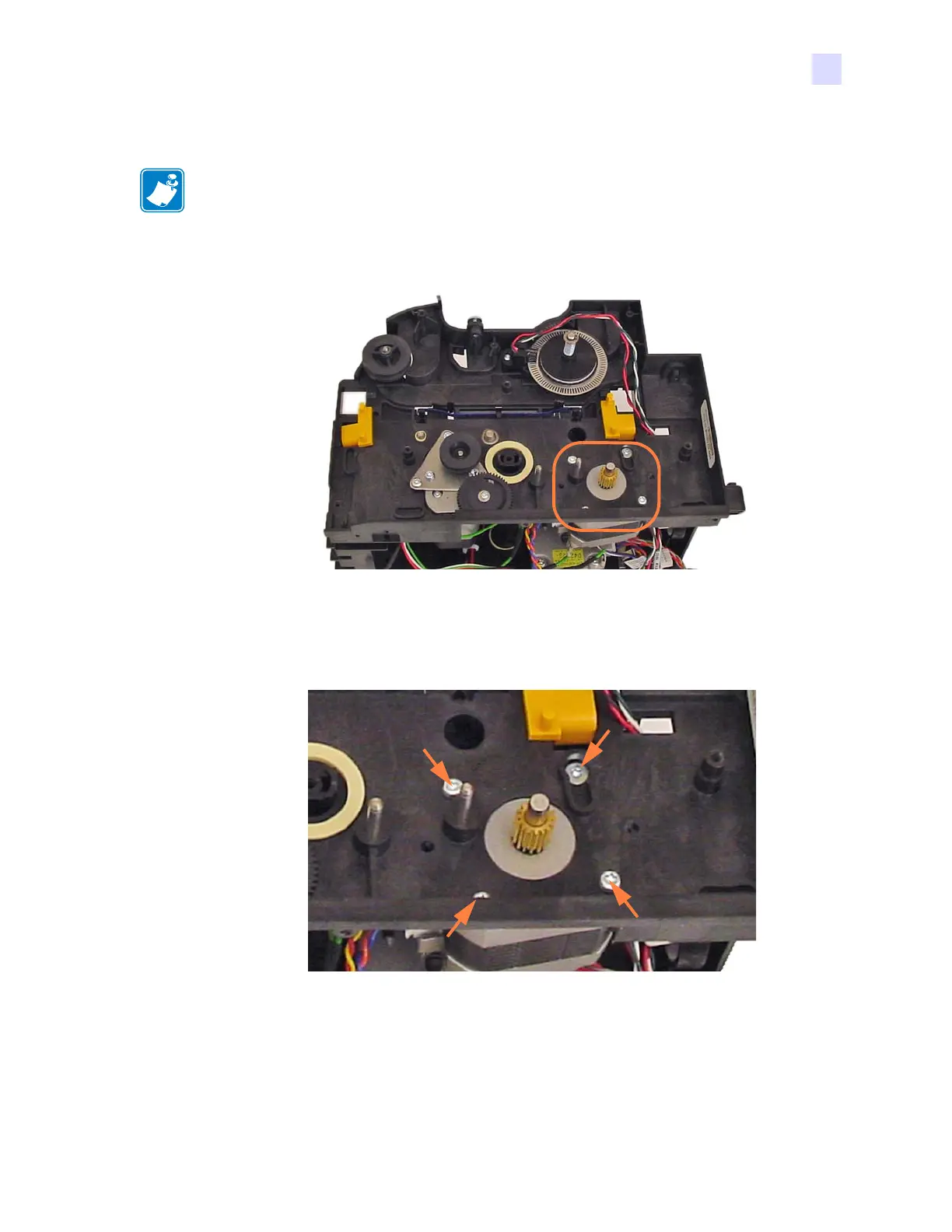

Step 1. Locate the Printhead Lift Motor. (circled below)
Step 2. Using a TORX T10 driver, remove the four screws (SCR M3x6, 5.5 in-lb) holding
the Printhead Lift Motor to the Frame; arrows below. Note the orientation of the
connector on the motor (facing the front of printer).
Step 3. If not already done, disconnect the Printhead Lift Motor plug from connector J26
on the Main
PCBA.
Step 4. Disconnect the ground wire, and remove the Printhead Lift Motor.
NOTE • This procedure uses Spare Kit # P1031925-018: KIT, MOTOR, HEAD LIFT.
