Zebra ZXP 1 Series User Manual

84 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001
3: Theory of Operation
Card Movement During Printing
3.4 Card Movement During Printing
Step 1. The card is fed from the Card Input Hopper and loaded into the Card Transport
where it is rotated into the print position.
Step 2. The card is moved into the Print Engine, passing the Cleaning Roller, which cleans
dust or dirt particles from the upper card surface.
Step 3. If the Printer includes an optional Magnetic Stripe Encoder, the card is moved to the
Magnetic Stripe Encoder, and the stripe is encoded.
After the card is encoded, it is checked to verify that the magnetic stripe was
properly encoded.
If encoding fails, the card is ejected into the Card Output Hopper. This is done to
avoid wasting time and ribbon panels on a defective card.
If the encoding is successful, the card is moved into the pre-print position, just
before the Printhead.

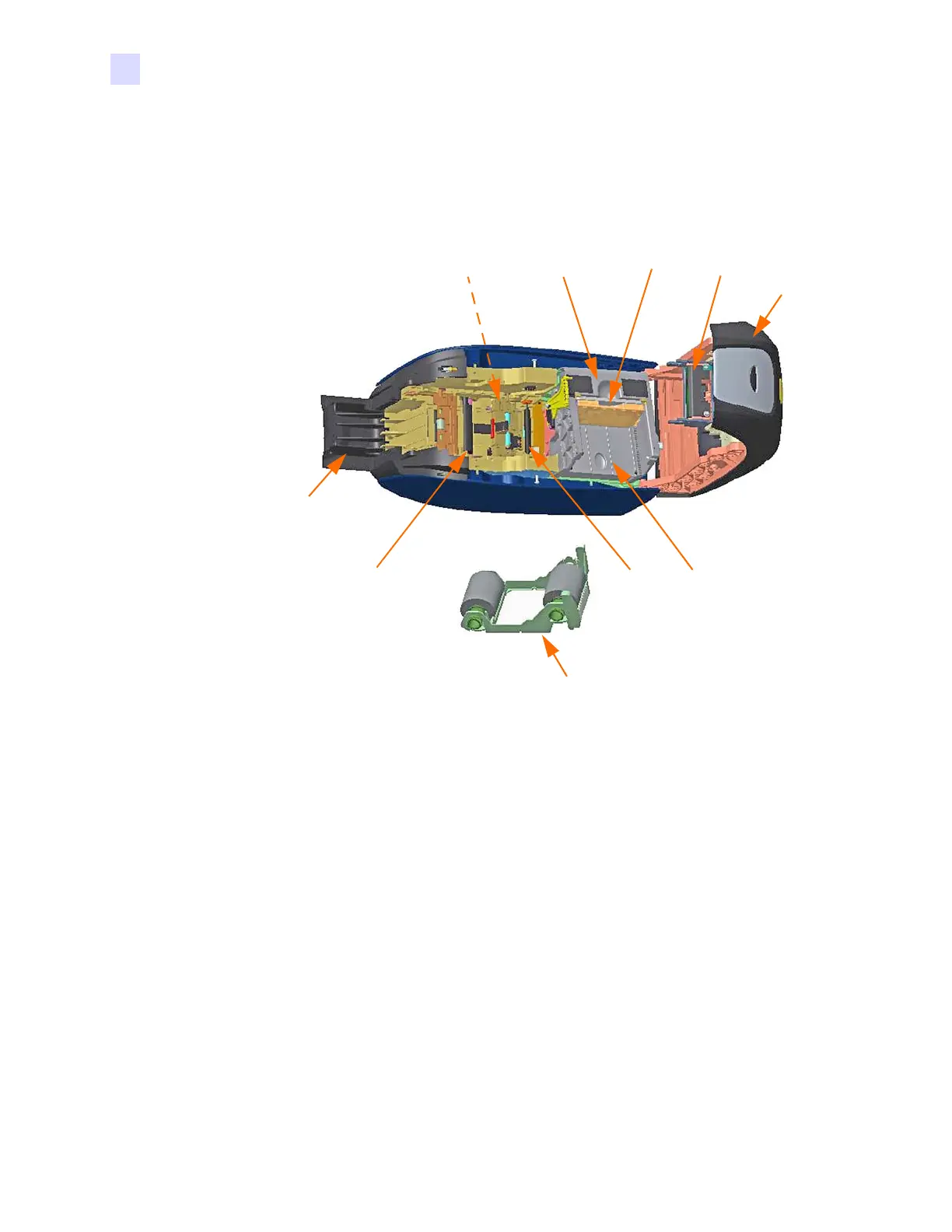

Printhead
Card Input
Hopper
Card
Guide
Ribbon
Cartridge
Card Output
Hopper
Card Transport
(under Hopper)
Cleaning
Roller
Magnetic Stripe
Encoder (optional)
Platen
Roller
Lid
