5: Replacement Procedures
Procedures
P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 161
5.6.31 Stepper Motor
Step 1. Locate the Stepper Motor.
Step 2. If not already done, remove the left-side Linkage; see Section 5.6.29.

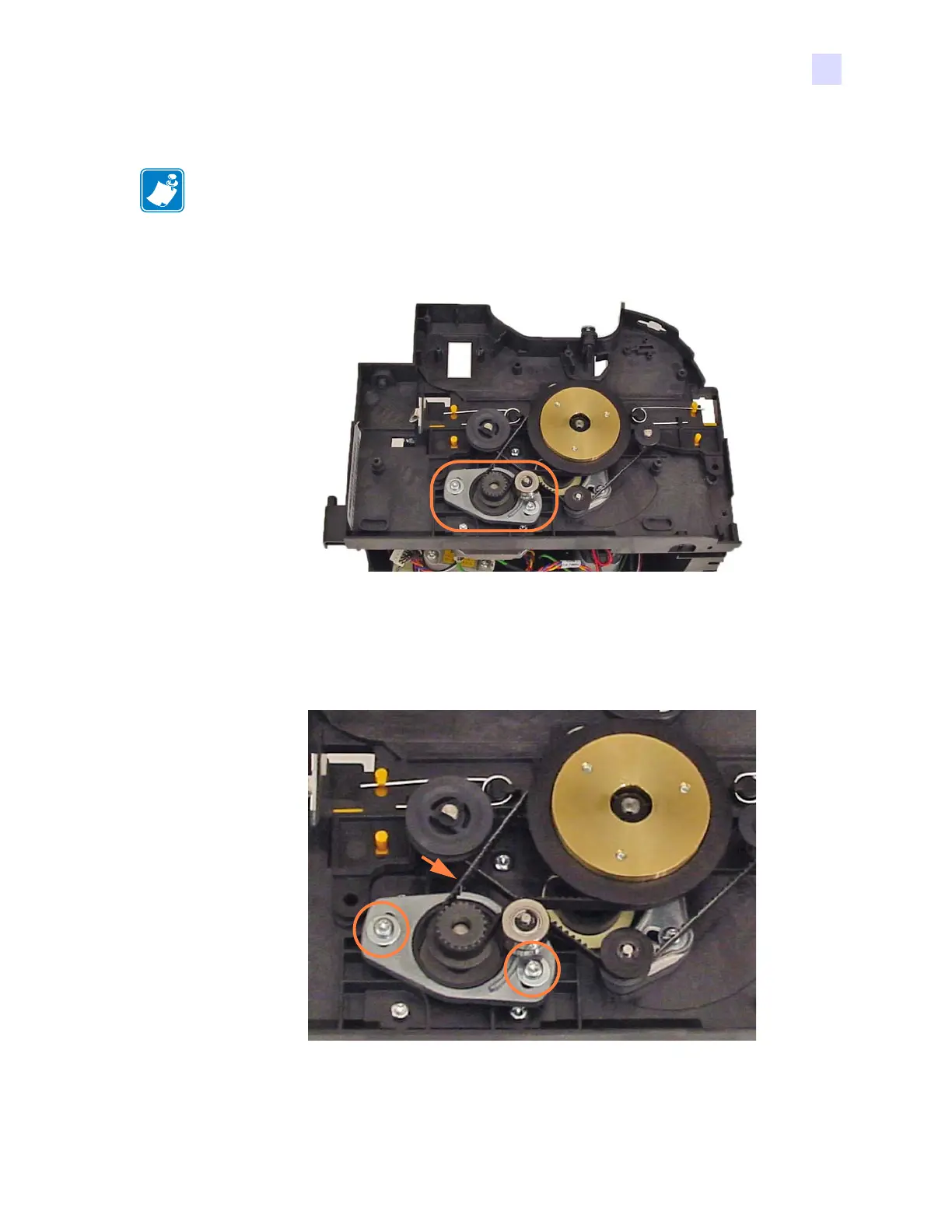

Step 3. With a TORX T10 driver, loosen the two screws (7.0 in-lb) holding the motor collar
in place; circled below.
Step 4. Remove the associated belt (arrow above).
NOTE • This procedure uses Spare Kit # P1031925-217: KIT, MOTOR CARD DRIVE.
