Zebra ZXP 1 Series User Manual

5: Replacement Procedures
Procedures
P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 155
5.6.30 Rocker - Left Side

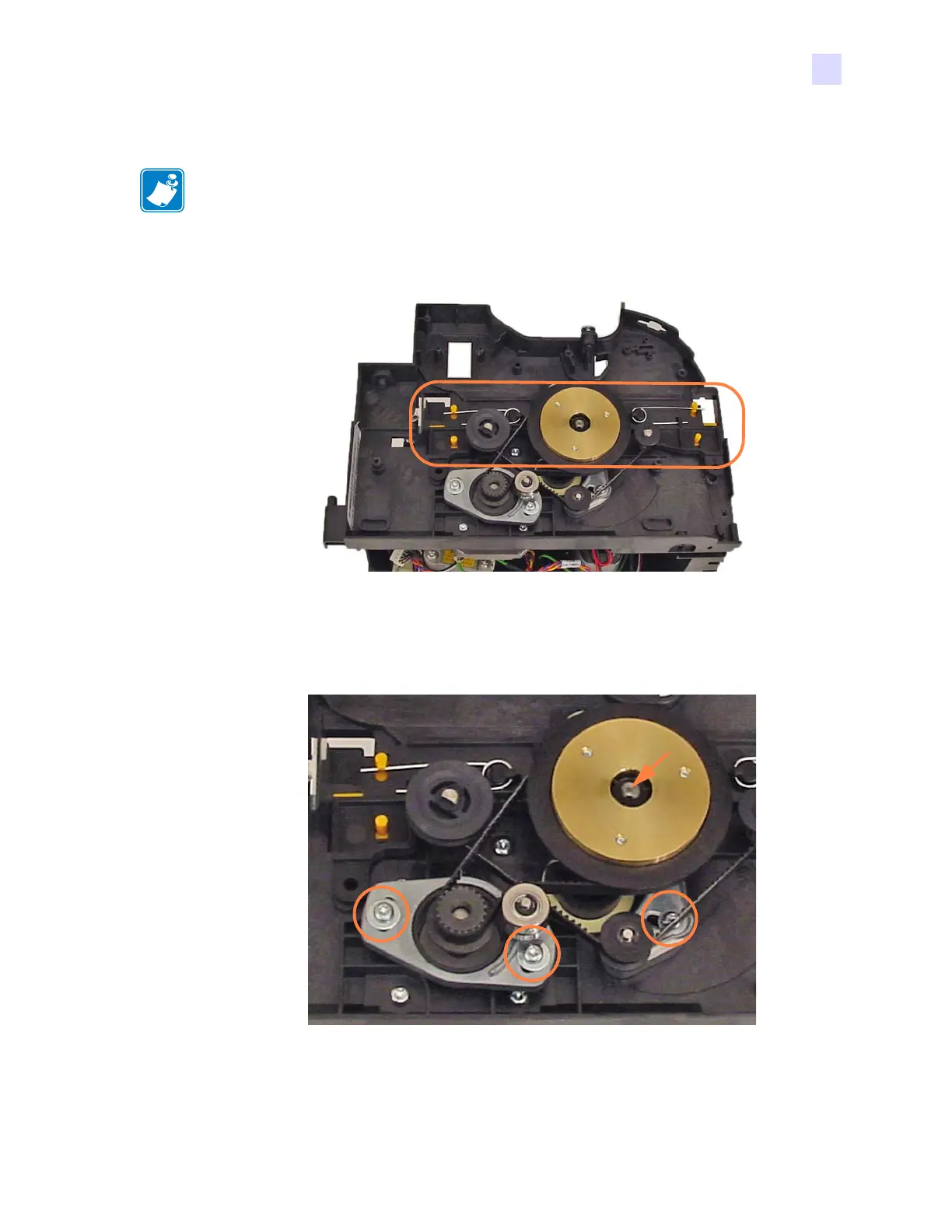

Step 1. Locate the Rocker (circled below).
Step 2. With a TORX T10 driver, loosen the three screws (circled below), holding the
Motor Collar and Tensioner in place. This will free the belt and allow you to remove
the Main Inertia Wheel.
Step 3. Remove the retaining clip (arrow above) from the Main Inertia Wheel.
NOTE • This procedure uses Spare Kit # P1031925-072: KIT, DRIVE LINKAGE or
Spare Kit # P1031925-021: KIT, SPRINGS FOR LINKAGE.
