45-8 Brakes
Brakes
45

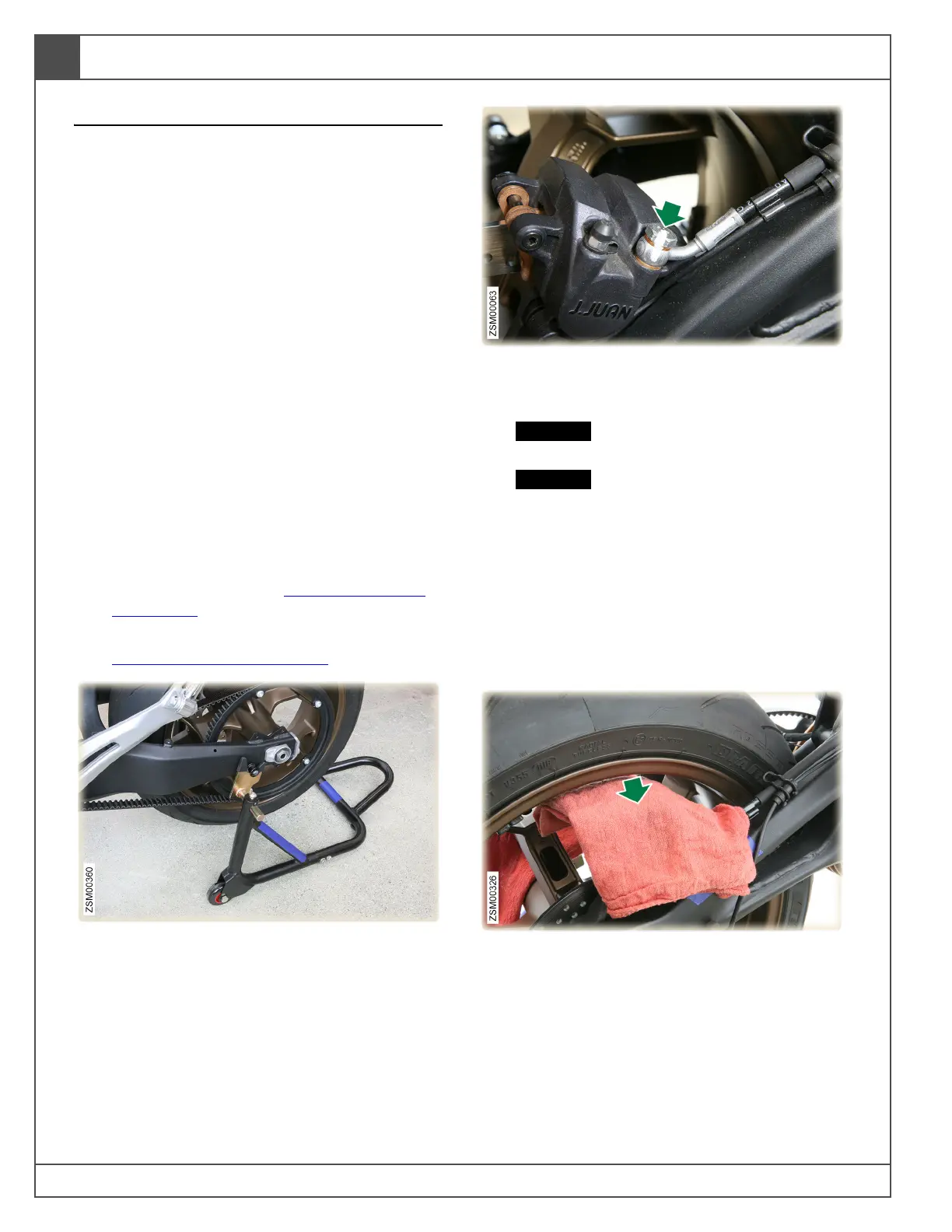

Brake Caliper (Rear)
Tools Required (includes tools required for
parent jobs):
• 9mm hex wrench
• T25
• T40
• T45
• 27mm socket and ratchet
• 13mm wrench
• Motorcycle stand
New Fasteners Required:
• Cable ties (quantity: 1)
New Seals Required:
• Crush washers (x2)
Removal
1. Remove drive belt. See Replace Drive Belt
,
page 40.35.
2. Remove brake pads from the rear caliper. See
Brake Pads (Rear)
, page 45.5.
3. Safely raise rear tire off the ground using a
motorcycle stand.
4. Remove rear caliper banjo bolt and discard
crush washers (x2). Tool: 14mm flare nut
wrench. Torque: 20 lb-ft (27 Nm).
CAUTION: Plug all open connections to
prevent ingress of moisture and debris.
CAUTION: Brake fluid is extremely harmful
to paint, so if brake fluid contacts a painted
surface, wash the surface immediately.
Note: Position a suitable container to contain
fluid spillage.
Note: Position absorbent material around
affected area to absorb possible fluid spillage.
Note: Replace crush washers upon
installation.
5. Place rag over rear caliper to protect painted
surfaces.
