Operation Manual / 4 Product description / A130-H.. - A140-H
8 Dismantling and fitting / 8.10 Installing the cartridge group on the
service support
© Copyright 2017 ABB. All rights reserved. HZTL4030_EN Revision D May 2017
8.10 Installing the cartridge group on the service
support

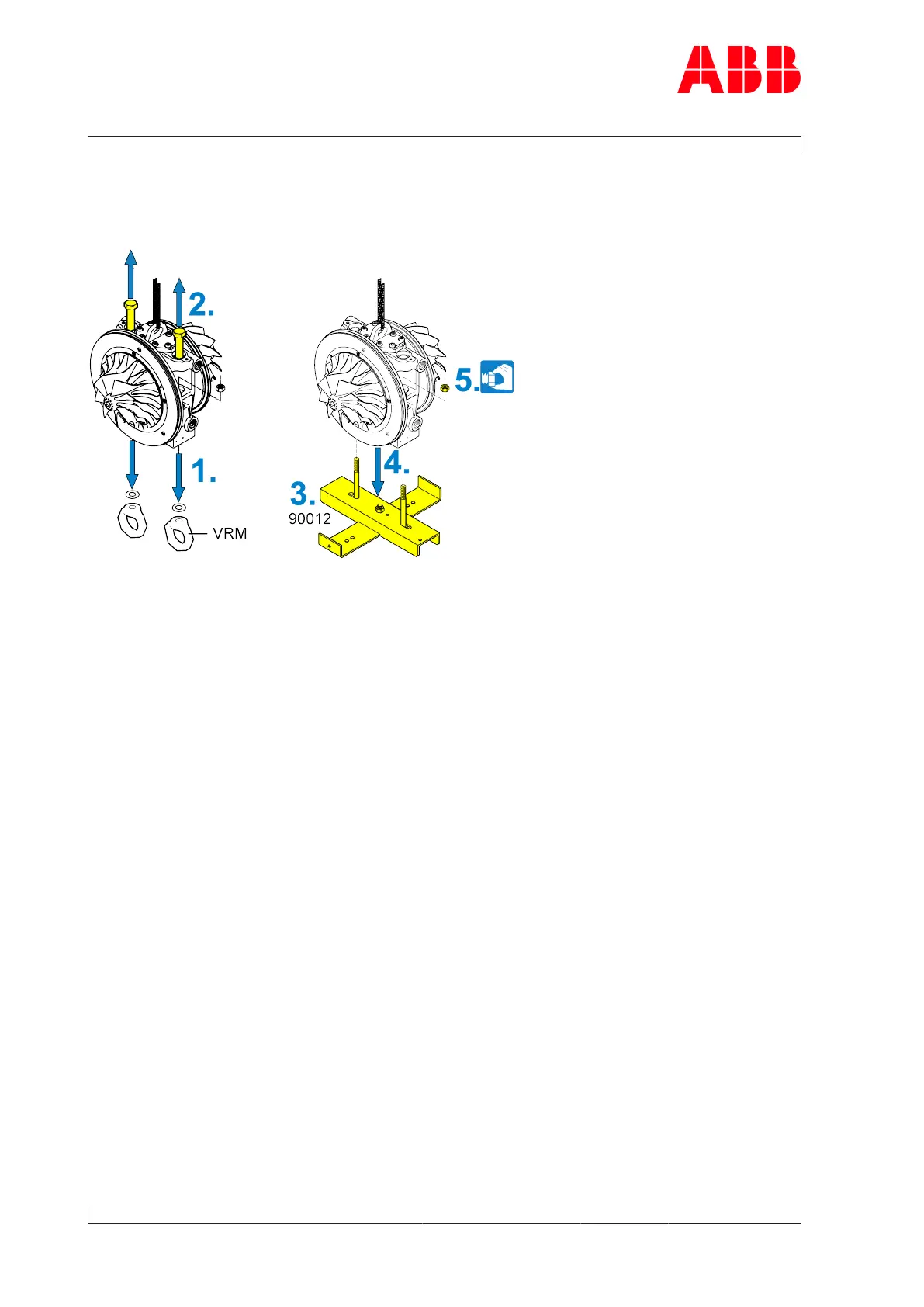

Fig.38: Installing the cartridge group on the service support
1. Remove ring nuts(VRM).
2. Remove service support screws.
3. Fit service support (90012) according to the illustration.
4. Insert the cartridge group.
5. Fit the nuts.
Page 70 / 91
