Operation Manual / 4 Product description / A130-H.. - A140-H
8 Dismantling and fitting / 8.14 Installing the cartridge group
© Copyright 2017 ABB. All rights reserved. HZTL4030_EN Revision D May 2017
Installing the cartridge group

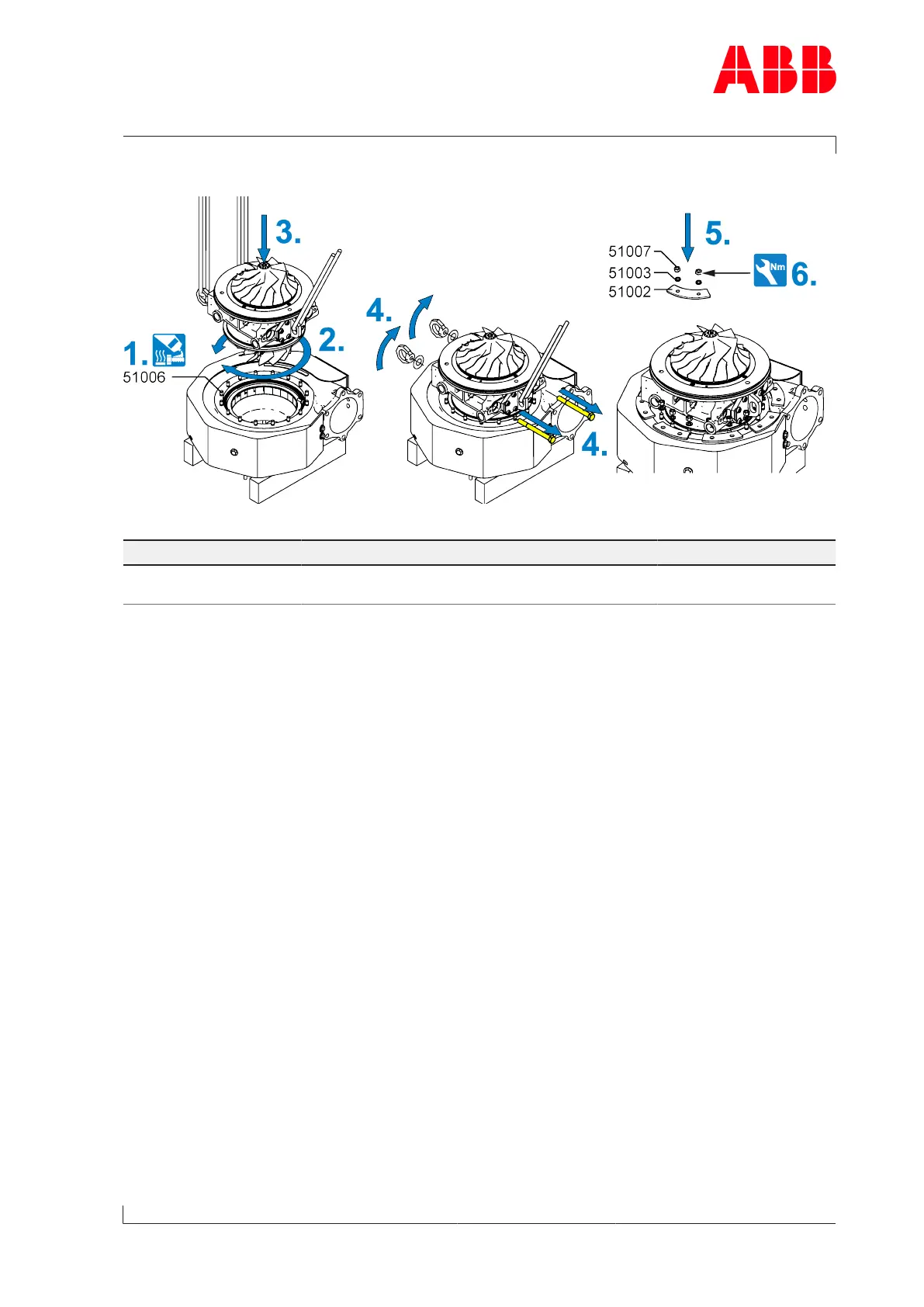

Fig.44: Installing the cartridge group
Part number A130 A135 A140
51007 M8
25Nm
M10
45Nm
M12
75Nm
Table37: Tightening torque (51007)
1. Coat the threads of the studs(51006) with high-temperature grease.
2. Align the casing position of the cartridge group with the marking.
3. Lower the cartridge group into the turbine casing.
4. Remove ring nuts and screws.
5. Install the fastening strips(51002) with Verbus Ripp®discs(51003) and hexagon
nuts(51007).
6. Tighten the hexagon nuts(51007).
Page 75 / 91
