Operation Manual / 4 Product description / A130-H.. - A140-H
2 Removing and Installing / 2.3 Installing the turbocharger
© Copyright 2017 ABB. All rights reserved. HZTL4030_EN Revision D May 2017
2.3.2 Fitting threaded rods

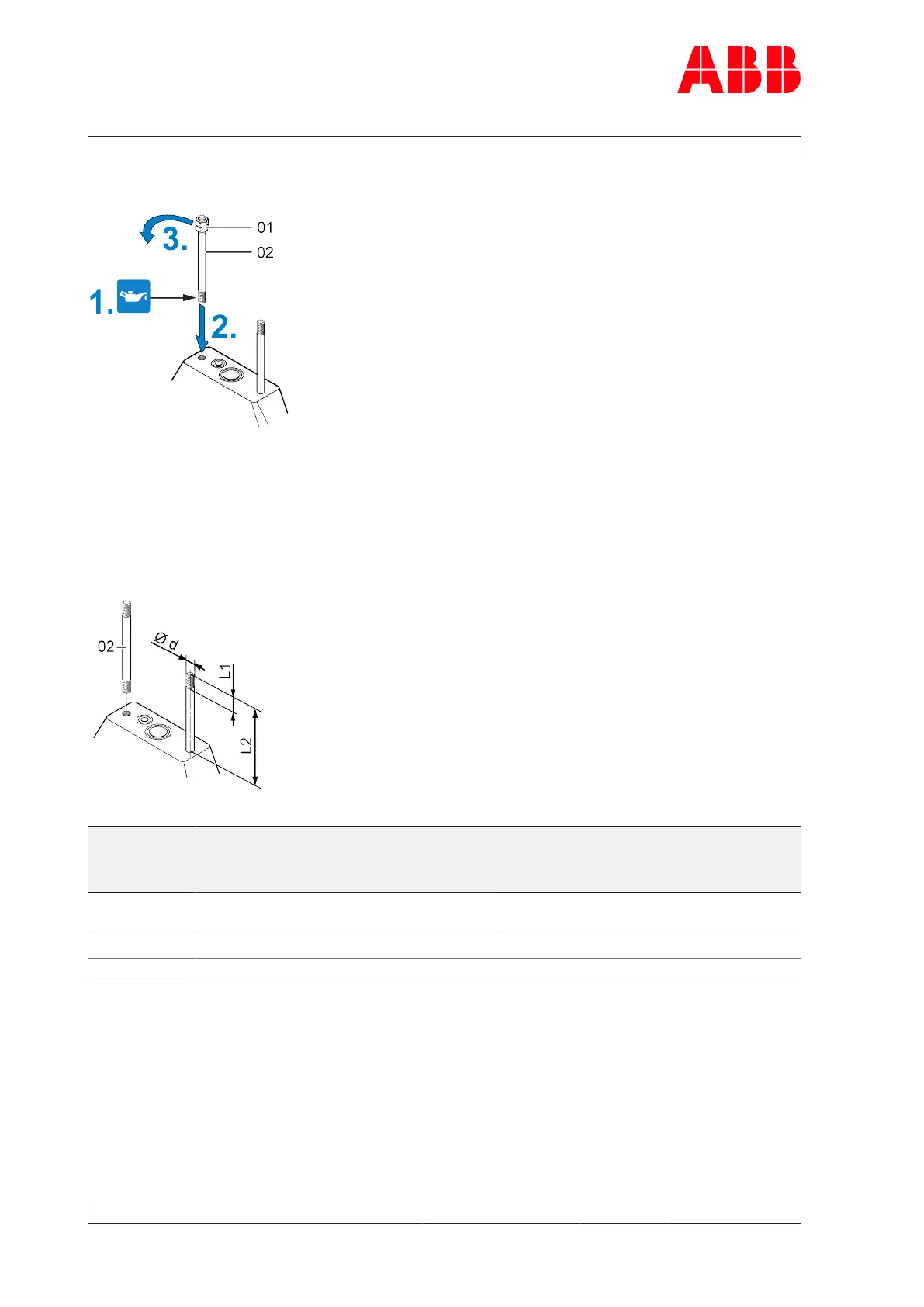

Fig.10: Inserting the threaded rods
1. Lightly oil the surfaces of the threaded rods (02) to be screwed in.
2. Screw the threaded rods into the bracket with the aid of locknuts (01).
3. Remove nuts(01) again.
Requirements for the threaded rods
Fig.11: Requirements for threaded rods
Product Diameter
Threaded rod
[mm]
Material
DIN / ISO 898
(Part 1)
Thread
length
L1[mm]
Length of threaded rod
L2 [mm]
A130 Ø 16 / M16 10.9 / 12.9 ≥ 30 250
A135 Ø 20 / M20 10.9 / 12.9 ≥ 30 325
A140 Ø 24 / M24 10.9 / 12.9 ≥ 70 410 … 420
Table3: Requirements for threaded rods
Fastening material, scope of delivery
The threaded rods and nuts for fastening the turbocharger on the bracket are not included
in the ABB Turbo Systems scope of delivery.
The clamping nuts are included in the ABB Turbo Systems scope of delivery.
Page 14 / 91
