Operation Manual / 4 Product description / A130-H.. - A140-H
8 Dismantling and fitting / 8.15 Installing the compressor casing
© Copyright 2017 ABB. All rights reserved. HZTL4030_EN Revision D May 2017
Installing the compressor casing

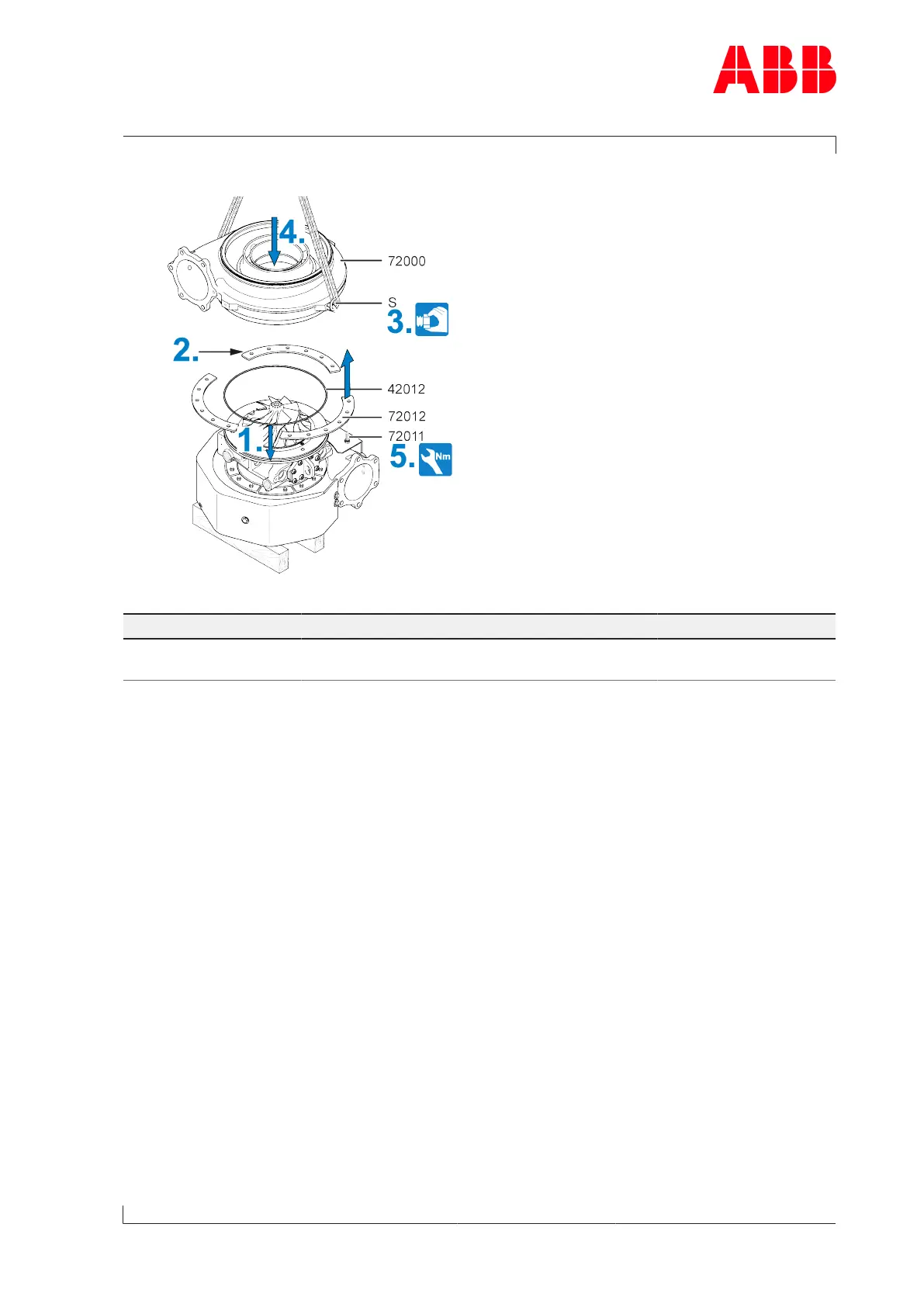

Fig.46: Installing the compressor casing
Part number A130 A135 A140
72011 M8
35Nm
M10
70Nm
M12
105Nm
Table39: Tightening torque (72011)
1. Fit a new, high temperature-resisting O-ring (42012, red or green) (see chapter Required
customer spare part set (97070) →87).
2. Thoroughly clean the fastening strips(72012) before assembly.
3. Attach swivel lifting eyes (01) to the compressor casing (72000) and lifting gear.
4. Install the compressor casing(72000).
5. Install the fastening strips(72012) with screws(72011).
Page 77 / 91
