Operation Manual / 4 Product description / A130-H.. - A140-H
3 Commissioning / 3.1 Oil supply
© Copyright 2017 ABB. All rights reserved.
HZTL4030_EN
Revision D
May 2017
3.1.5
Oil orifice in the bearing casing

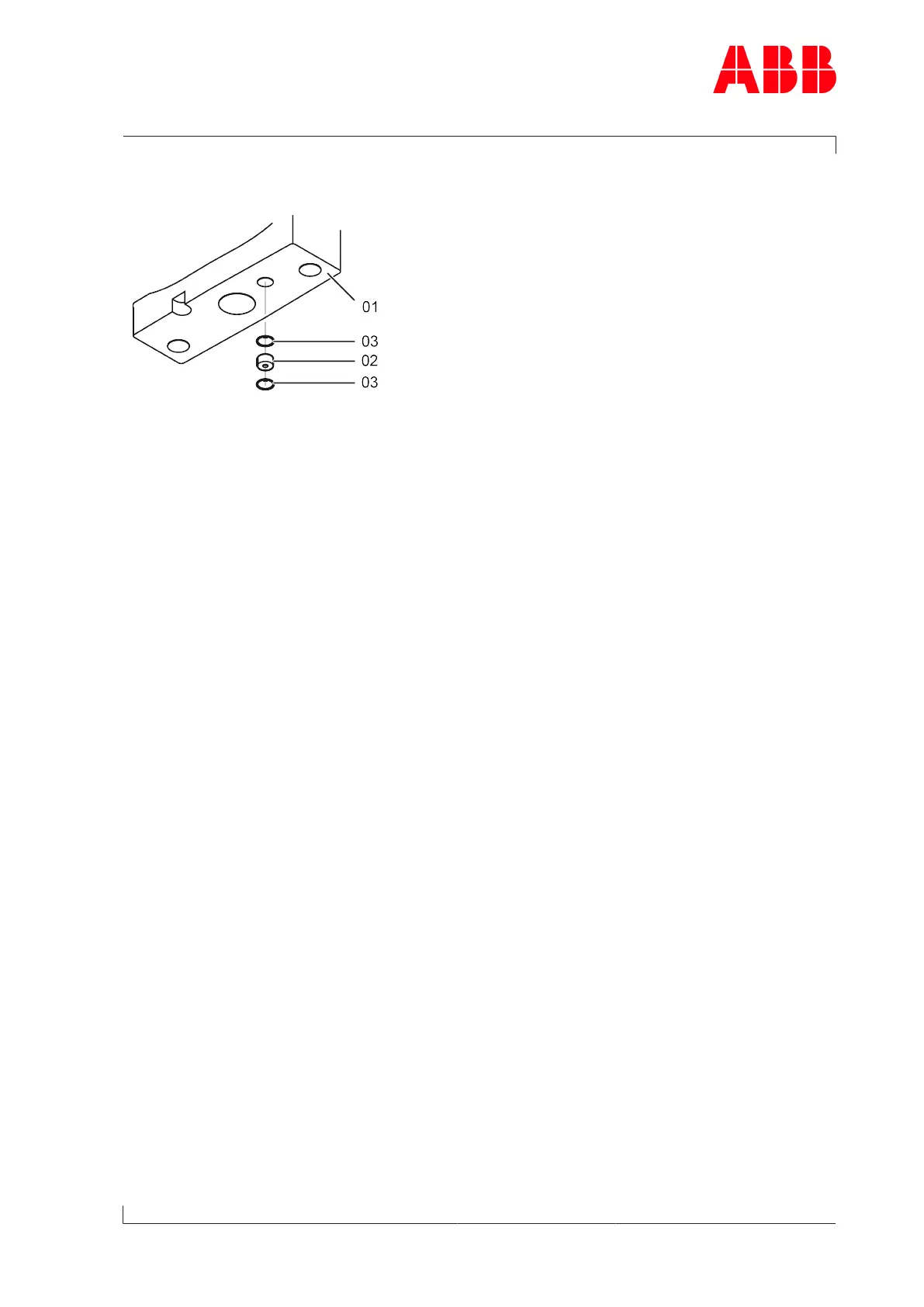

Fig.17: Oil orifice
01
Bearing casing
02
Oil orifice
03
Circlip
With an oil inlet pressure of more than 3 bar (with engine under load) before the turbochar-
ger, the bearing casings are equipped as standard with an orifice at the oil inlet.
