Operation Manual / 4 Product description / A130-H.. - A140-H

8 Dismantling and fitting / 8.12 Nozzle ring compression PD

8.12 Nozzle ring compression PD

For the nozzle ring (56001) to be fixed during operation, it must be clamped between the

heat shield (42400) and the turbine casing (51000).

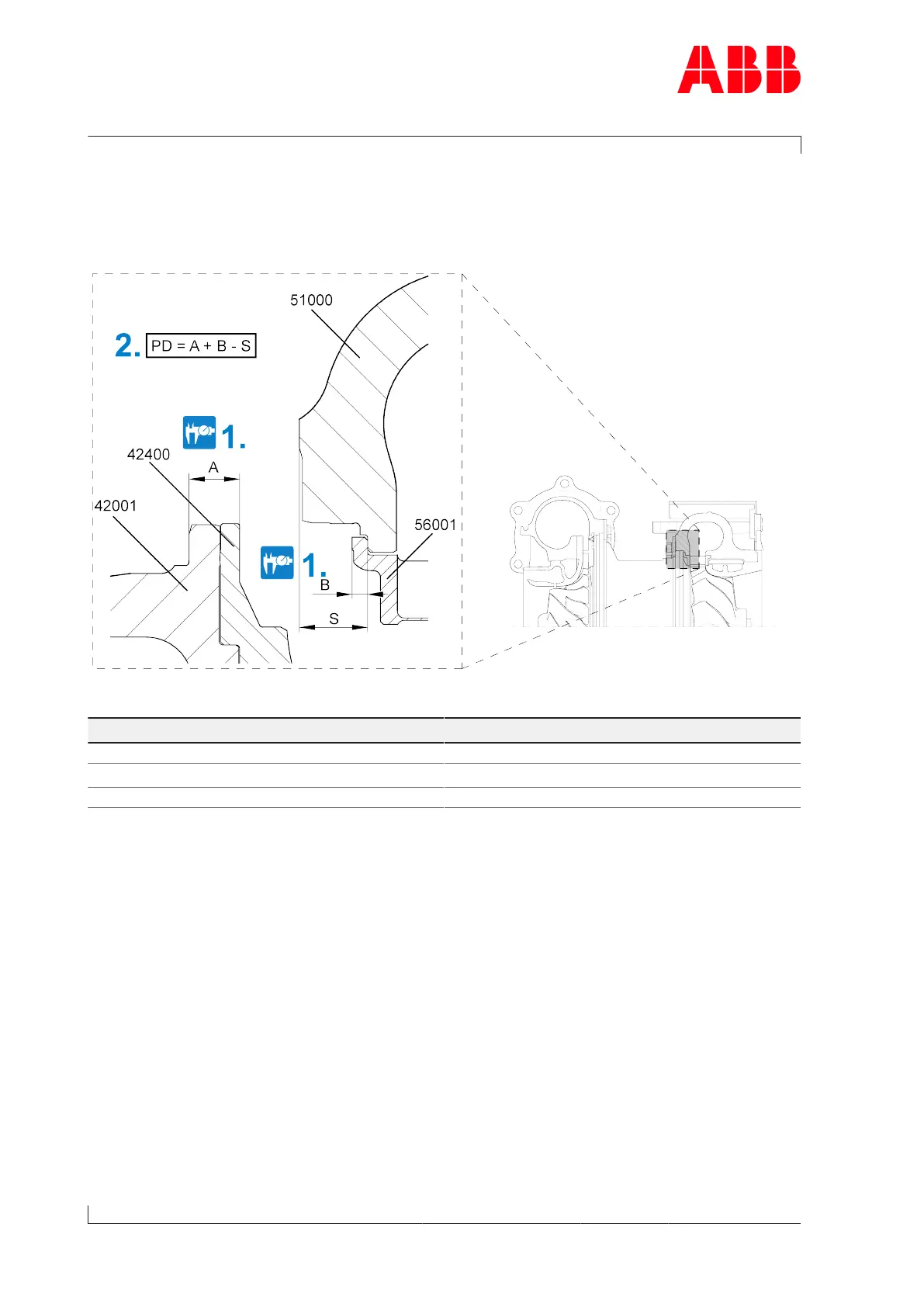

Fig.40: Nozzle ring compression PD

Product Compression PD [mm]

A130 -0.15 ... 0.15

A135 -0.16 ... 0.16

A140 -0.16 ... 0.16

Table35: Permitted nozzle ring compression PD

42001 Bearing casing 51000 Turbine casing

42400 Heat shield 56001 Nozzle ring

1. Measure dimensions A, B, and S on cleaned surfaces.

2. Calculate compression (PD).

u If the calculated value (PD) lies outside the specified range, contact an ABB Turbochar-

ging Service Station.

Page 72 / 91
