Operation Manual / 4 Product description / A130-H.. - A140-H
1 Introduction / 1.4 Layout and function of the turbocharger
© Copyright 2017 ABB. All rights reserved. HZTL4030_EN Revision D May 2017
1.4 Layout and function of the turbocharger

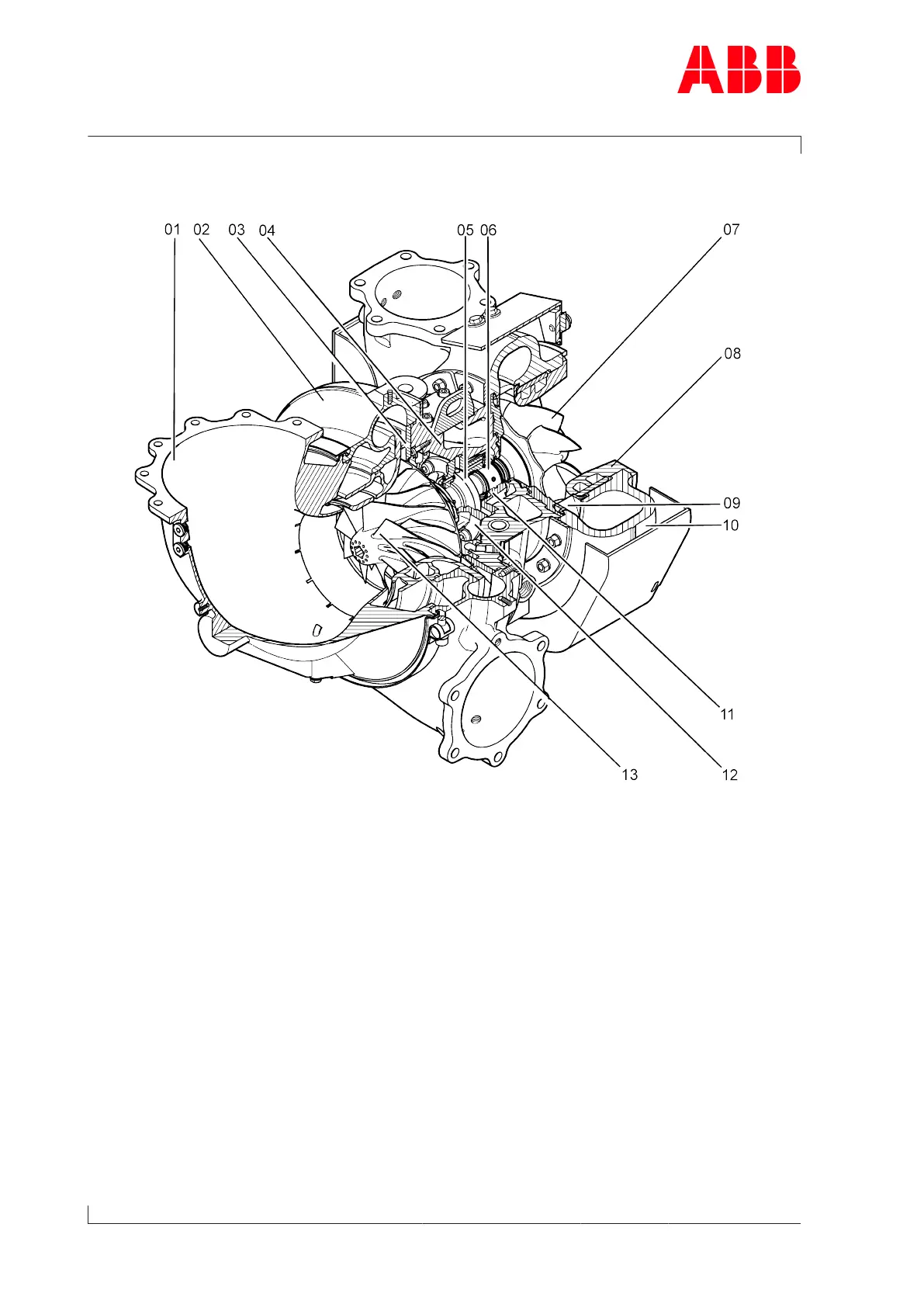

Fig.1: Layout and function of the turbocharger
01 Air suction branch 08 Gas outlet flange
02 Compressor casing 09 Nozzle ring
03 Diffuser 10 Turbine casing
04 Bearing casing 11 Turbine-end bearing flange
05 Axial thrust bearing 12 Compressor-end bearing flange
06 Radial plain bearing 13 Compressor wheel
07 Turbine
Page 4 / 91
