Operation Manual / 4 Product description / A130-H.. - A140-H
2 Removing and Installing / 2.3 Installing the turbocharger
© Copyright 2017 ABB. All rights reserved. HZTL4030_EN Revision D May 2017
2.3.6 Connecting the turbocharger
u Connect the cable to the speed sensor (86515).
u Connect all exhaust gas, water and air lines according to the instructions of the engineb-
uilder.
Version with compressor wheel cooling
CAUTION
Failure of compressor wheel cooling
Any prolonged failure of the compressor wheel cooling will shorten the re-
placement interval of the compressor wheel.
u Make sure there is an uninterrupted supply of cooling air during opera-
tion.

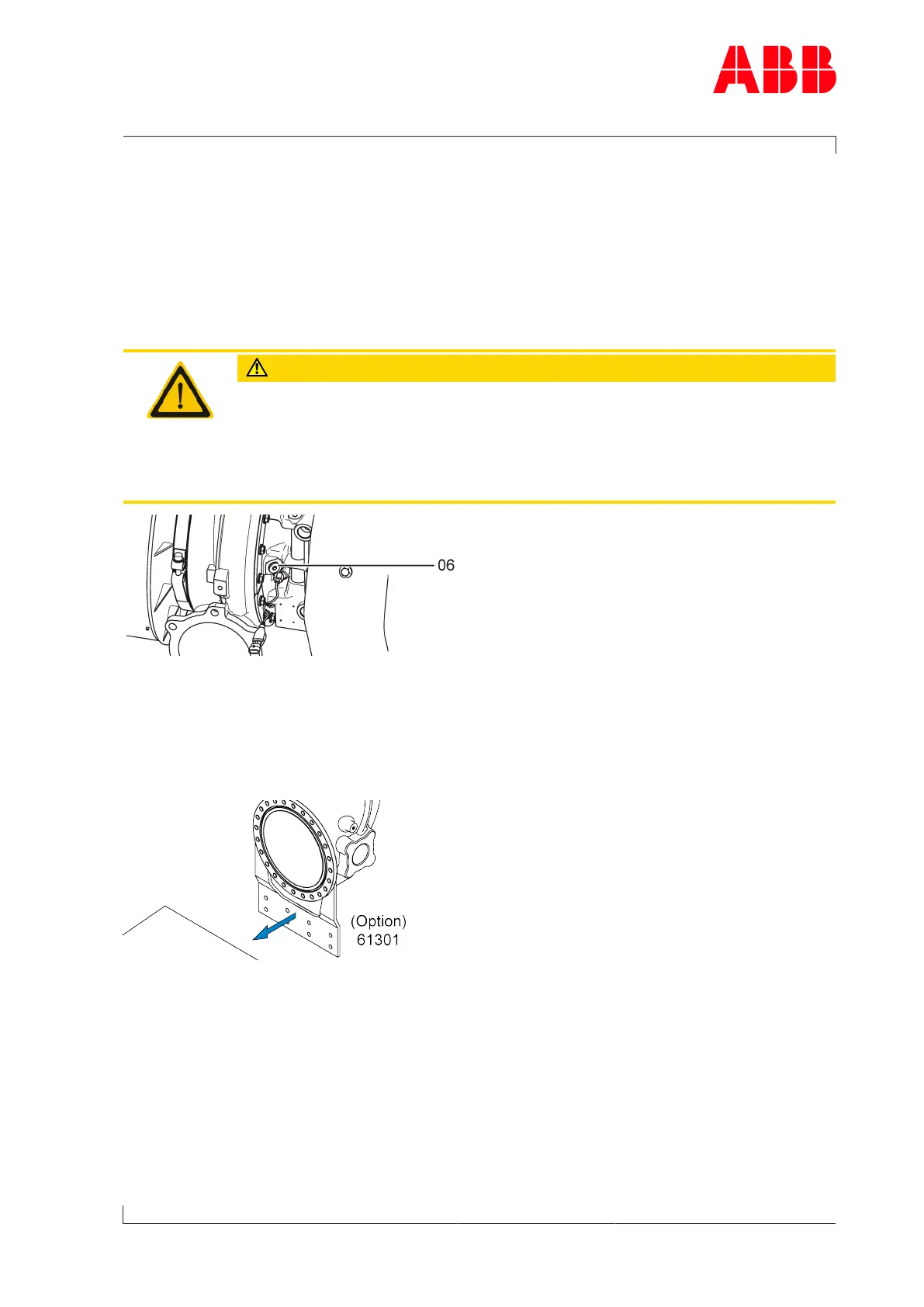

Fig.15: Connecting the compressor cooling air intake
u Remove the screw plug on the connection for the compressor wheel cooling (06) and fit
the cooling air line.
2.3.7 Attaching the support
Fig.16: Attaching the support
u If present: Attach support (61301) to engine support or to a connecting piece.
Page 19 / 91
