¡ Assembly device
Devices that are fitted on the turbocharger in order to obtain a suspension point. As-
sembly devices are specially constructed and designed for the defined use; they are not
commercially available products. Use assembly devices only for the described applica-
tions.
¡ Lifting gear
Equipment for the lifting and transporting of loads (ropes, chain block, crane). Lifting
gear is not supplied by ABB.

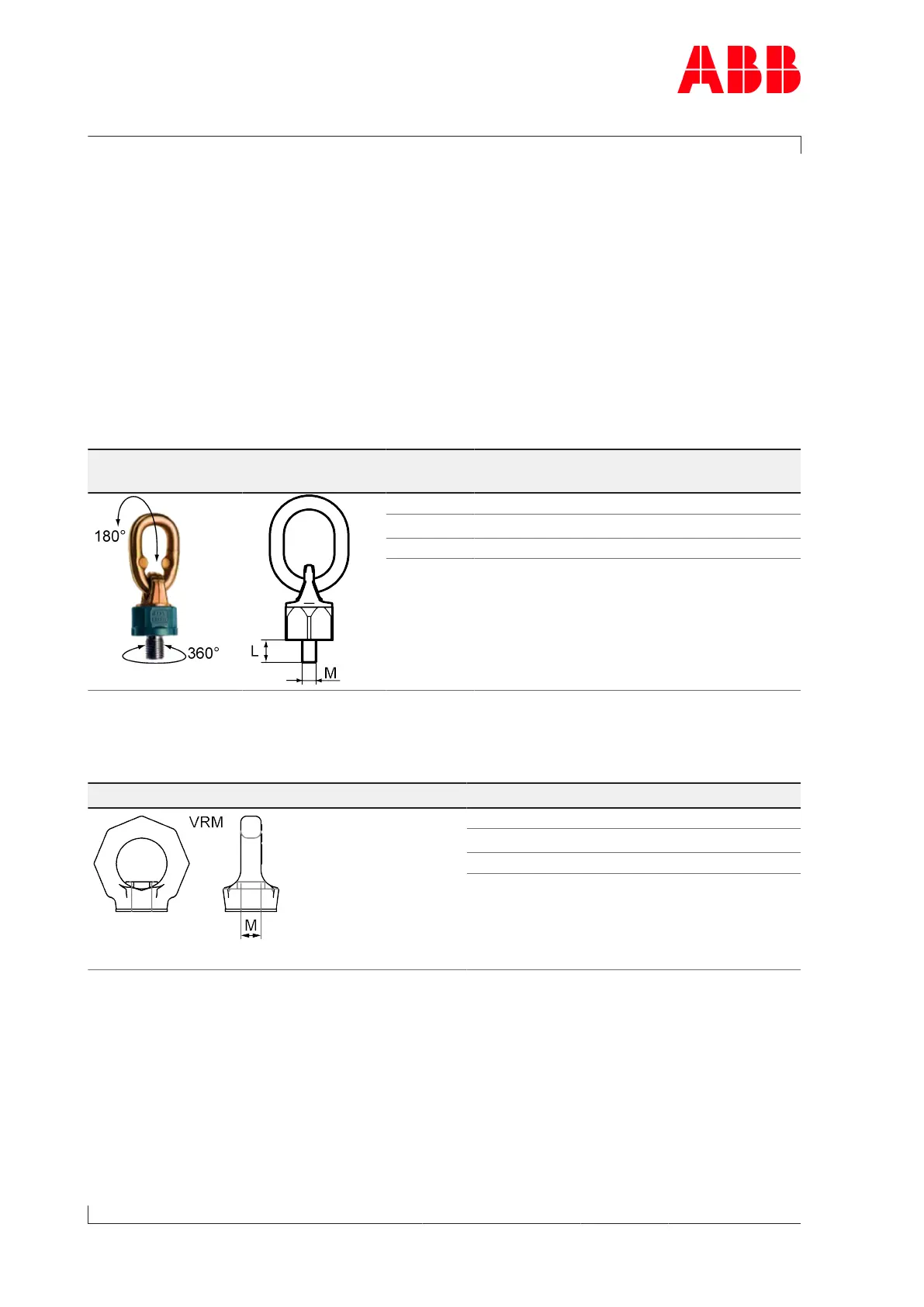

Swivel lifting eyes to be used
Two swivel lifting eyes are required for the safe lifting of loads, these are not supplied by
ABB Turbo Systems.
Swivel lifting eyes Product Thread
M
Length
L
Minimum
load limit
Quant-
ity
A130 M10 17 mm 100 kg 2
A135 M10 17 mm 150 kg 2
A140 M12 21 mm 250 kg 2
Table29: Swivel lifting eyes
Two ring nuts are required for safer lifting of the cartridge group, which are not included in
the ABB Turbo Systems scope of delivery.
Ring nuts to be used (VRM) Product Thread
Starpoint ring nut VRM
A130 M16
A135 M16
A140 M16
Table30: Ring nuts to be used
