ABB A130-H57 - Installing Air Inlets; Fig. 48: Installing the Air Inlets; Table 41: Tightening Torque (72020)

Operation Manual / 4 Product description / A130-H.. - A140-H
8 Dismantling and fitting / 8.17 Installing air inlets
© Copyright 2017 ABB. All rights reserved. HZTL4030_EN Revision D May 2017
8.17 Installing air inlets

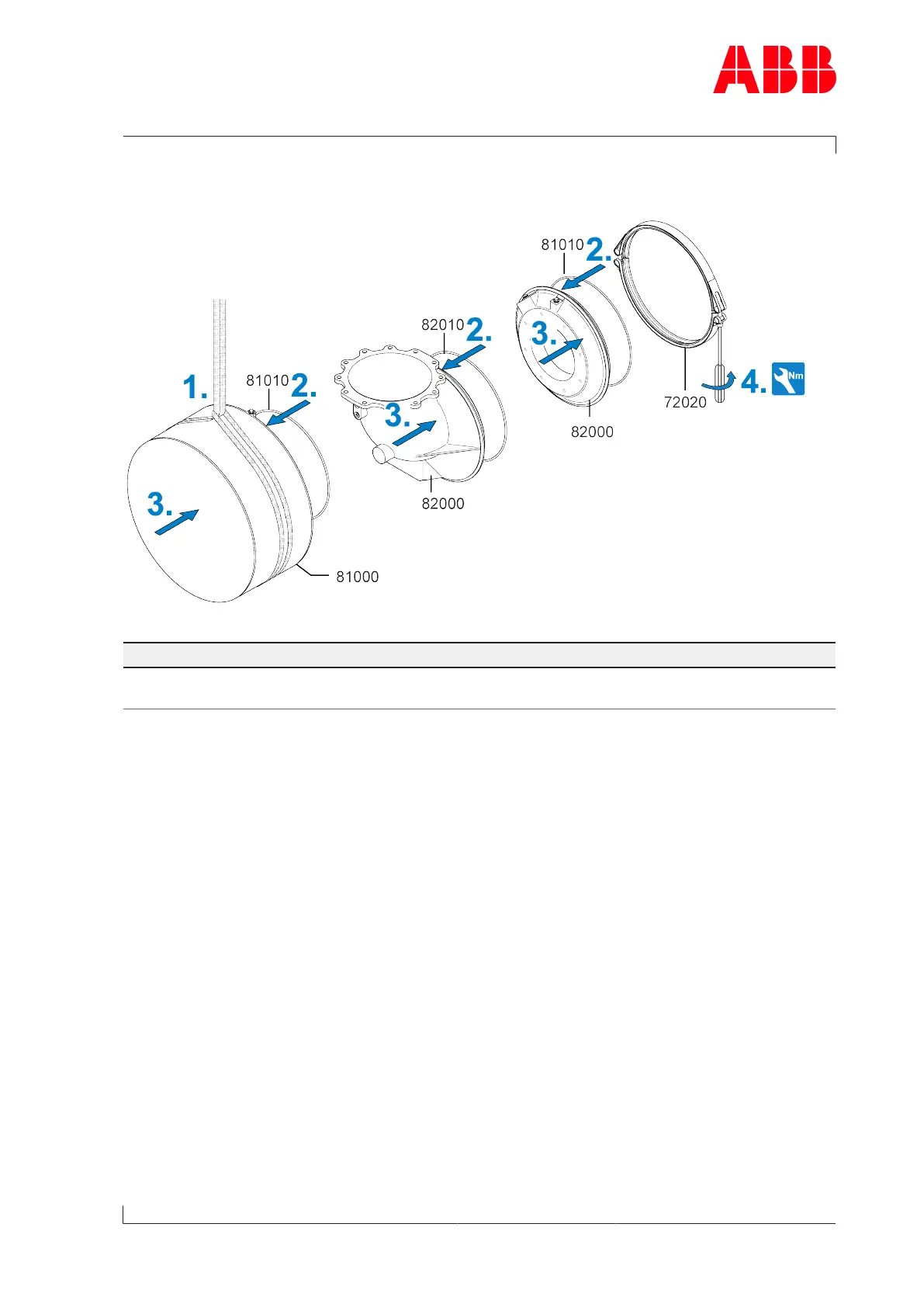

Fig.48: Installing the air inlets
Part number A130 A135 A140
72020 M12
60Nm
M12
60Nm
M12
60Nm
Table41: Tightening torque (72020)
1. Secure lifting gear to filter silencer (81000).
2. Fit a new O-ring (81010) to the filter silencer (81000) or a new O-ring (82010) to the air
suction branch (82000).
3. Fit the filter silencer (81000) or air suction branch (82000) with the V-clamp (72020).
4. Observe the tightening torque.
