5. Fit the hexagon nuts(51009). Observe the tightening torque.
8.20 Table of tightening torques

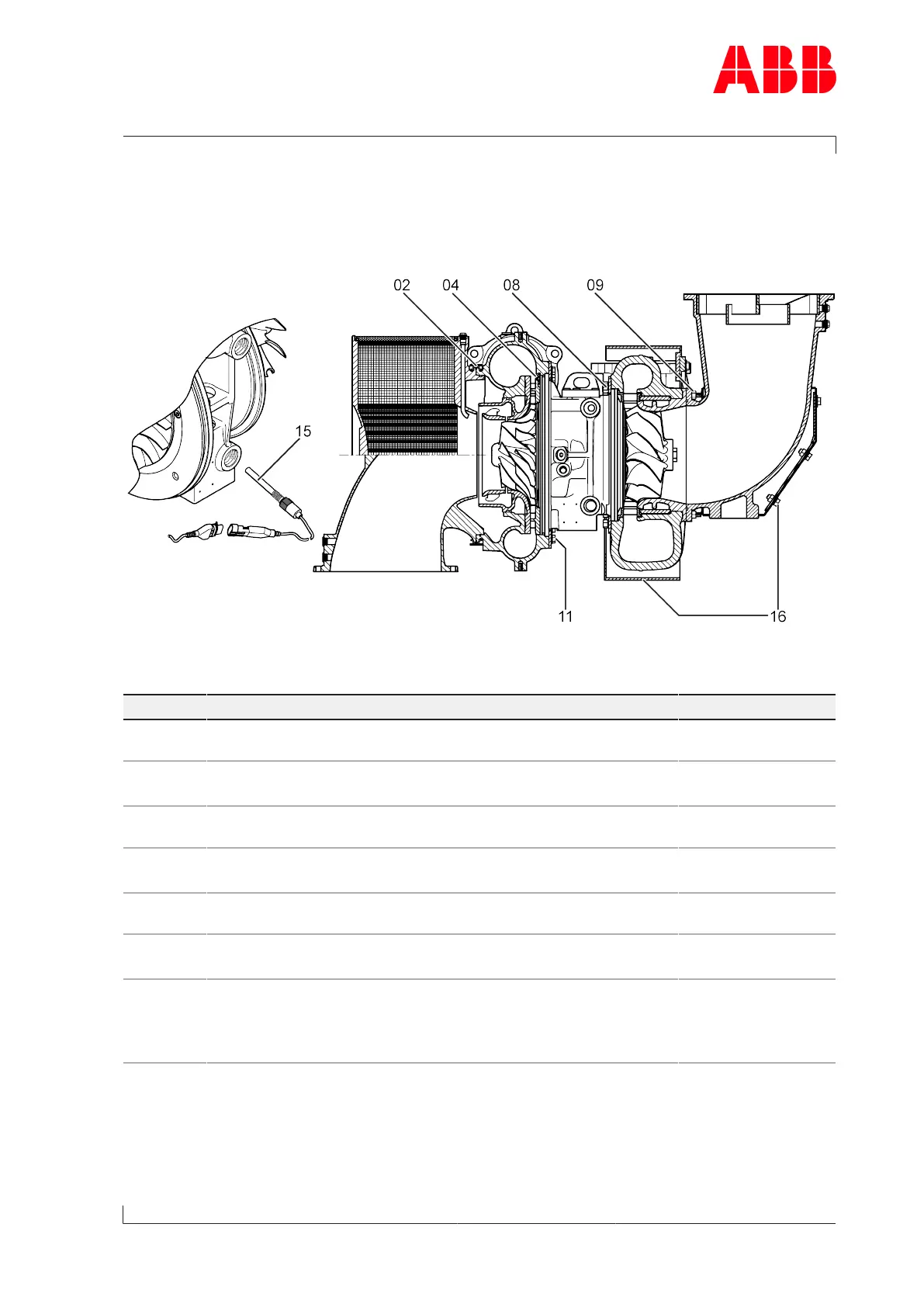

Fig.51: Tightening torques
The following tightening torques must be observed for the designated screw fittings:
Position Part number A130 A135 A140
02 72020 M12
60Nm
M12
60Nm
M12
60Nm
04 79041 M6
8Nm
M6
8Nm
M6
8Nm
08 51007 M8
25Nm
M10
45Nm
M12
75Nm
09 51009 M8
20Nm
M10
40Nm
M12
65Nm
11 72011 M8
35Nm
M10
70Nm
M12
105Nm
15 86505 M12 x 1.5
15Nm
M12 x 1.5
15Nm
M12 x 1.5
15Nm
16 51101 /
51103 /
51104 /
61201
M8
20Nm
M8
20Nm
M10
40Nm
Table43: Tightening torques of the screw fittings
