Operation Manual / 4 Product description / A130-H.. - A140-H
12 Spare parts / 12.3 View of turbocharger with part numbers
© Copyright 2017 ABB. All rights reserved.
HZTL4030_EN
Revision D
May 2017
12.3

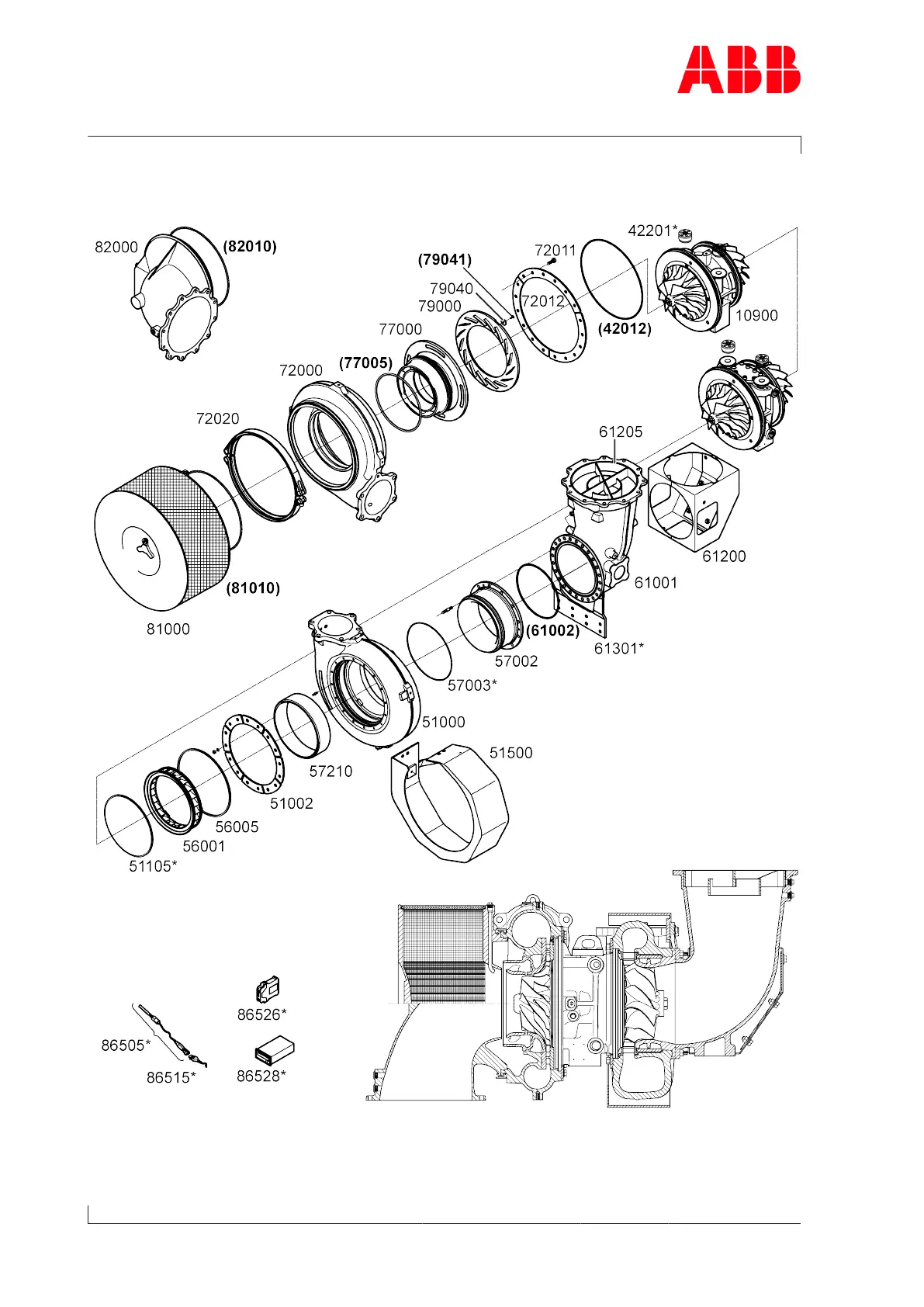

View of turbocharger with part numbers
Fig.52: Overview of part numbers
(……)
only available in customer spare part set (97070).
Page 88 / 91
