ACS2000 User manual 2UEA001270 Rev. F 1-5 (12)
Chapter 1 - Safety
1.4.1.2 Label location
Figures 1-2 and 1-3 indicate the placement of safety labels on the drive.

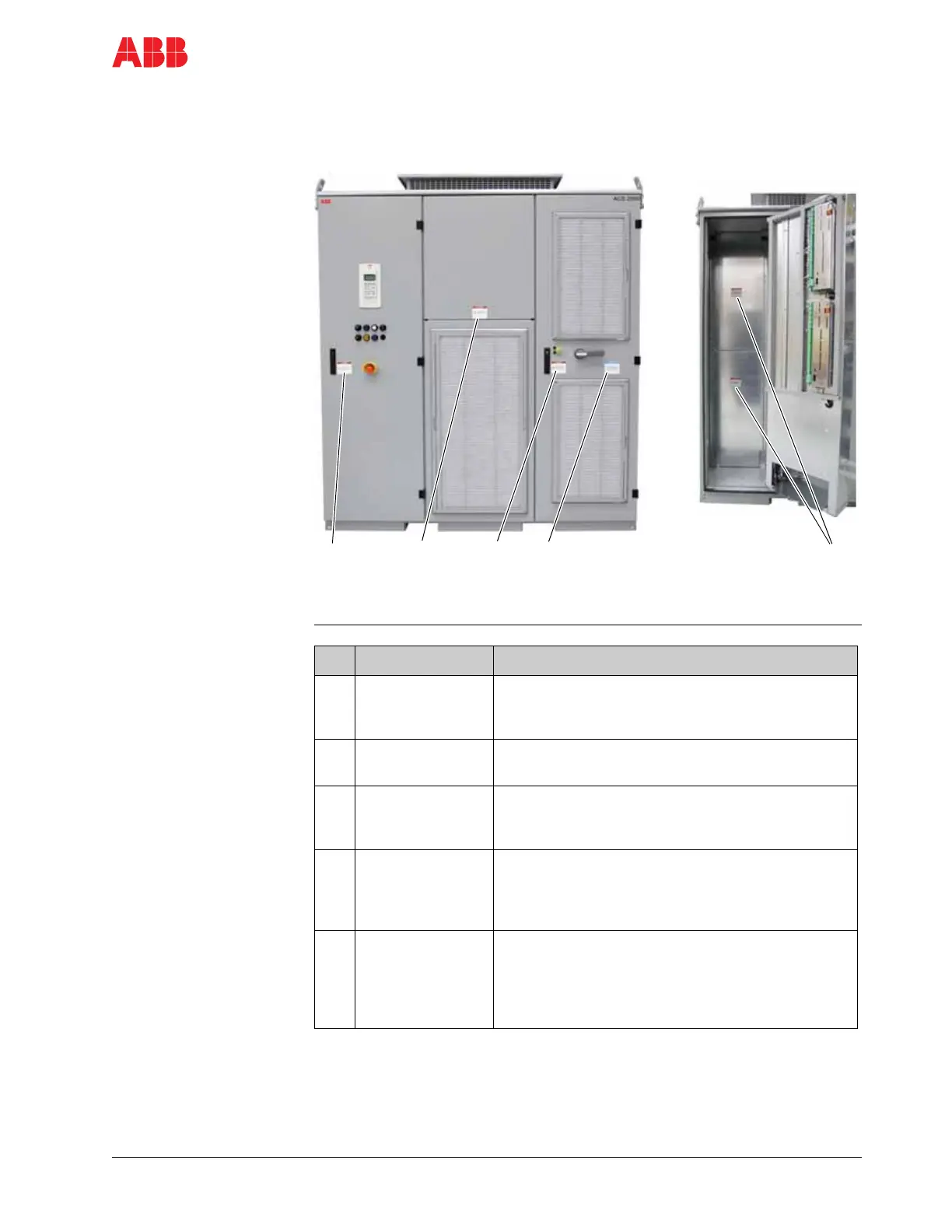

Figure 1-2 Front of unit label locations
Legend
Item Label Number Label Description
1
2UEA001524T00XX Danger – Risk of Electric Shock. More than one
disconnect switch may be required to de-energize
equipment before servicing.
2
2UEA001528T00XX Danger – HIGH VOLTAGE Unauthorized Persons KEEP
OUT
3
2UEA001525T00XX Danger – Risk of Electric Shock. Disconnect power, allow
7 minutes for capacitors to discharge and ground
equipment before opening door.
4
2UEA001634T00XX Notice – Ground Switch is locked when the “GROUND
SW RELEASED” pilot light is OFF. To ground equipment,
the pilot light must be ON before rotating the handle to
grounded (O) position.
5
2UEA001526T00XX Danger – This Equipment does not provide isolation.
Separate isolating means required. See Section 6.1.1
Isolating means (MV Switchgear) and Appendix G - MV
switchgear guide, located on the CD, for additional
information.
1
4
23
5
