Operation principle and hardware description
26
Diagram

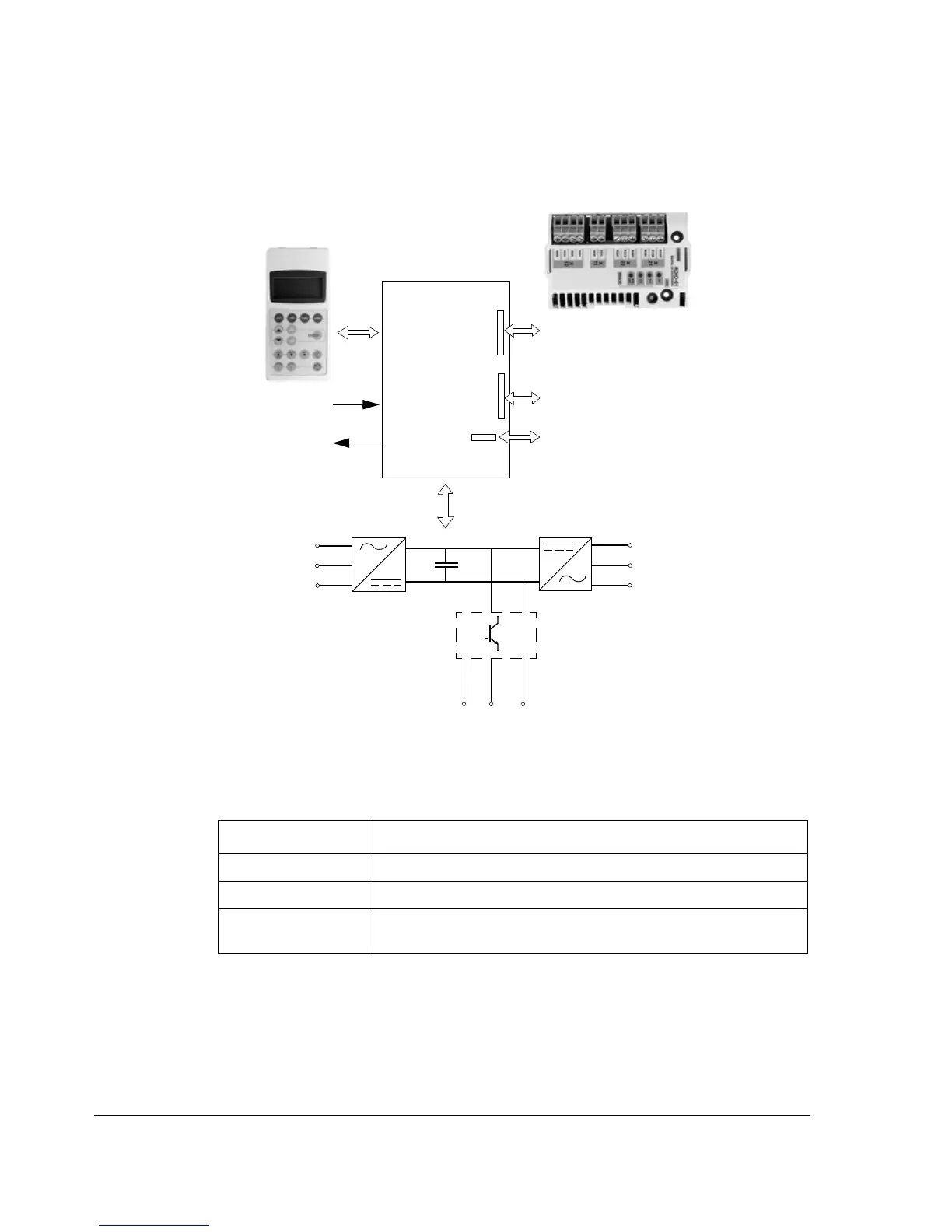

This diagram shows the control interfaces and the main circuit of the drive.
Operation
This table describes the operation of the main circuit in short.
Component Description
six-pulse rectifier converts the three-phase AC voltage to DC voltage
capacitor bank energy storage which stabilizes the intermediate circuit DC voltage
six-pulse IGBT inverter converts the DC voltage to AC voltage and vice versa. The motor
operation is controlled by switching the IGBTs.
~
=
~
=
Motor
control and
I/O board
(RMIO)
External control via
analogue/digital
inputs and outputs
Input power
Output power
R- UDC+ UDC-
R+
Optional module 1: RMBA, RAIO,
RDIO, RDNA, RLON, RPBA, RCAN,
RCNA, RETA, RRIA or RTAC
Optional module 2: RTAC, RAIO, RRIA
or RDIO
DDCS communication option module:
RDCO-01, RDCO-02 or RDCO-03
Brake chopper (optional)
