Maintenance
89
Cabinet layout

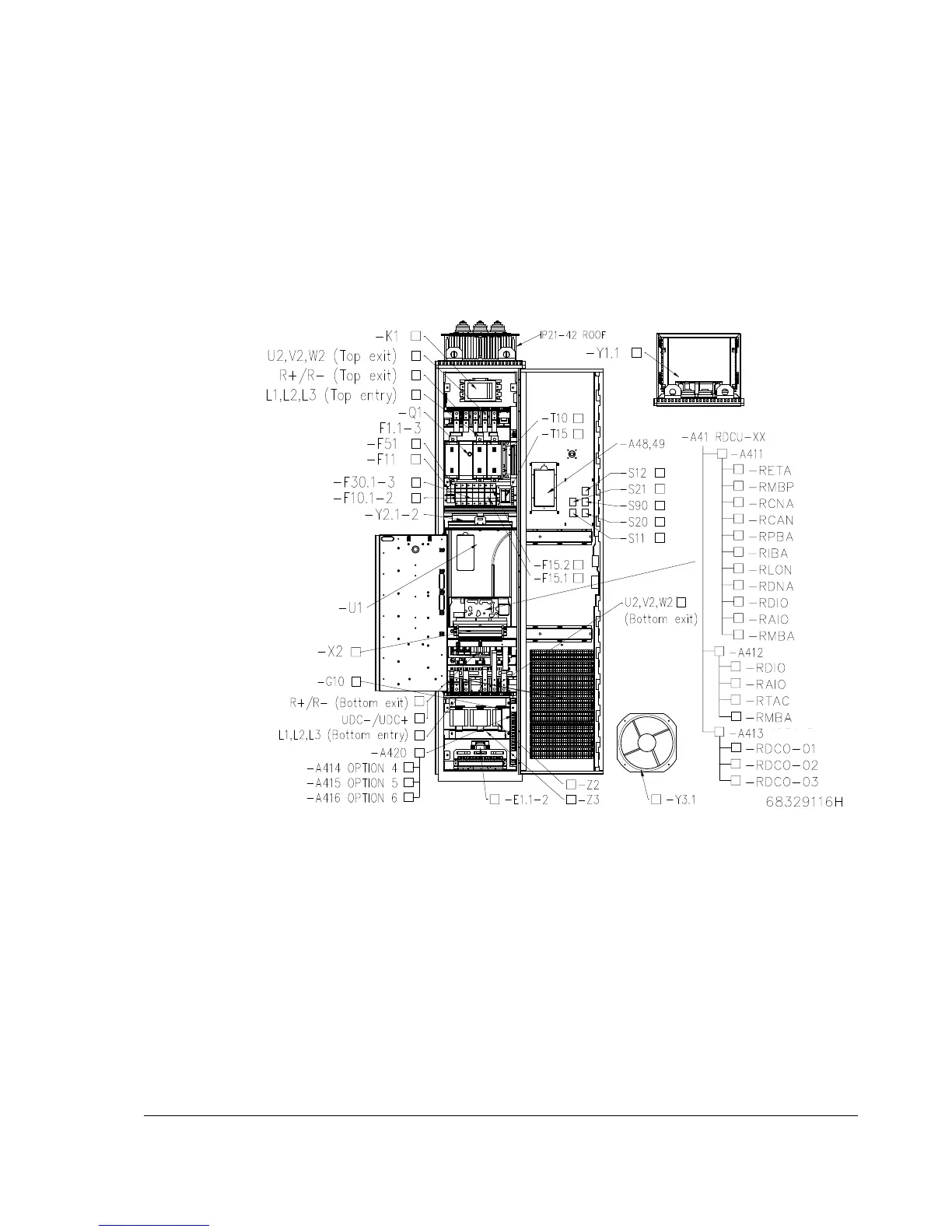

Cabinet layout stickers are shown below. The symbols are described under
Designations.
Frame sizes R5 and R6
The options included are marked with x at the factory.
IP54 ROOF
OPTION 1
OPTION 2
OPTION 3
