ABB ACS800-U7 User Manual

Mechanical installation
29
Mechanical installation
What this chapter contains
This chapter describes the mechanical installation procedure of the drive.

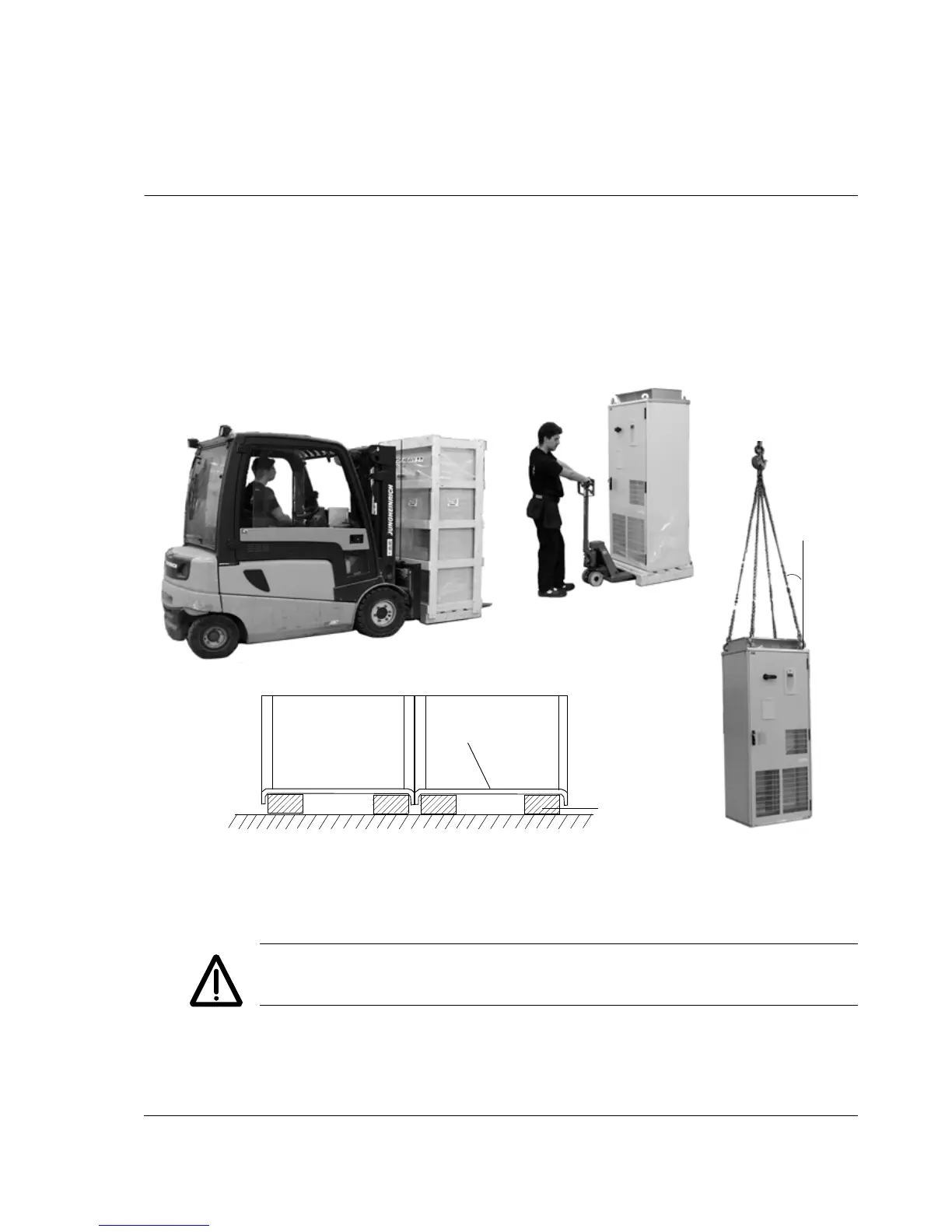

Moving the unit
Move the transport package by truck and pallet truck to the installation site.
WARNING! Lift the drive by the upper part only using the lifting lugs/bars attached to
the top of the unit.
M
a
x
3
0
°
Cabinet back panel
Support
View of cabinet laid on its back
It is allowed to tilt the drive if required, or move it on its back
when supported properly from below. Note: It is not allowed
to move a unit with sine filter (+E206) on its back.
