Mechanical installation
34

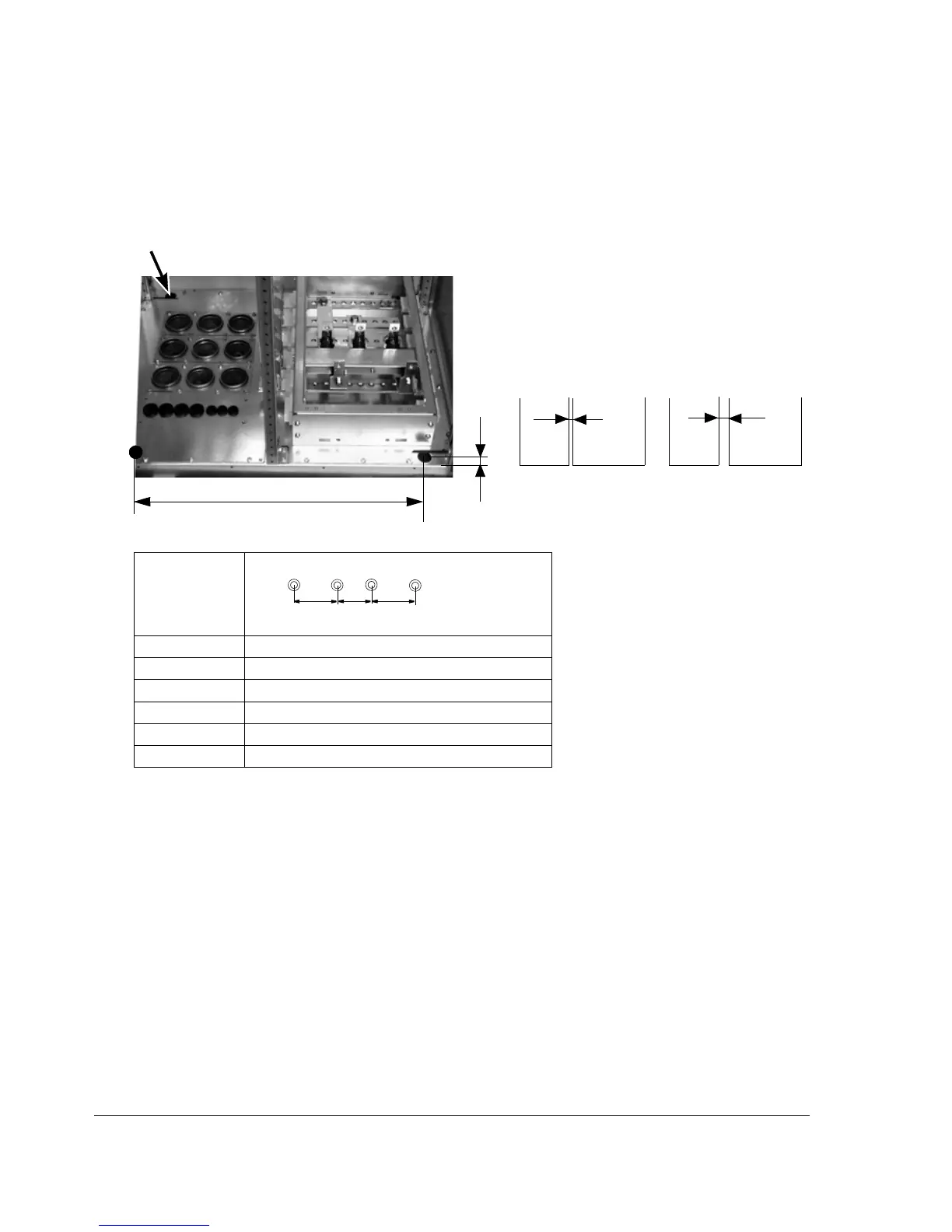

Fastening the cabinet through the holes inside the cabinet
The cabinet can be fastened to the floor using the fastening holes inside the cabinet,
if they are available and accessible. The maximum allowed distance between the
fastening points is 800 mm (31.50 in.).
a
1
0.5
IP54
IP20...42
Gap between the 200 mm, 400 mm, 600 mm,
800 mm, 1000 mm and 1500 mm cubicles:
25 [0.98]
Side plates of the cabinet: 15 mm
Back plate of the cabinet: 10 mm
Fastening bolt: M10 to M12 (3/8” to 1/2”).
Cubicle width
mm [in.]
Fastening hole distance in mm [in.]
200 [7.87] a: 50 [1.97]
400 [15.75] a: 250 [9.84]
600 [23.62] a: 450 [17.71]
800 [31.50] a: 650 [25.29]
1000 [39.37] a: 350 [13.78], b: 150 [5.91], a: 350 [13.78]
1200 [47.24] a: 450 [17.71], b: 150 [5.91], a: 450 [17.71]
