Mechanical installation
30
Before installation
Delivery check
The drive delivery contains:
• drive cabinet including factory installed options such as optional modules
(inserted onto the RMIO board in the RDCU unit)
• residual voltage warning stickers
• hardware manual
• appropriate firmware manuals and guides
• appropriate optional module manuals
• delivery documents.
Check that there are no signs of damage. Before attempting installation and
operation, check the information on the type designation label of the drive to verify
that the unit is of the correct type. The label includes an IEC and NEMA rating, C-UL
US, and CSA markings, a type designation key and a serial number, which allow
individual recognition of each unit. The first digit of the serial number refers to the
manufacturing plant. The next four digits refer to the unit’s manufacturing year and
week respectively. The remaining digits complete the serial number so that there are
no two units with the same serial number.

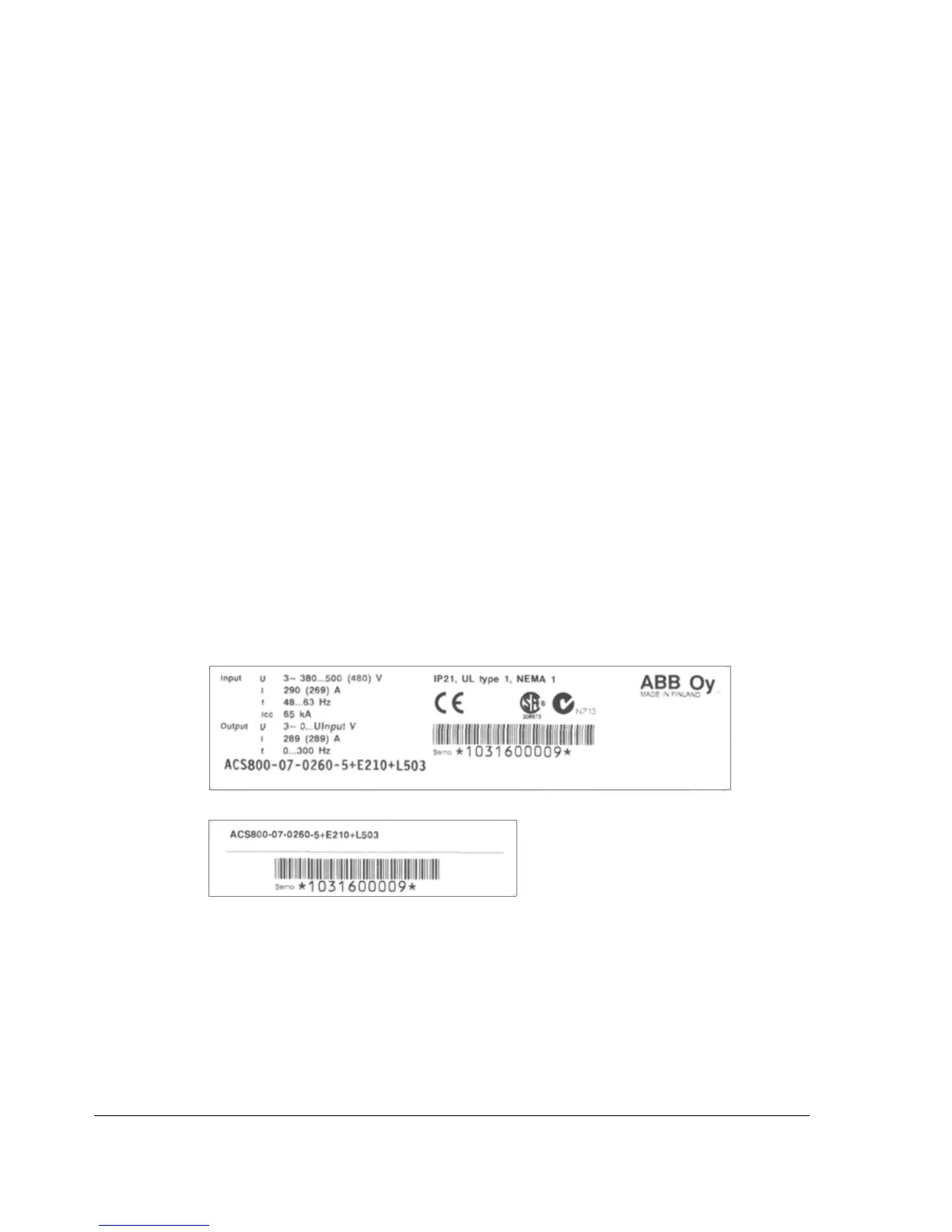

The type designation label is located on the front cover and the serial number label
inside the unit. Example labels are shown below.
Requirements for the installation site
Check the installation site according to the requirements below. See ACS800-07/U7
Dimensional Drawings [3AFE64775421 (English)] for frame details. See chapter
Technical data for the allowed operation conditions of the drive.
