The ACS850 control panel 45
Trying to load a user set between different firmware versions
If you try load a user set between different firmware versions, the panel shows you
the following fault information:

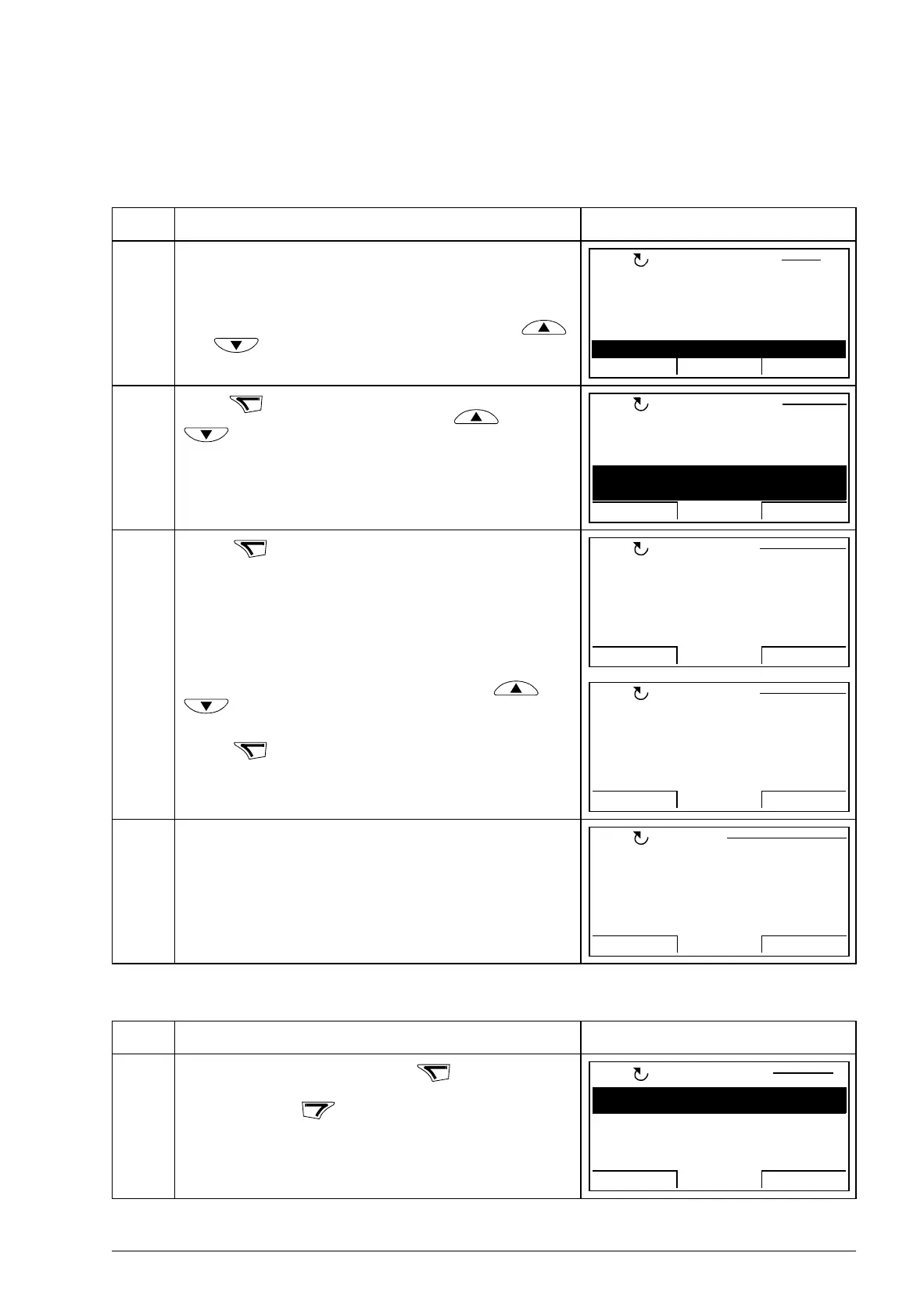

How to view information about the backup
Step Action Display
1. Go to the Parameters option by selecting PARAMETERS
on the main menu as shown in section Parameters on
page 25.
A user set is loaded through parameter 16.09 User set
sel. Select parameter group 16 System with keys
and .
2. Press to select parameter group 16. Select
parameter 16.09 User set sel with keys and
. Current value of each parameter is shown below
its name.
3. Press .
Select the user set you want to load with keys and
.
Press .
4. Panel shows a text identifying the fault.
Step Action Display
1. Go to the Main menu by pressing if you are in the
Output mode.
Otherwise press repeatedly until you get to the
Main menu.
EXIT SEL
00:00
12 Operating mode
13 Analogue inputs
14 Digital I/O
15 Analogue outputs
16 System
PAR GROUPS 16
LOC
SEL
1603 Pass code9901
1604 Param restore
1607 Param save
1609 User set sel
No request
PARAMETERS
EXIT
EDIT00:00
LOC
EDIT
1609 User set sel
PAR EDIT
No request
CANCEL SAVE
00:00
[1]
LOC
SAVE
1609 User set sel
PAR EDIT
Load set 1
CANCEL SAVE
00:00
[2]
LOC
FAULT 310
USERSET LOAD
FAULT
RESET EXIT
LOC
MENU
EXIT
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT ENTER
00:00
MAIN MENU 1
LOC
